Torque Converter Assembly Removal

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

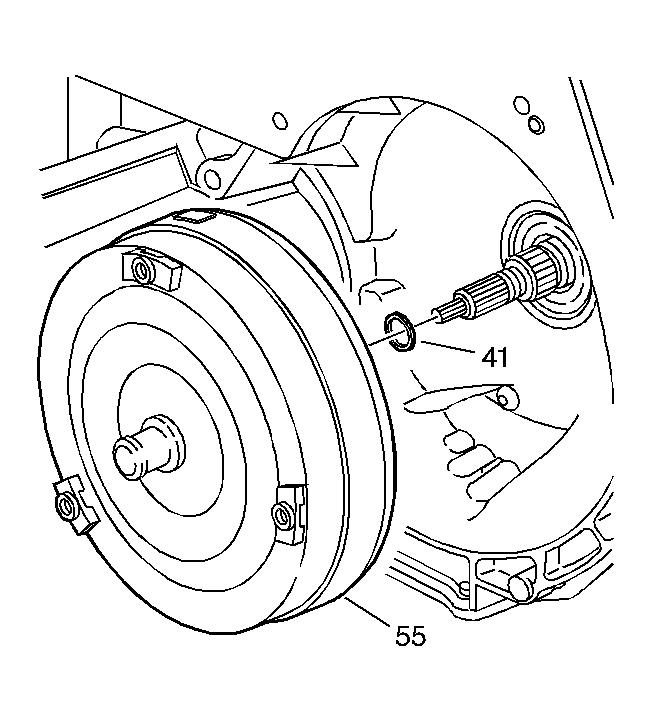

Fig 1: View Of Turbine Shaft O-Ring

Courtesy of GENERAL MOTORS CORP.

WARNING: The torque converter weighs approximately 65 lbs. Personal injury may result if you lift the torque converter improperly.

Remove the torque converter assembly (55).
Remove the turbine shaft 0-ring (41) from the end of the turbine shaft.
