Oil Pump Assembly Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Oil Pump Shaft & Oil Pump Assembly

Courtesy of GENERAL MOTORS CORP.

Install the oil pump shaft (19) into the oil pump assembly (10).
Install the oil pump assembly (10) and the oil pump shaft (19) onto the control valve body.

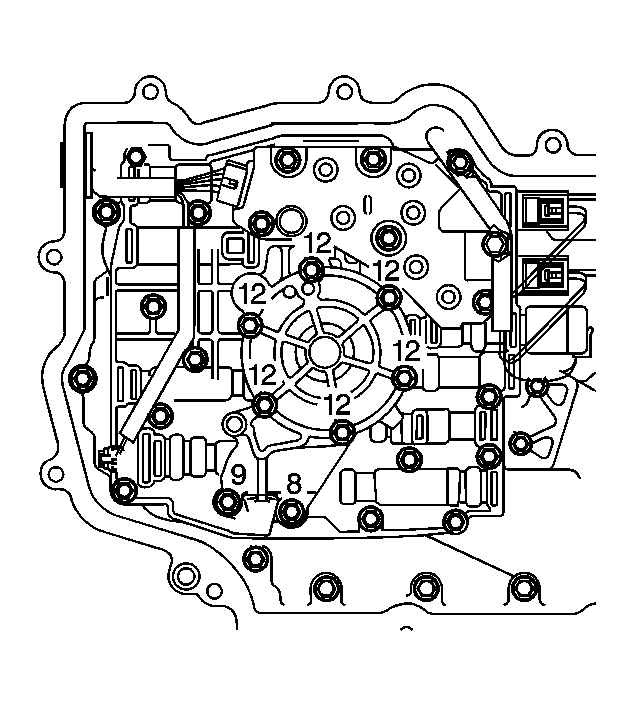

Fig 2: Identifying Oil Pump Bolts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the eight oil pump bolts (8, 9, 12). Hand start the bolts. Tighten the bolts to 12 N.m (9 lb ft).
