Driven Sprocket Support Assembly Removal

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

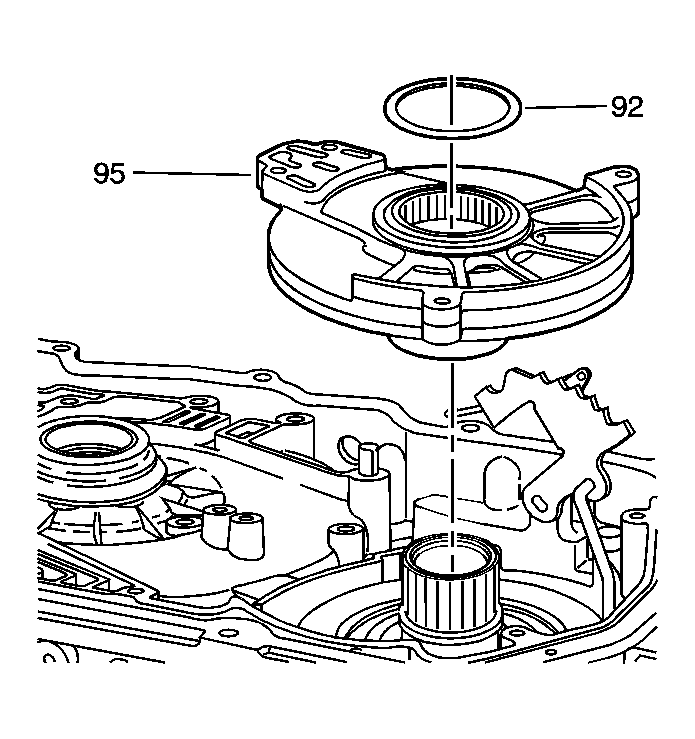

    Fig 1: Driven Sprocket Support Assembly
    GM1644726Courtesy of GENERAL MOTORS CORP.
  1. Remove the driven sprocket to driven sprocket support thrust washer (92).
  2. Remove the driven sprocket support assembly (95).
