Control Valve Assembly and Transmission Fluid Pressure Switch Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing & Installing Control Valve Body Assembly

Courtesy of GENERAL MOTORS CORP.

Install the control valve body assembly (18) onto the spacer plate with bonded gaskets (90).

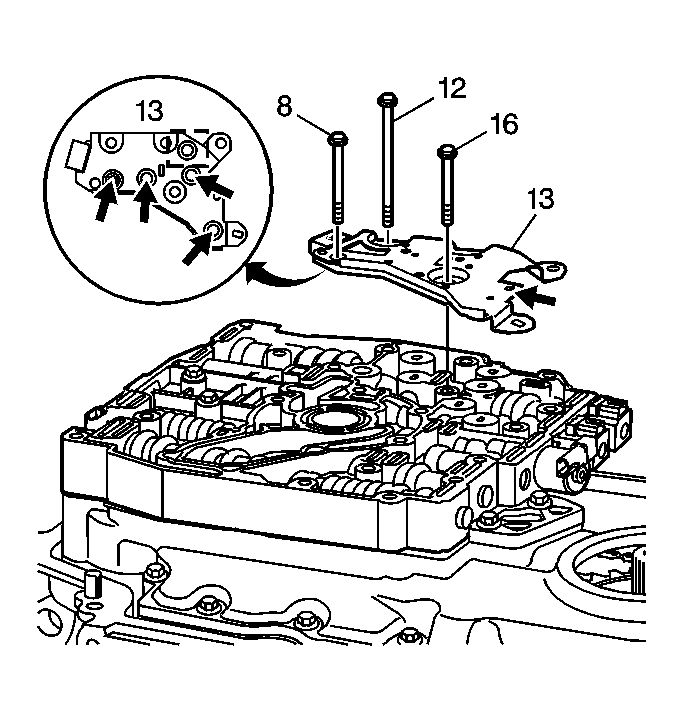

Fig 2: View Of TFP Switch And Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

Inspect the TFP switch assembly (13) in order to verify the condition and correct location of the pressure switch O-rings.
If necessary replace the pressure switch assembly (13).

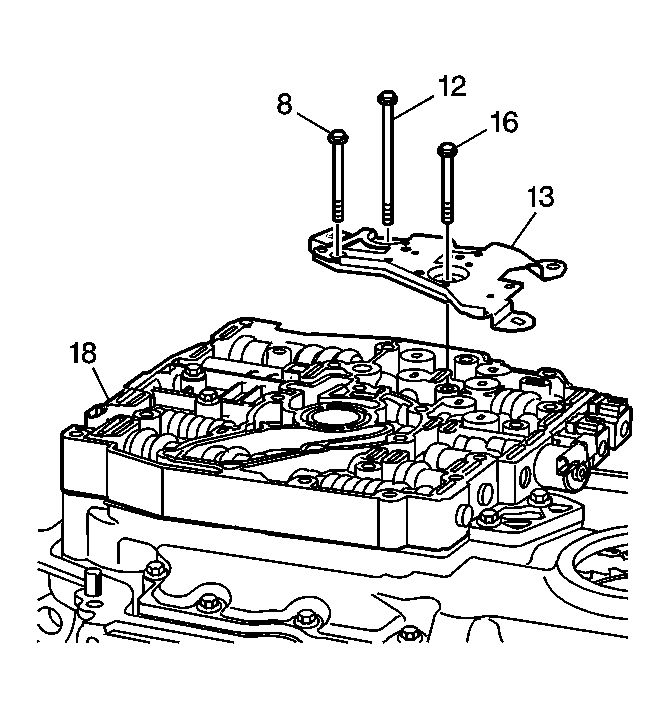

Fig 3: Locating TFP Switch Assembly

Courtesy of GENERAL MOTORS CORP.

Install the TFP switch assembly (13) onto the control valve body assembly.

Fig 4: Locating Control Valve Body Assembly Bolts

Courtesy of GENERAL MOTORS CORP.

Install the 18 control valve body assembly bolts.

Fig 5: View Of Control Valve Body Assembly Bolts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Hand start the bolts. Tighten the bolts to 14 N.m (124 lb in).
