Channel Plate Assembly Installation: Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

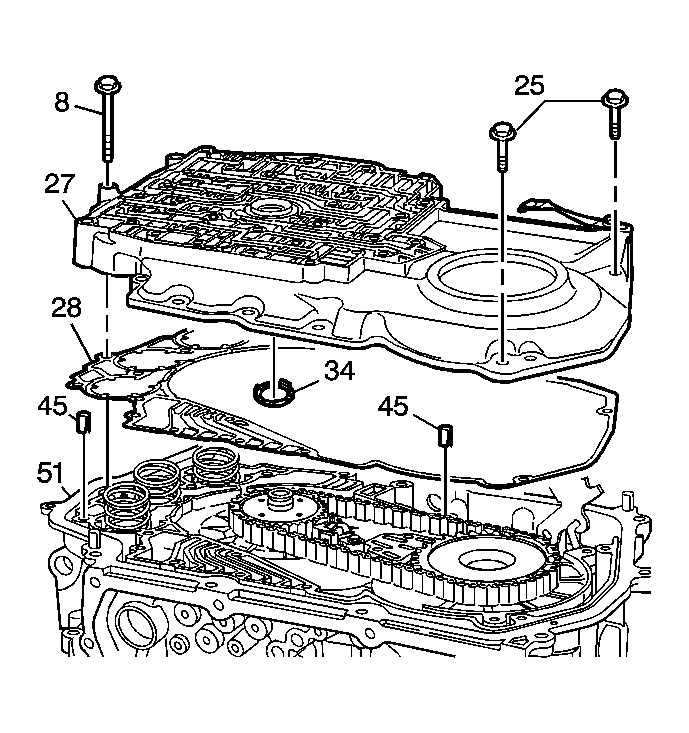

    Fig 1: Identifying Channel Plate Assembly
    GM474268Courtesy of GENERAL MOTORS CORP.
  1. Install the channel plate to drive sprocket thrust washer (34) onto the channel plate (27).
  2. Retain the thrust washer (34) with J 36850:  lubricant or equivalent.
  3. Install a new channel plate to case gasket (28) onto the transmission case (51).
  4. Install the channel plate assembly onto the transmission case (51). The channel plate should fit tightly over the guide pins (45) located on the transmission case (51).
    5. CAUTION: Refer to Fastener Caution .
  5. Install the two channel plate to driven sprocket support bolts (25). Tighten the two channel plate to driven sprocket bolts (25) to 14 N.m (10.5 lb ft).

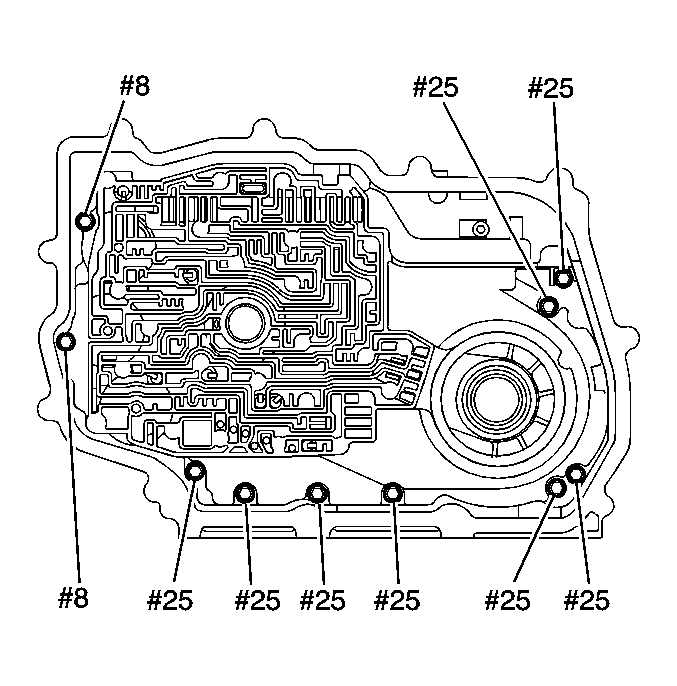

    6. Fig 2: Identifying Channel Plate Assembly Bolts
    GM571023Courtesy of GENERAL MOTORS CORP.
  6. Install the six channel plate to case bolts (25). Hand tighten the bolts. Tighten the six channel plate to case bolts and the two channel plate to driven sprocket support bolts to 12 N.m (9 lb ft).
