Accumulator Spring Removal

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

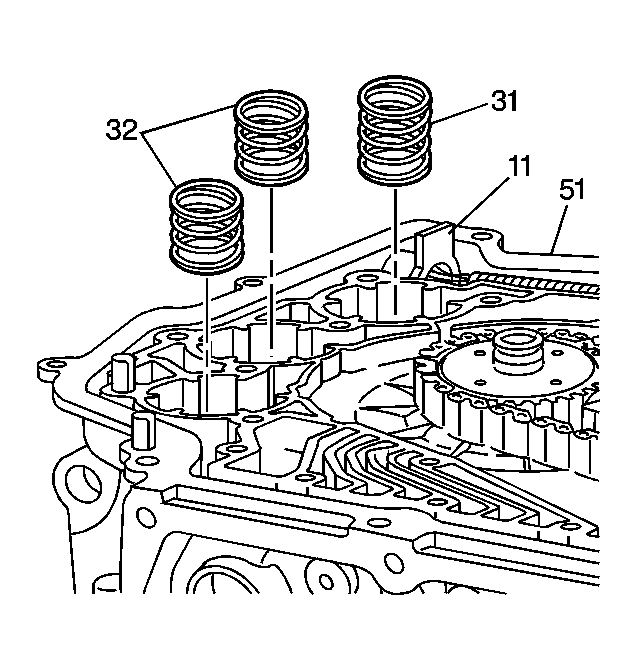

Fig 1: View Of Accumulator Spring

Courtesy of GENERAL MOTORS CORP.

Remove the three accumulator springs (31 and 32) from the case (51).
