Charge Indicator Inoperative (Engine Electrical)

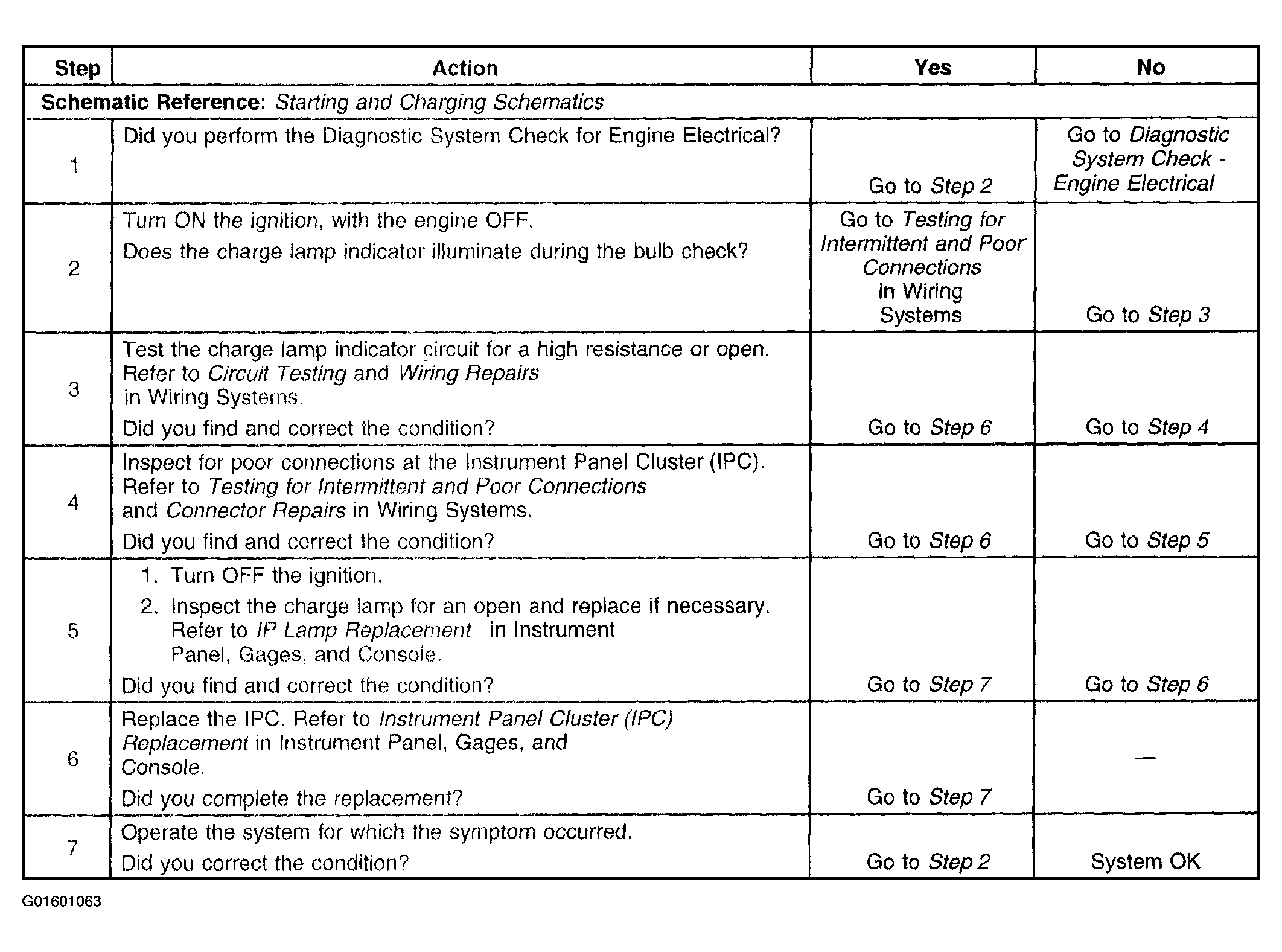

Fig 1: Charge Indicator Inoperative

G01601063

Courtesy of GENERAL MOTORS CORP.
