Low Engine Coolant Indicator Always On

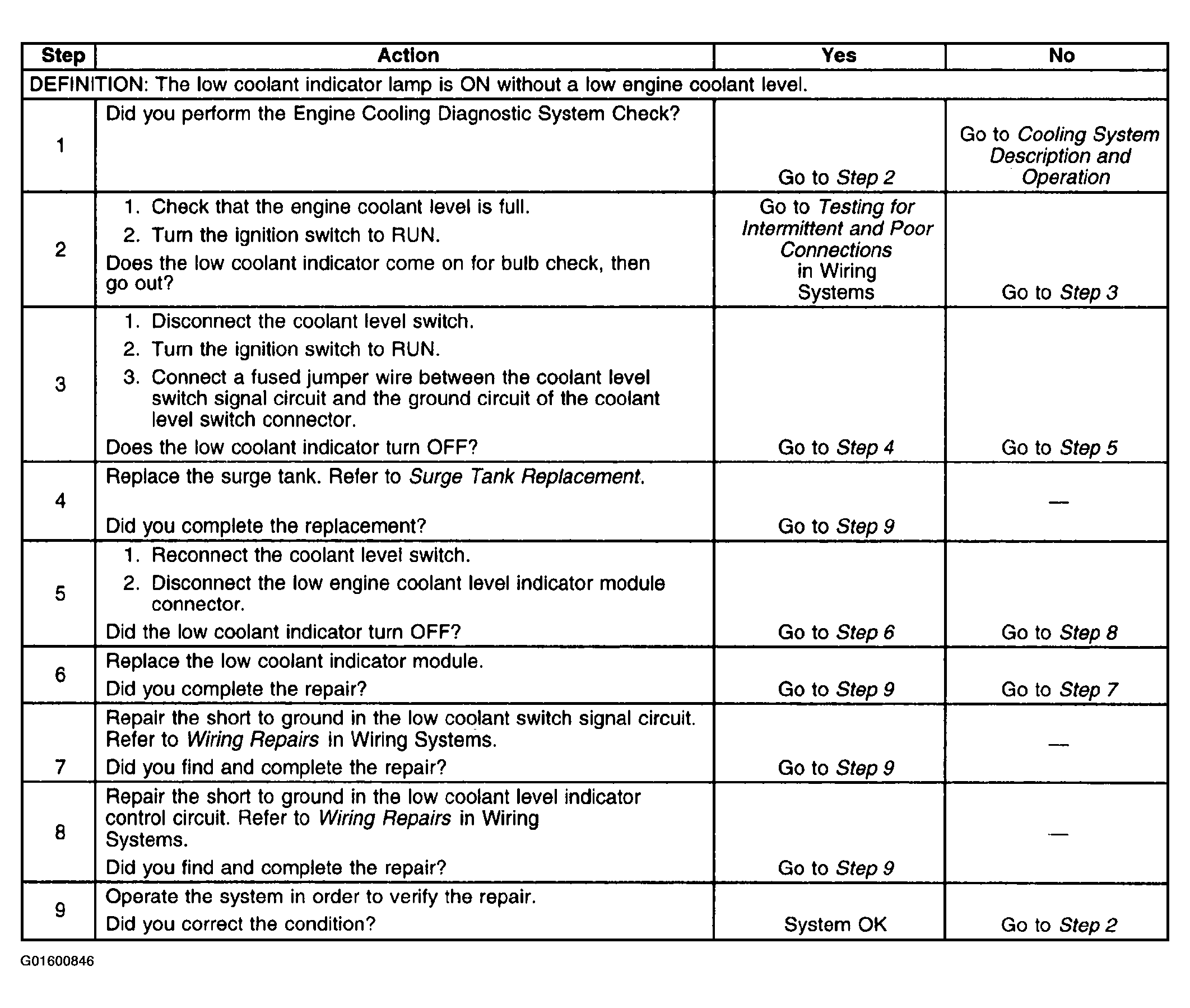

Fig 1: Low Engine Coolant Indicator Always On

G01600846

Courtesy of GENERAL MOTORS CORP.
