Turn Signal Lamps and/or Indicators Inoperative

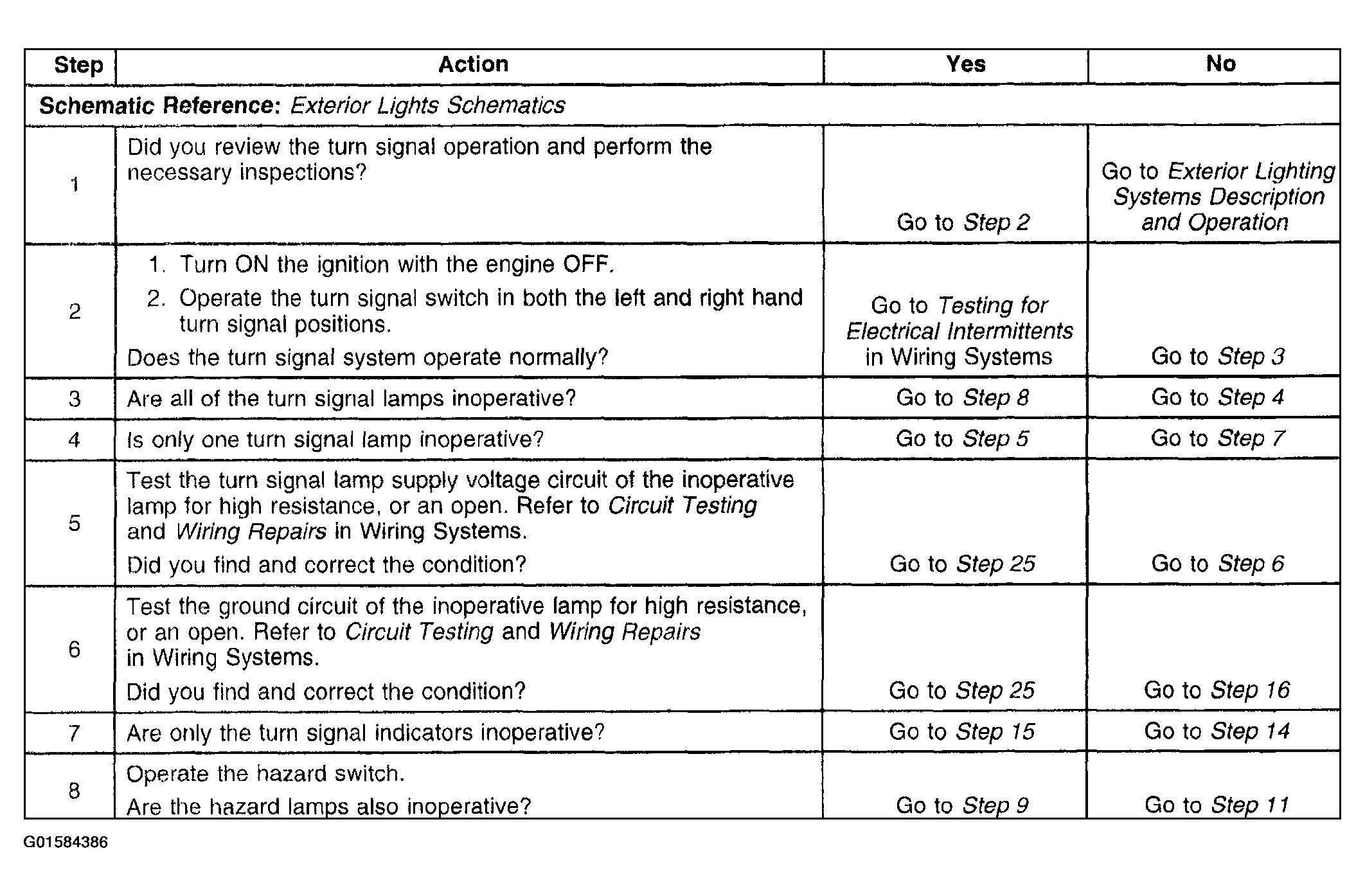

Fig 1: Turn Signal Lamps &/Or Indicators Inoperative (1 Of 3)
G01584386Courtesy of GENERAL MOTORS CORP.

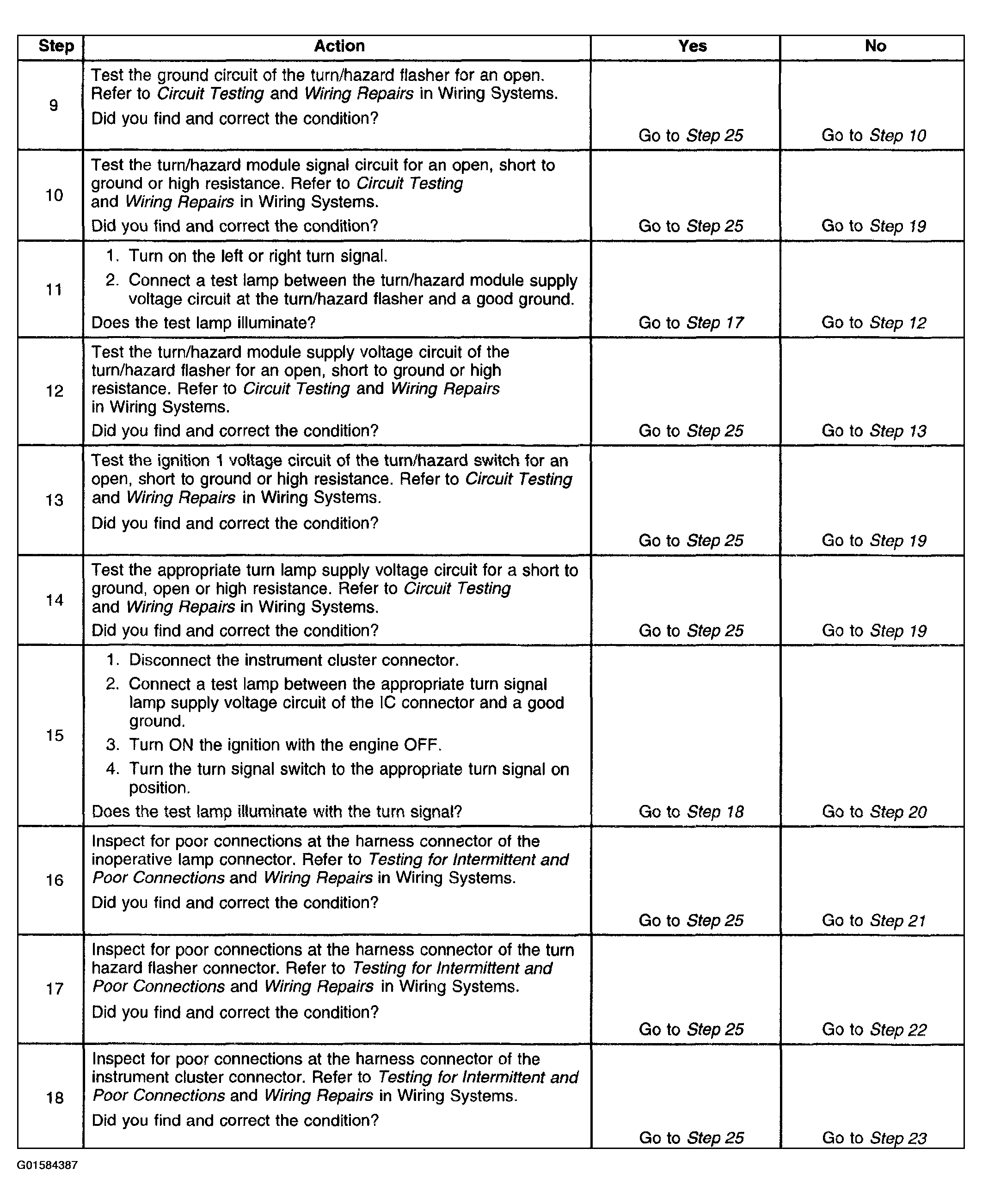

Fig 2: Turn Signal Lamps &/Or Indicators Inoperative (2 Of 3)
G01584387Courtesy of GENERAL MOTORS CORP.

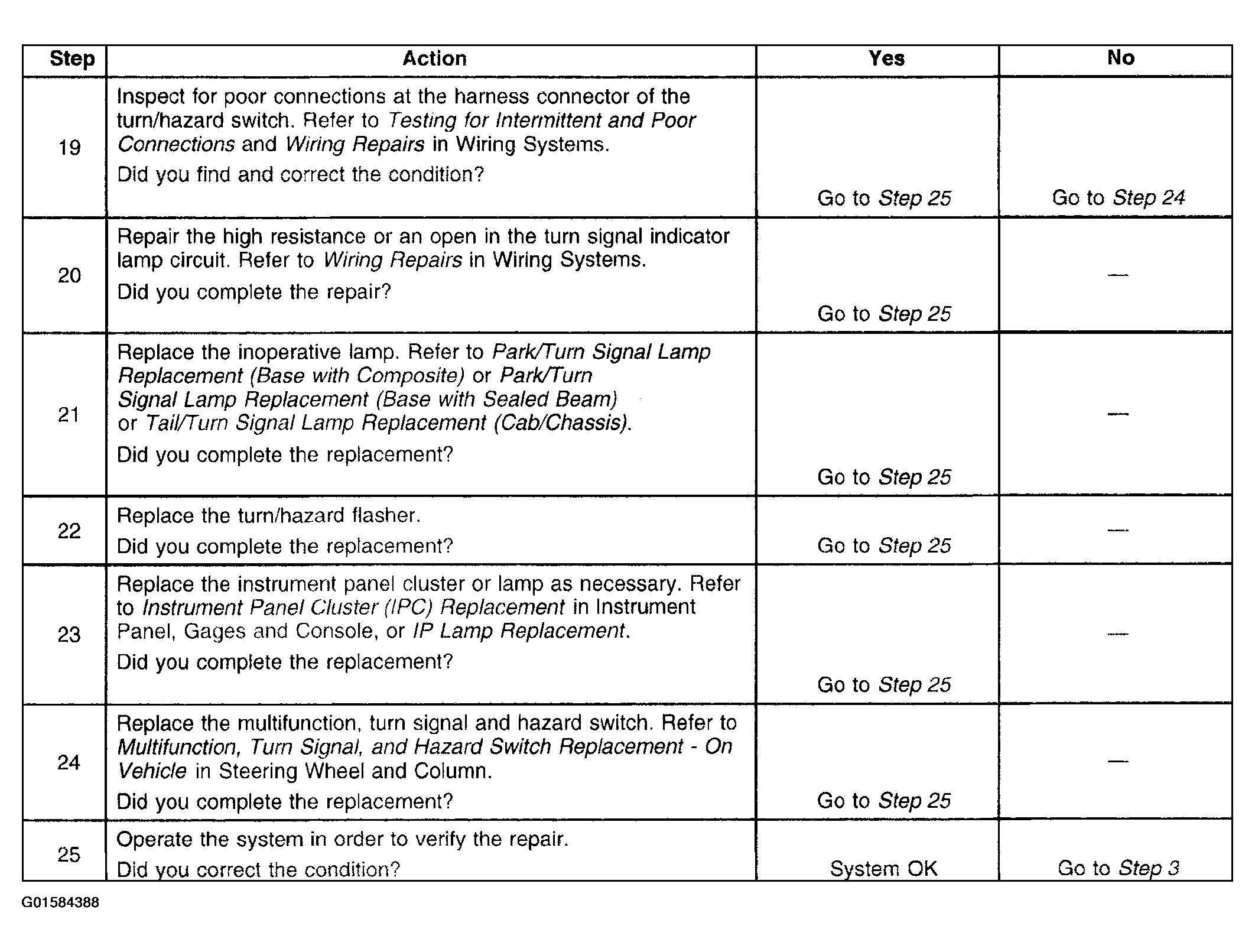

Fig 3: Turn Signal Lamps &/Or Indicators Inoperative (3 Of 3)
G01584388Courtesy of GENERAL MOTORS CORP.
