Speedometer and/or Odometer Inaccurate or Inoperative (8.1L Gasoline Engine)

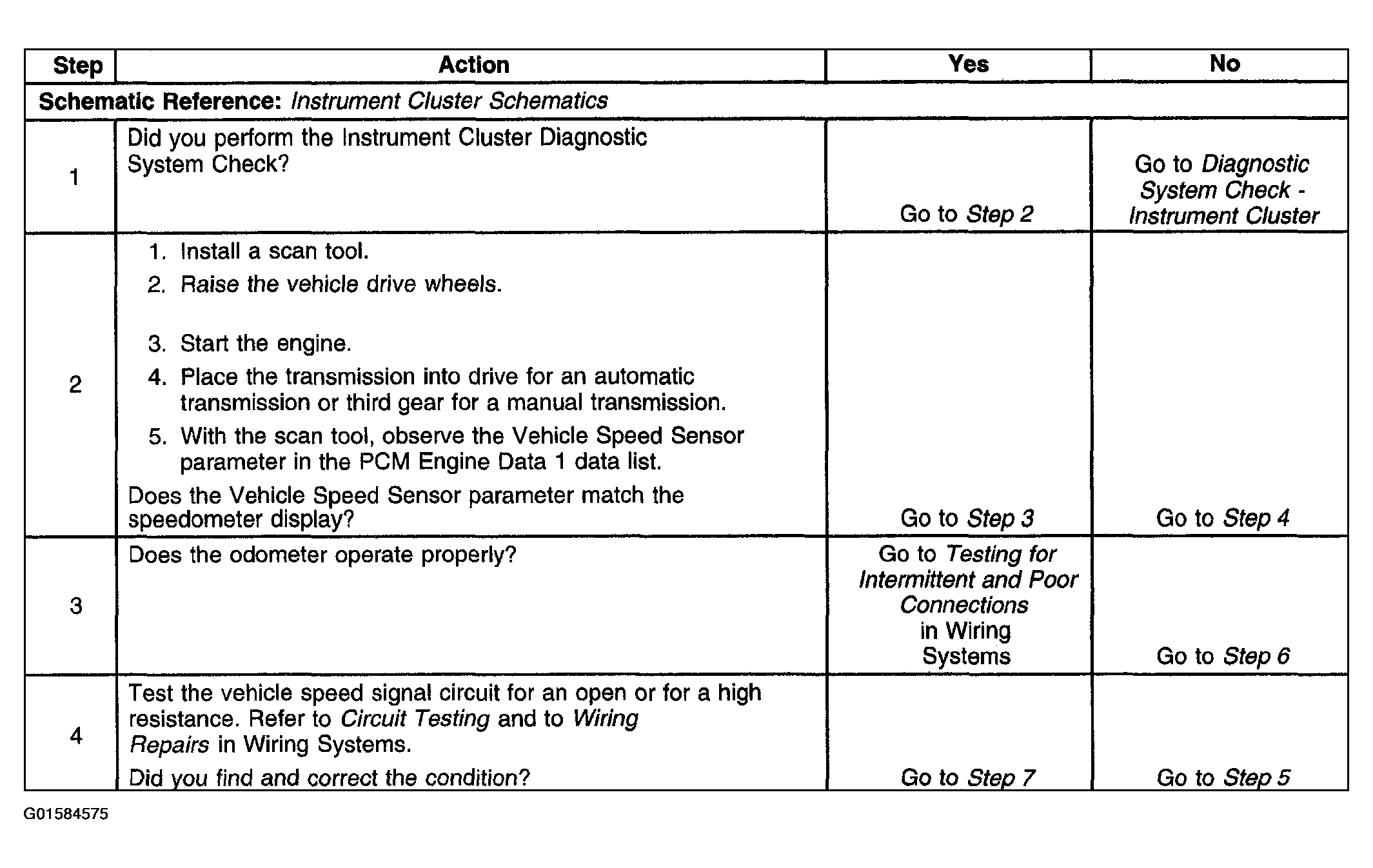

Fig 1: Speedometer &/Or Odometer Inaccurate Or Inoperative (8.1L Gasoline Engine) (1 Of 2)
G01584575Courtesy of GENERAL MOTORS CORP.

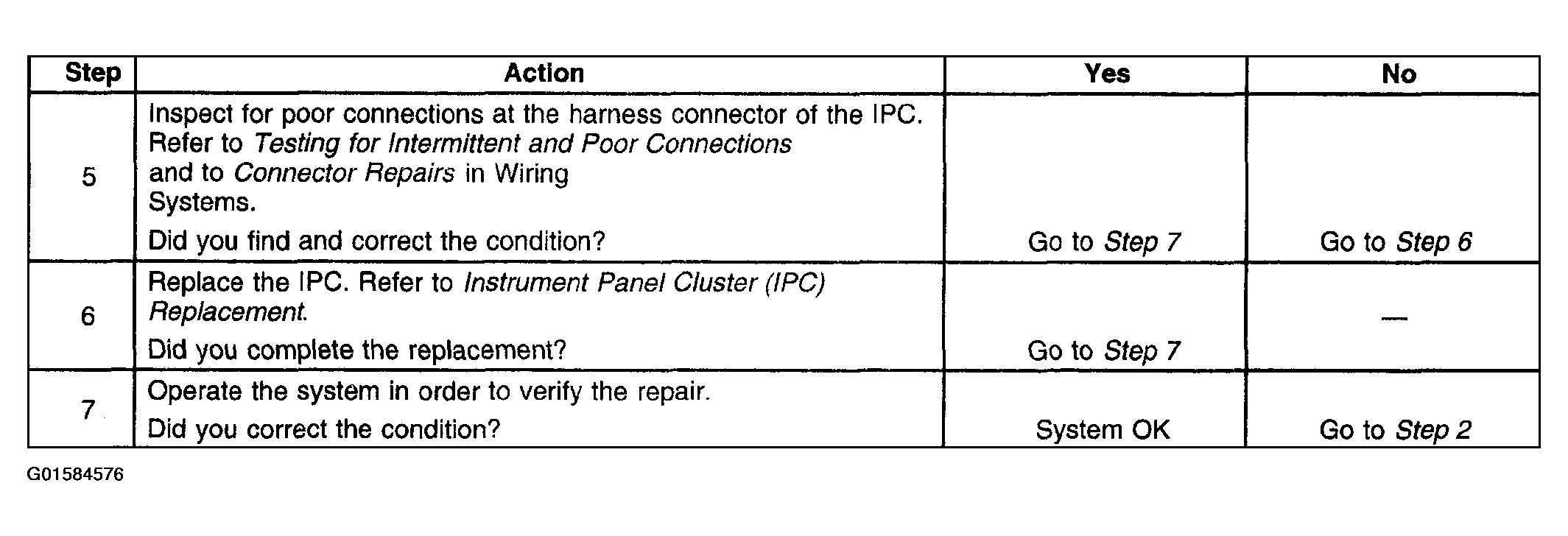

Fig 2: Speedometer &/Or Odometer Inaccurate Or Inoperative (8.1L Gasoline Engine) (2 Of 2)
G01584576Courtesy of GENERAL MOTORS CORP.
