Transfer Case Control Schematics (Power and Ground)

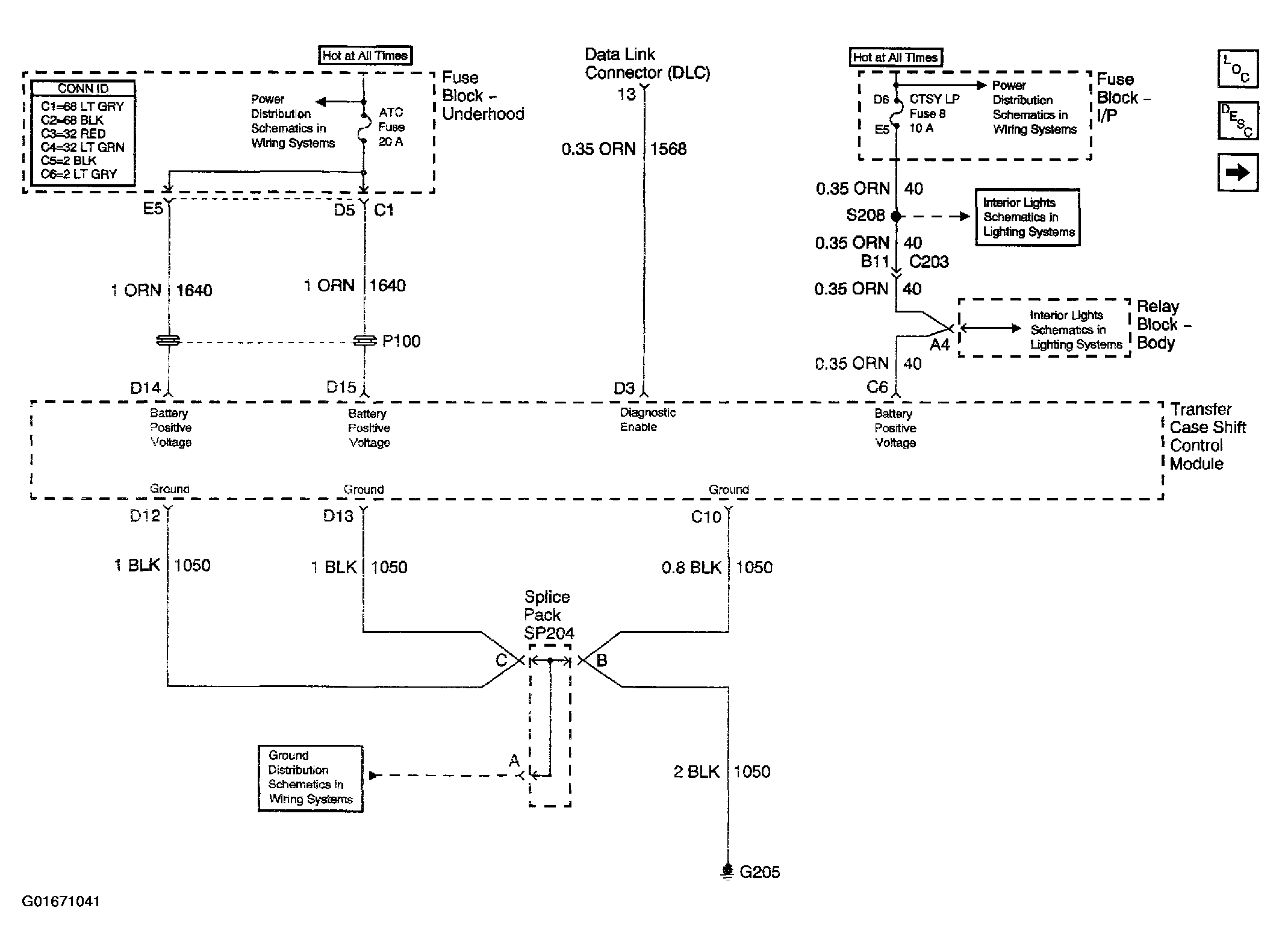

Fig 1: Transfer Case Control Schematics (Power and Ground)

Courtesy of GENERAL MOTORS CORP.

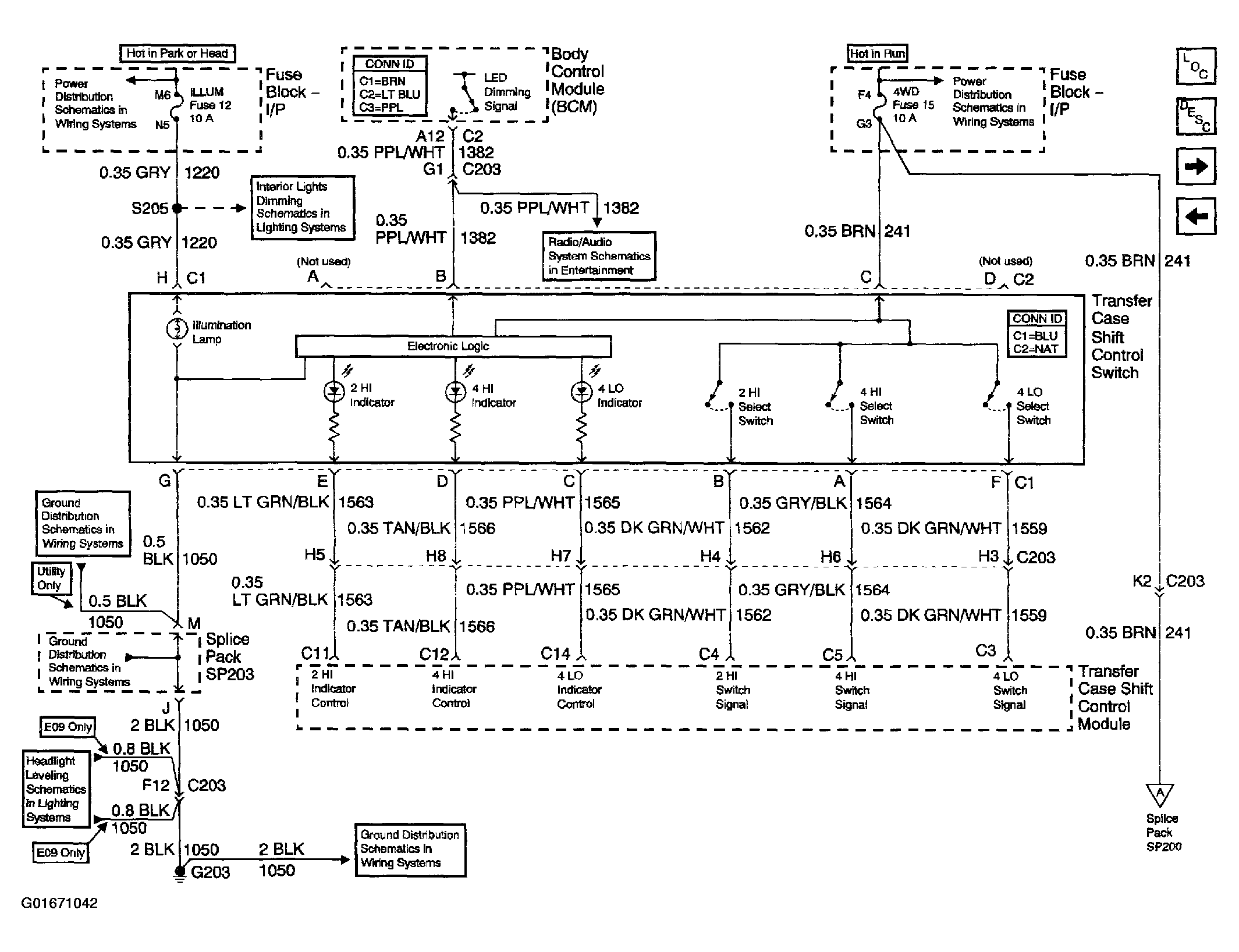

Fig 2: Transfer Case Control Schematics (Transfer Case Shift Control Switch)

Courtesy of GENERAL MOTORS CORP.

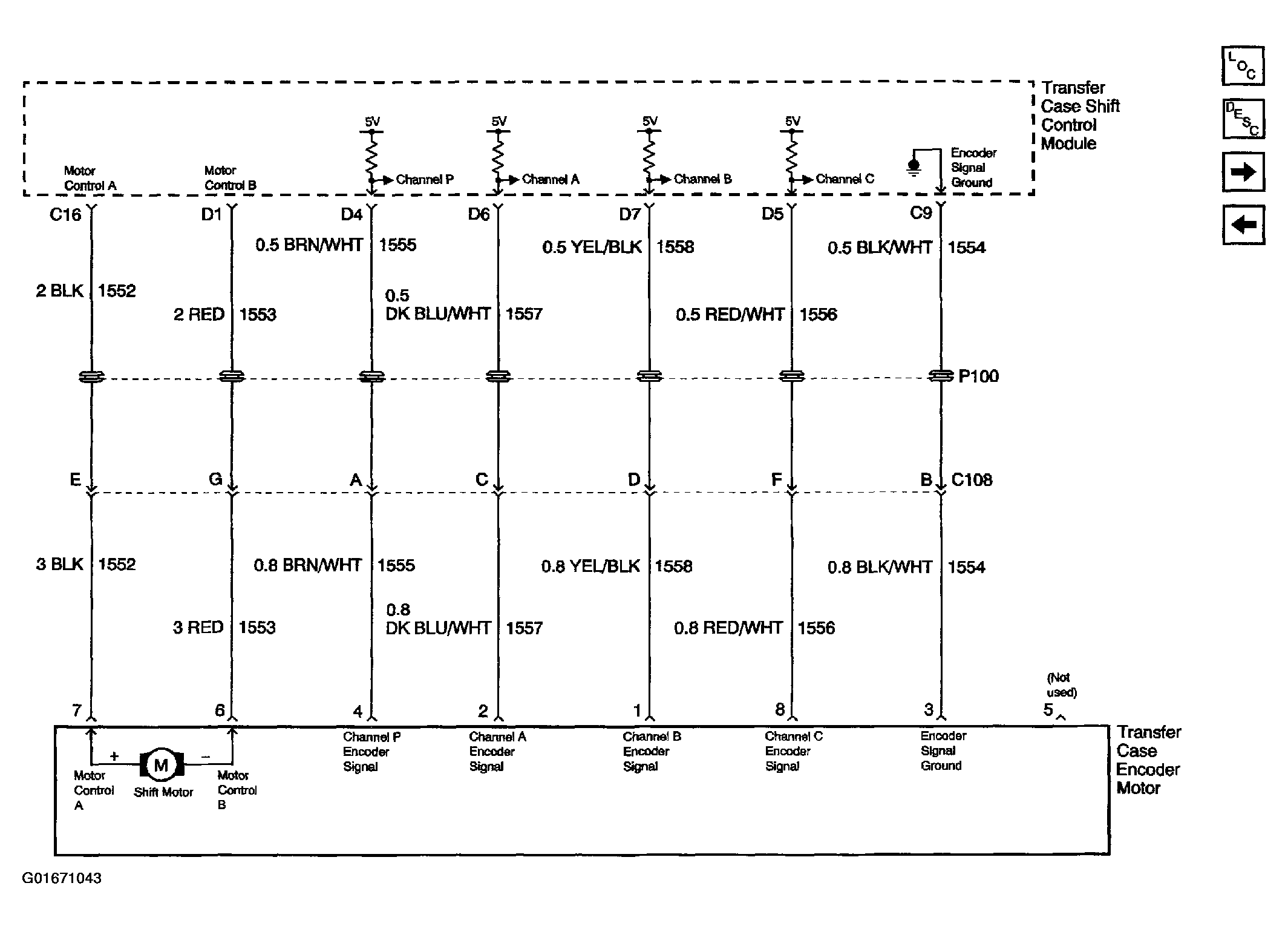

Fig 3: Transfer Case Control Schematics (Transfer Case Encoder Motor)

Courtesy of GENERAL MOTORS CORP.

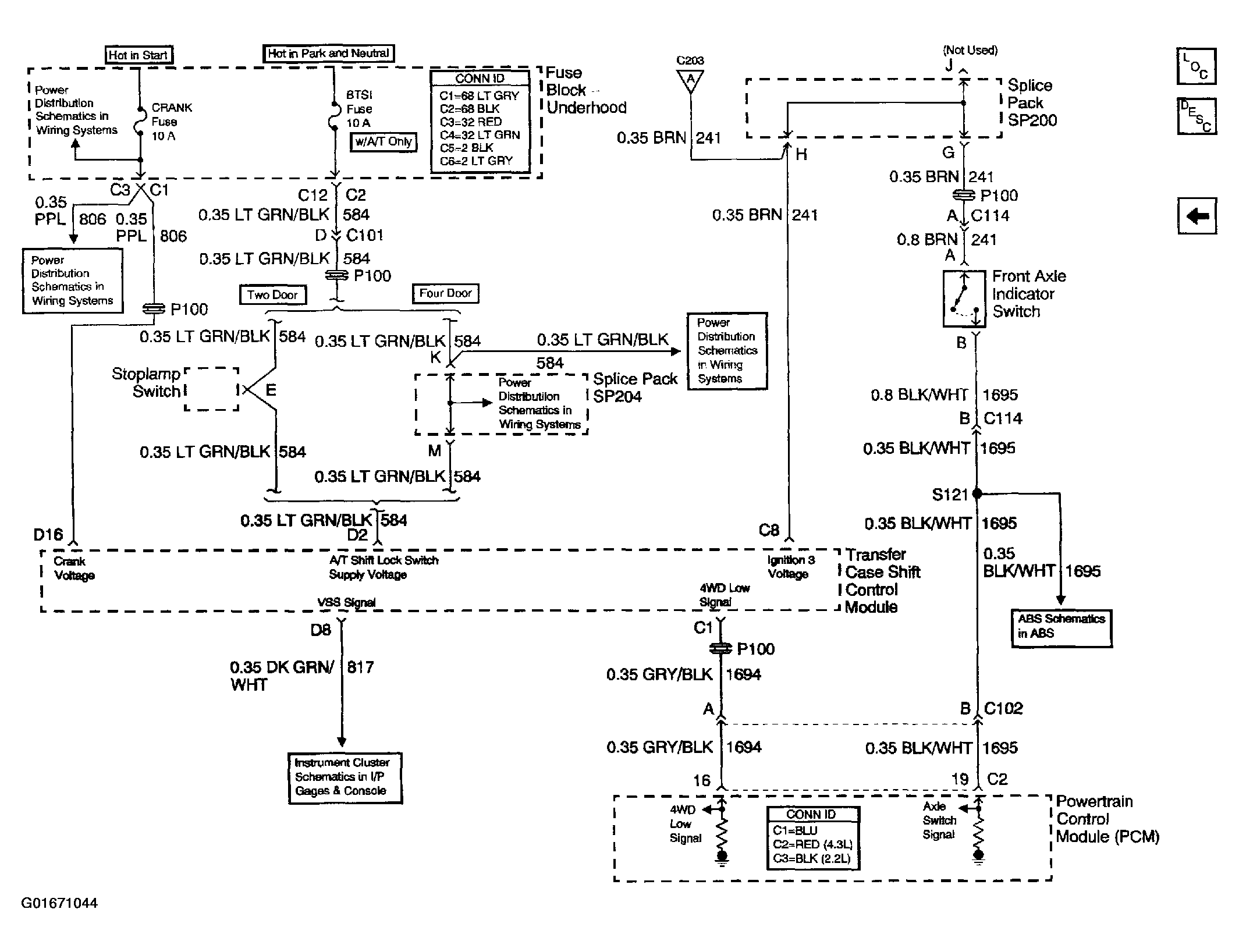

Fig 4: Transfer Case Control Schematics (Front Axle Indicator Switch and Powertrain Control Module (PCM)

Courtesy of GENERAL MOTORS CORP.
