Removal Procedure

  1. Raise the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Remove the transfer case shield. Refer to Transfer Case Shield Replacement .

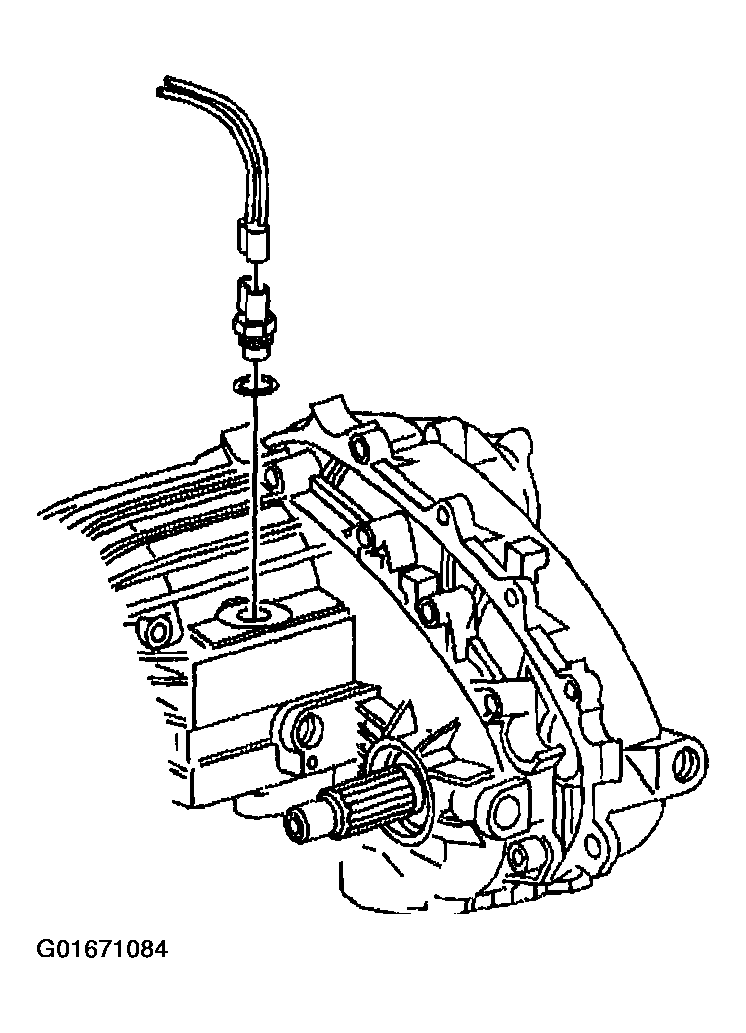

    Fig 1: Removing Vacuum Line For Transfer Case Vacuum Switch
    G01671084Courtesy of GENERAL MOTORS CORP.
  3. Remove the transfer case brace, if equipped.
  4. Remove the vacuum line for the transfer case vacuum switch.
  5. Remove the transfer case vacuum switch.

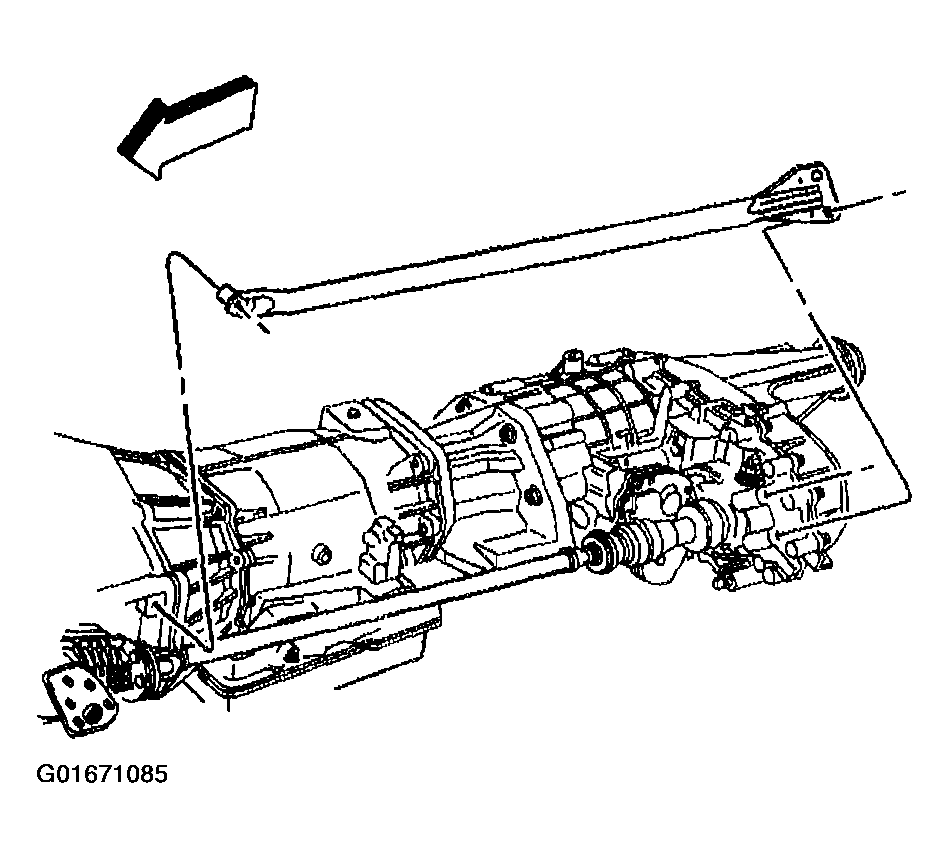

    Fig 2: Removing Transfer Case Brace
    G01671085Courtesy of GENERAL MOTORS CORP.
