Removal Procedure

  1. Raise the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information
  2. Remove the transfer case shield. Refer to Transfer Case Shield Replacement .
  3. Remove the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - FRONT in Propeller Shaft.
  4. Remove the transfer case speed sensor electrical connector.

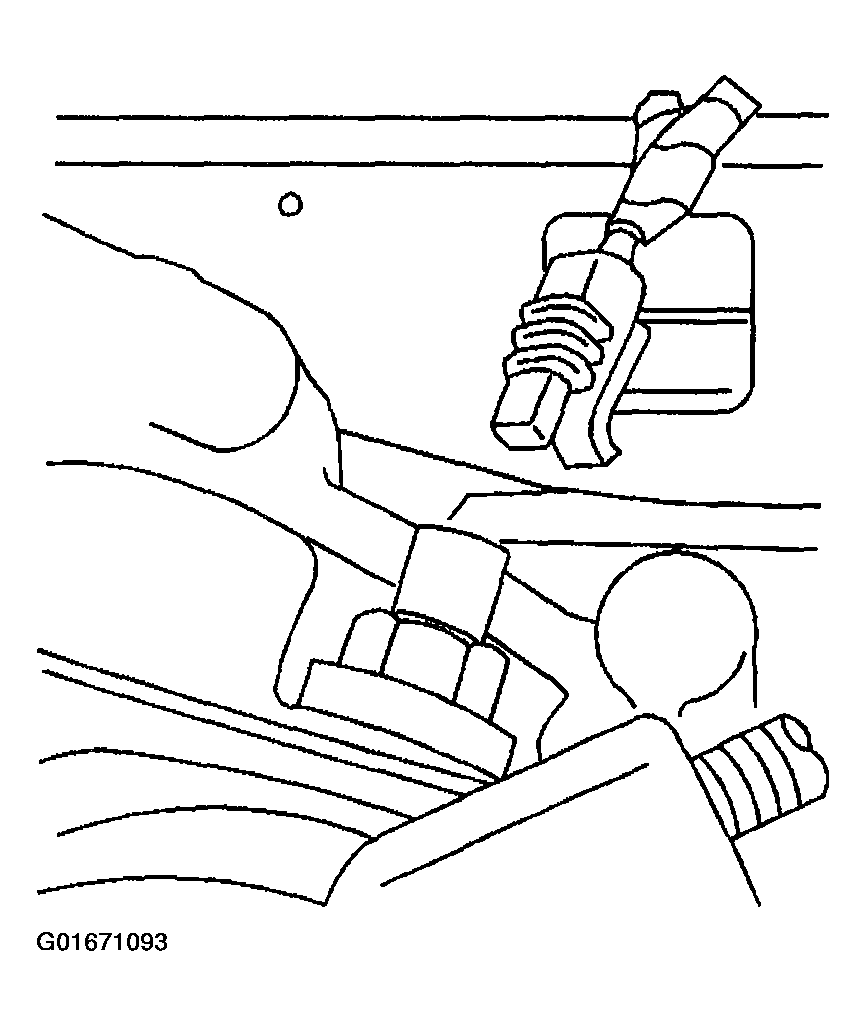

    Fig 1: Removing Transfer Case Speed Sensor Electrical Connector
    G01671093Courtesy of GENERAL MOTORS CORP.
  5. Remove the transfer case speed sensor.

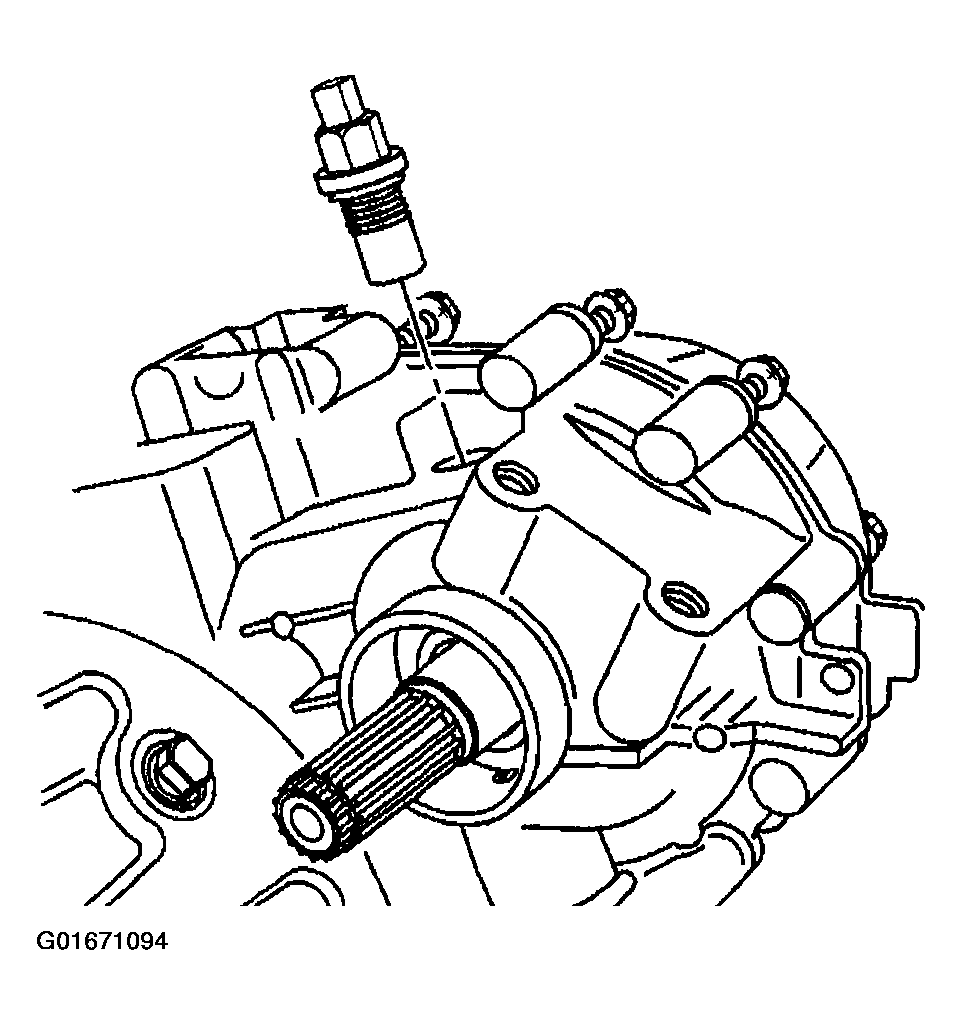

    Fig 2: Removing Transfer Case Speed Sensor
    G01671094Courtesy of GENERAL MOTORS CORP.
