Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the transfer case speed sensor.

    Tighten

    Tighten the transfer case speed sensor to 15 N.m (11 lb ft).

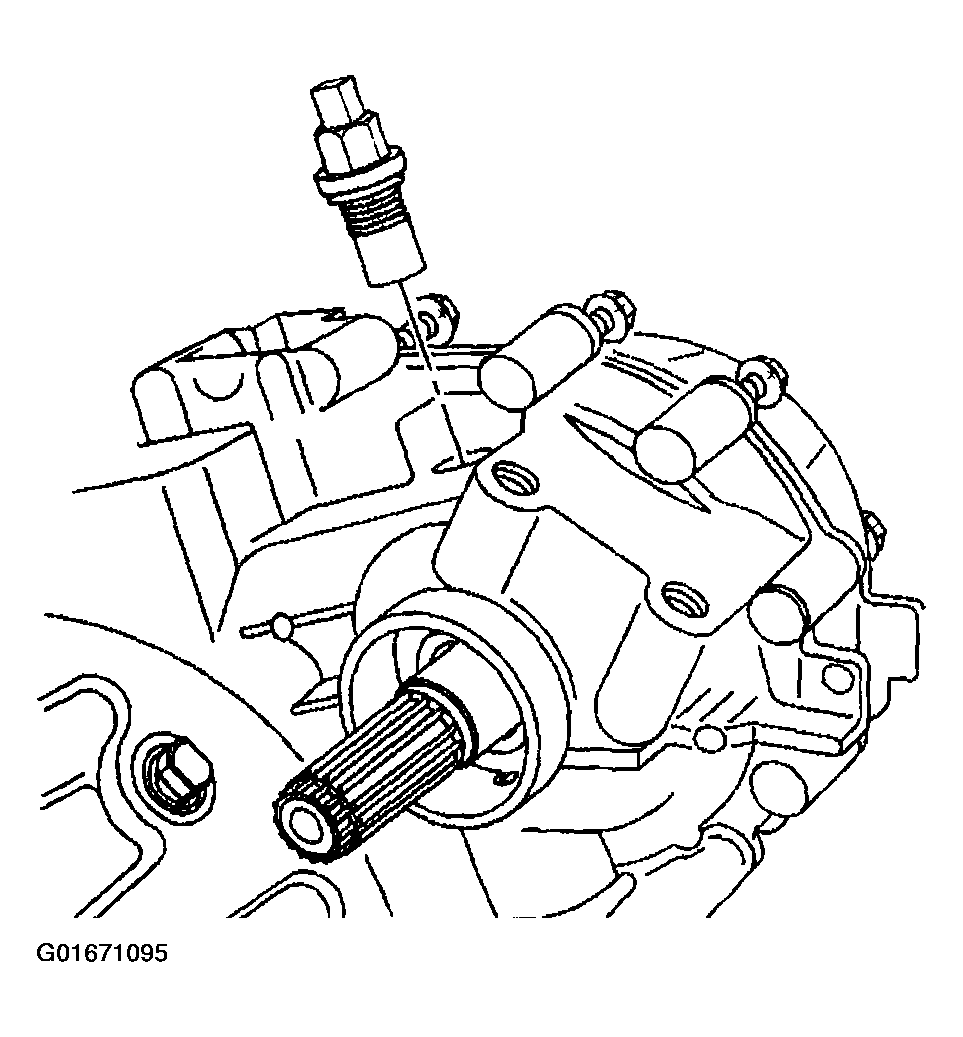

    Fig 1: Installing Transfer Case Speed Sensor
    G01671095Courtesy of GENERAL MOTORS CORP.
  2. Install the transfer case speed sensor electrical connector.
  3. Install the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - FRONT in Propeller Shaft.
  4. Install the transfer case shield to the vehicle. Refer to Transfer Case Shield Replacement .
  5. Lower the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.

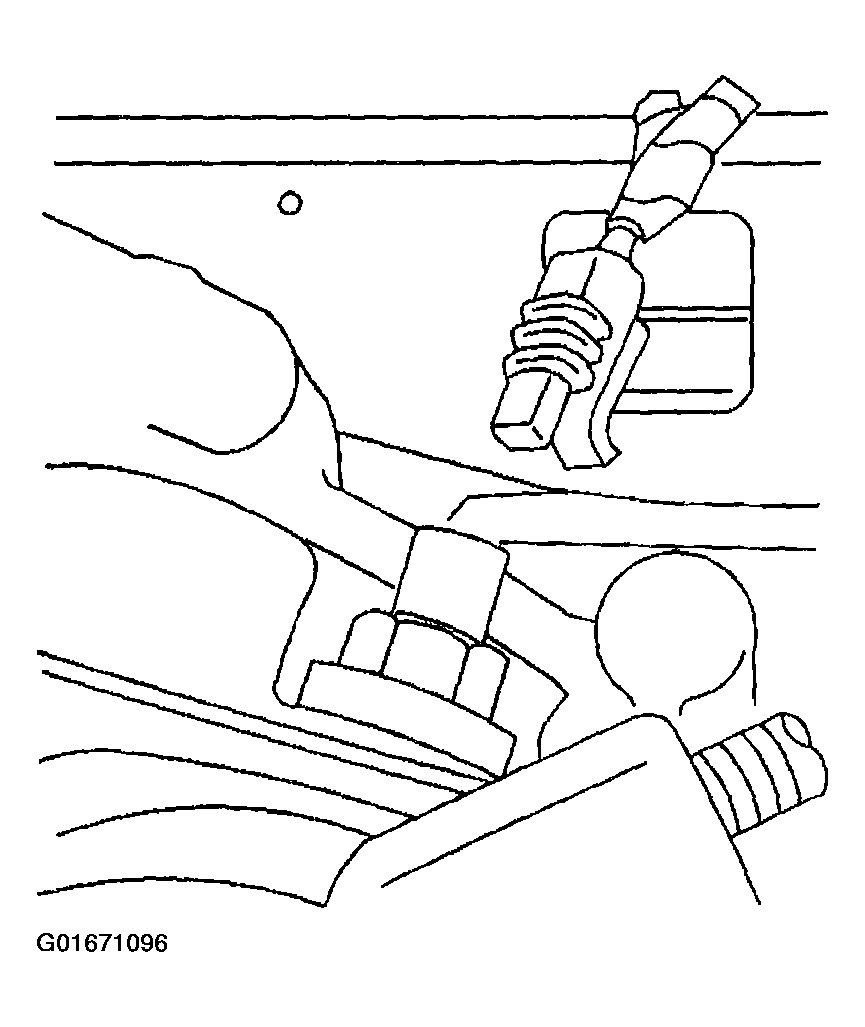

    Fig 2: Installing Transfer Case Speed Sensor Electrical Connector
    G01671096Courtesy of GENERAL MOTORS CORP.
