Removal Procedure

  1. Insert a pocket crew driver between the control switch and the instrument panel.
  2. Using light pressure, pry the control switch from the instrument panel.
  3. Remove the control switch from the instrument panel.
  4. Remove the electrical connectors from the control switch.

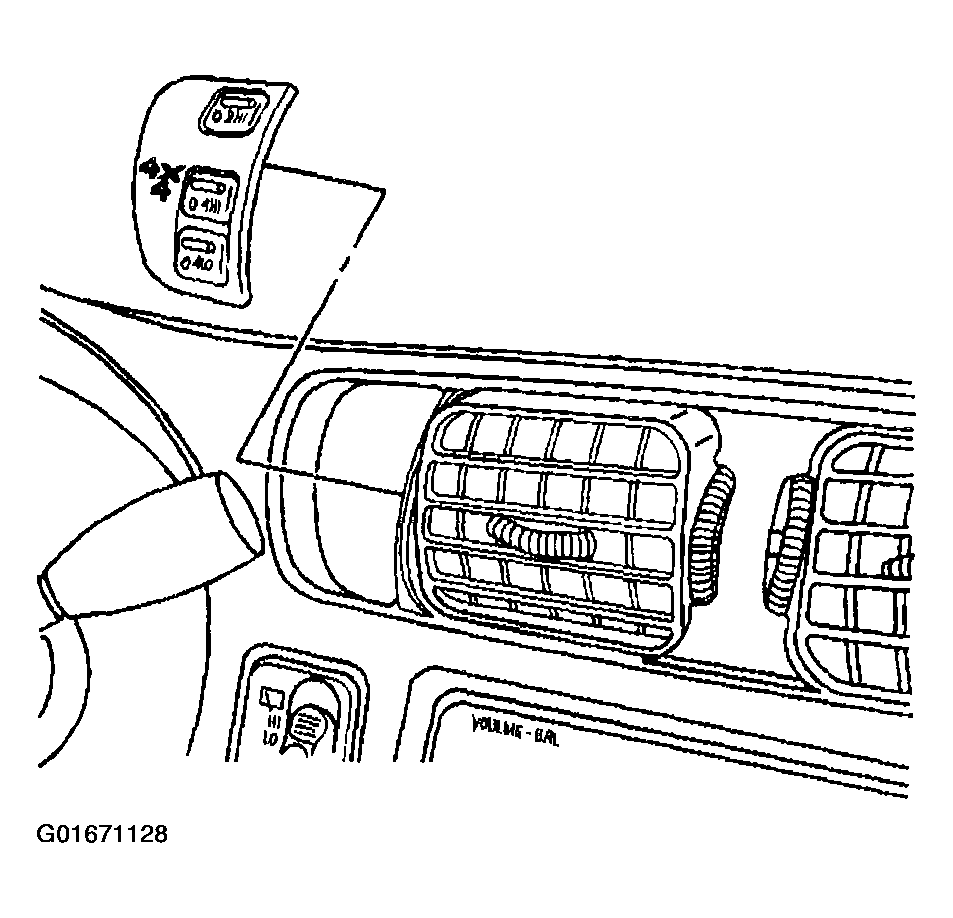

    Fig 1: Removing Control Switch From Instrument Panel
    G01671128Courtesy of GENERAL MOTORS CORP.
