Removal Procedure

  1. Raise the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Remove the transfer case shield mounting bolts.
  3. Remove the transfer case shield from the cross member.

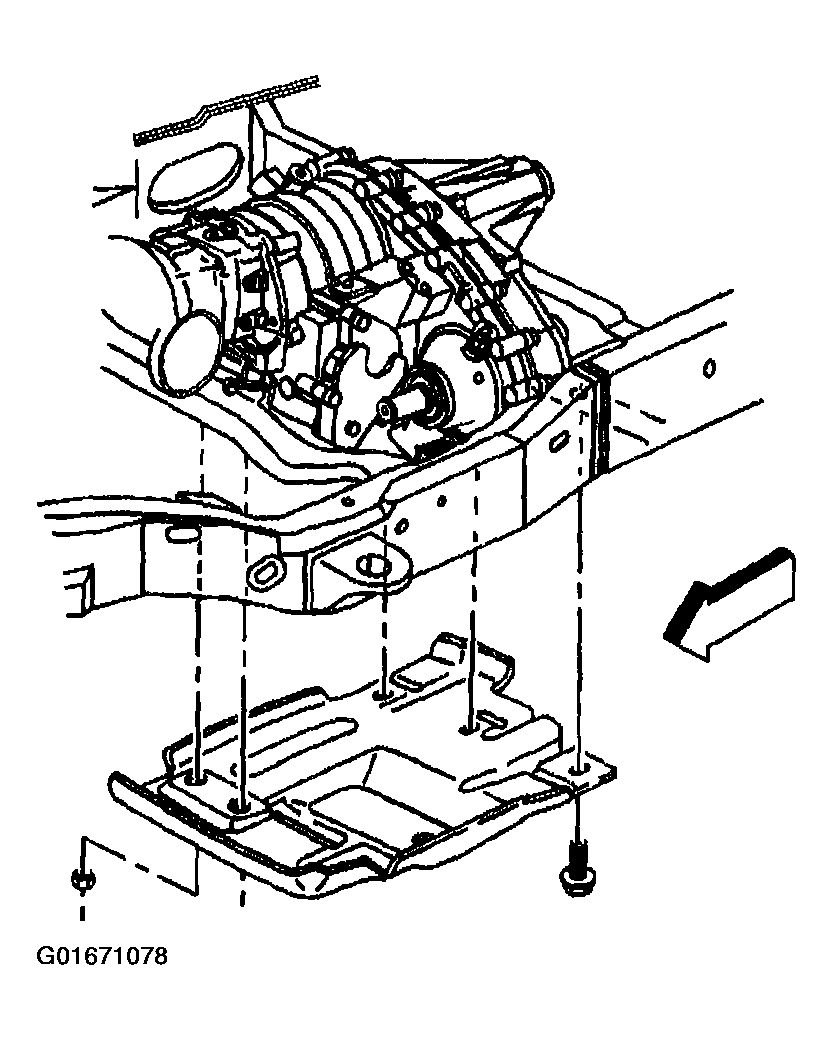

    Fig 1: Removing Transfer Case Shield From Cross Member
    G01671078Courtesy of GENERAL MOTORS CORP.
