Installation Procedure
- Install the transfer case rear output shaft seal in the transfer case with your fingers.

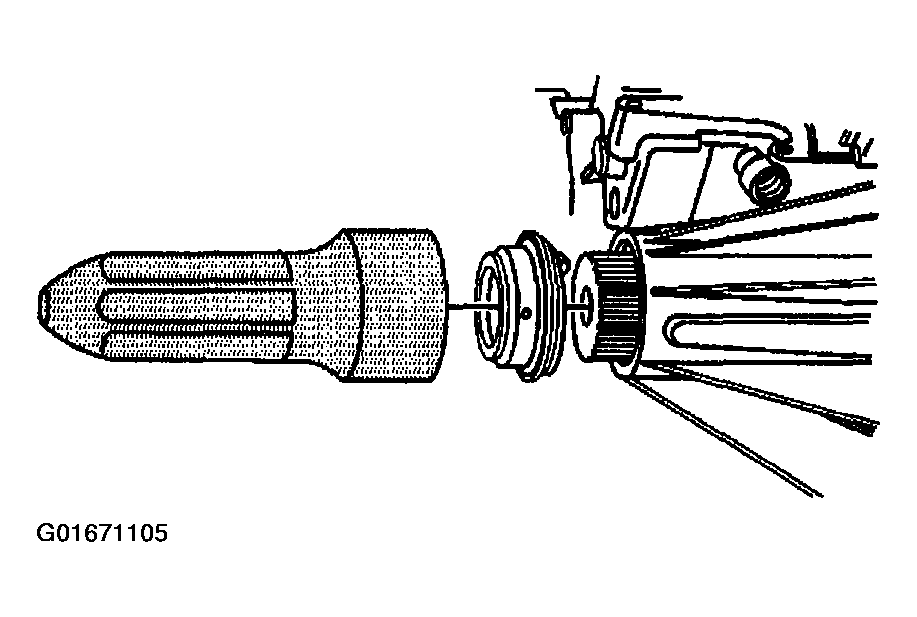

- Using the J 37668-A , install the transfer case rear output shaft seal in the transfer case.
- Install the rear propeller shaft.
- For vehicles equipped with the one piece propeller shaft, refer to PROPELLER SHAFT REPLACEMENT - ONE PIECE in Propeller Shaft.
- For vehicles equipped with the two piece propeller shaft, refer to PROPELLER SHAFT REPLACEMENT - TWO PIECE in Propeller Shaft.
- Check the transfer case fluid level. Refer to Transfer Case Fluid Replacement .
- Install the transfer case shield. Refer to Transfer Case Shield Replacement .
- Lower the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
