Removal Procedure

  1. Raise the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Remove the transfer case shield. Refer to Transfer Case Shield Replacement .

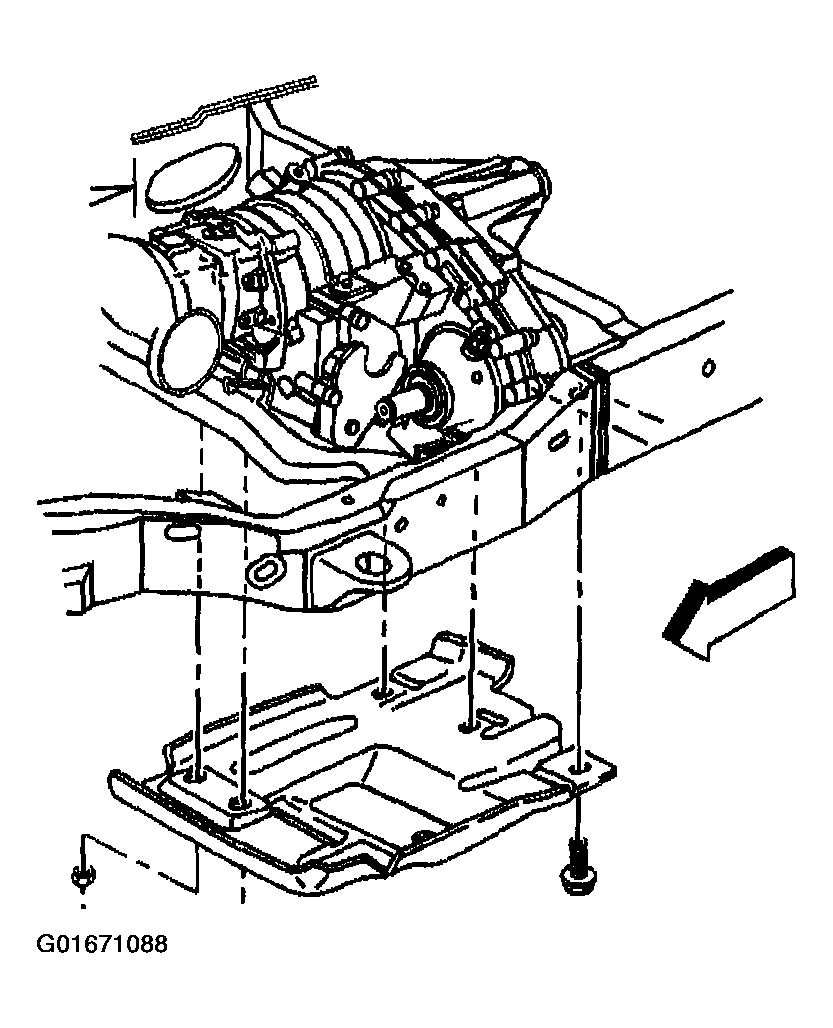

    Fig 1: Removing Transfer Case Shield
    G01671088Courtesy of GENERAL MOTORS CORP.
  3. Remove the motor/encoder electrical connector.

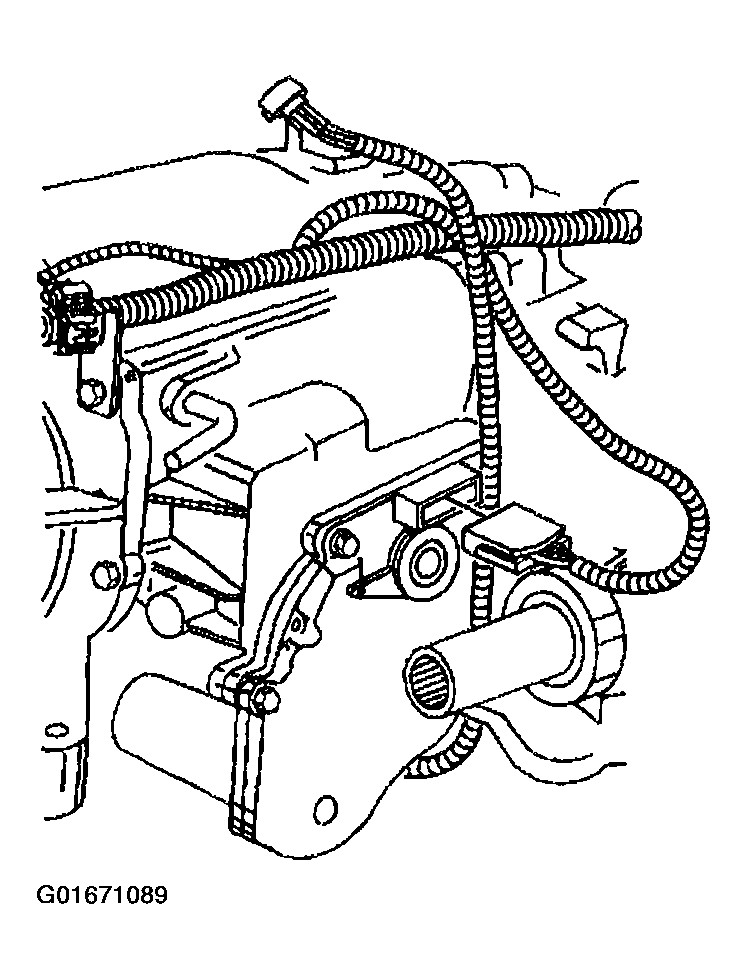

    Fig 2: Removing Motor/Encoder Electrical Connector
    G01671089Courtesy of GENERAL MOTORS CORP.
  4. Remove the motor/encoder mounting bolts.
  5. Remove the motor/encoder assembly.
  6. Remove the motor/encoder gasket.

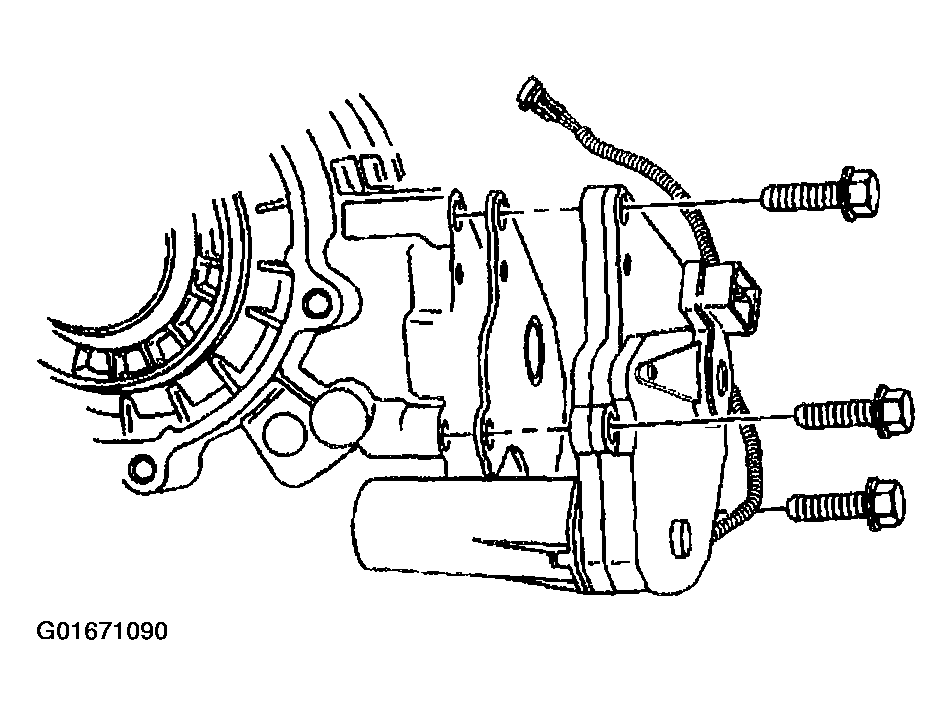

    Fig 3: Removing Motor/Encoder Mounting Bolts
    G01671090Courtesy of GENERAL MOTORS CORP.
