Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the transfer case drain plug.

    Tighten

    Tighten the transfer case drain plug to 20 N.m (15 lb ft).

  2. Fill the transfer case with the proper amount of approved fluid. Refer to Capacities - Approximate Fluid .

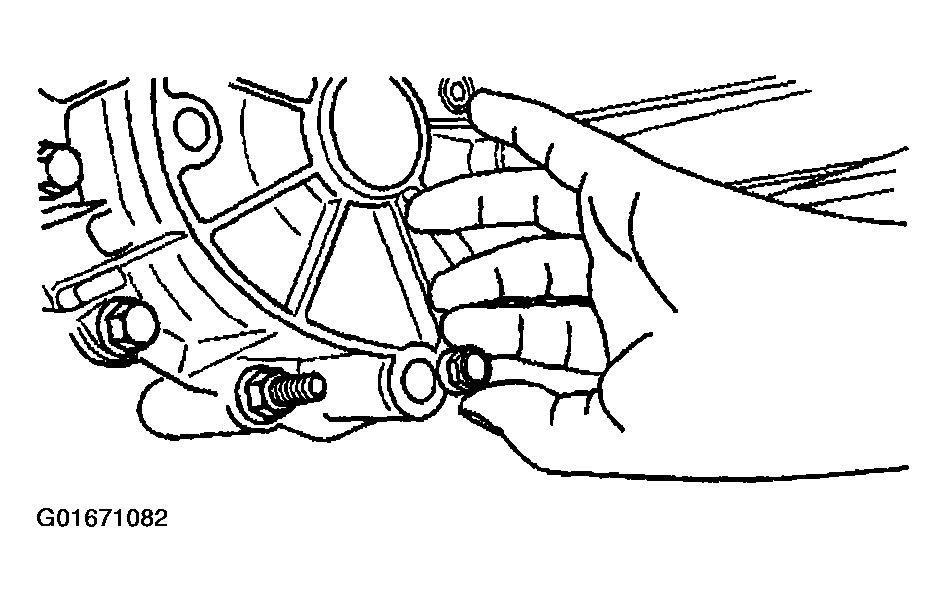

    Fig 1: Installing Transfer Case Drain Plug
    G01671082Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the transfer case fill plug.

    Tighten

    Tighten the oil fill plug to 20 N.m (15 lb ft).

  4. Install the transfer case shield. Refer to Transfer Case Shield Replacement .
  5. Lower the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
    Fig 2: Installing Transfer Case Fill Plug
    G01671083Courtesy of GENERAL MOTORS CORP.
