Installation Procedure

Important:  Do not reuse the old gasket if it is damaged, replaced it. Do not use any type of sealer in place of the gasket.

1. Install the new transfer case adapter seal.
2. Install the transfer adapter to the transmission.
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
3. Install the transfer case adapter mounting bolts to the transmission.

   Tighten

   Tighten the transfer case adapter mounting bolts to 55 N.m (40 lb ft).

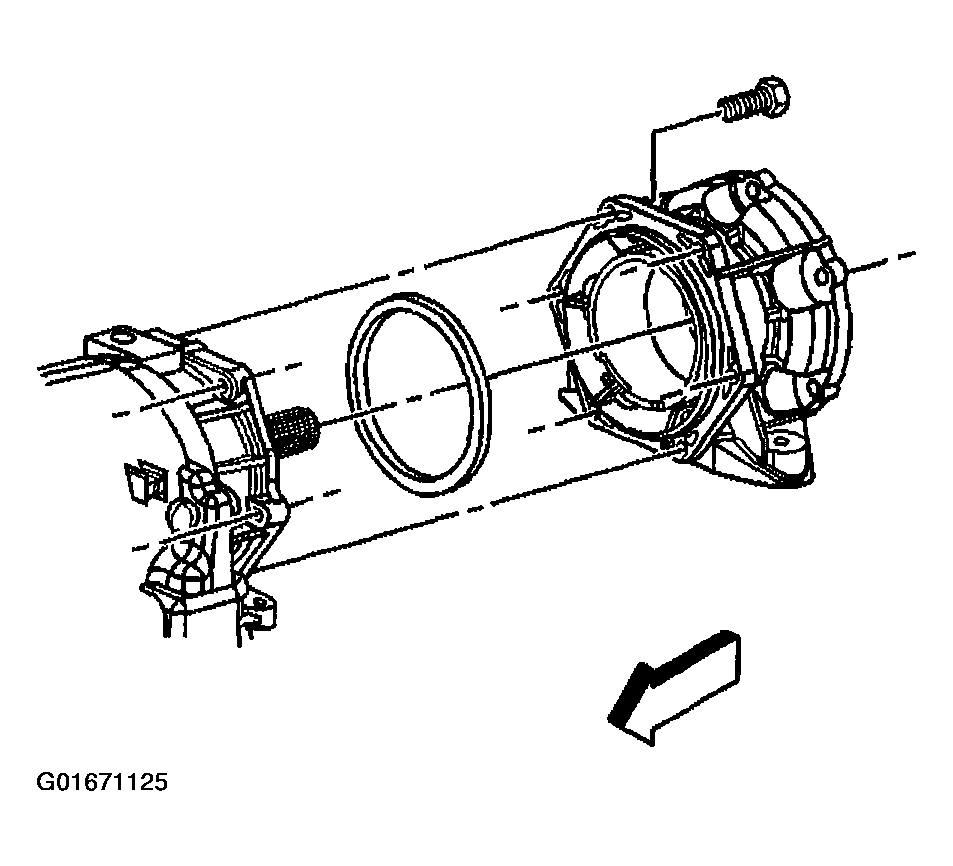

   Fig 1: Installing Transfer Case Assembly

   Courtesy of GENERAL MOTORS CORP.
4. Install the new transfer case gasket.

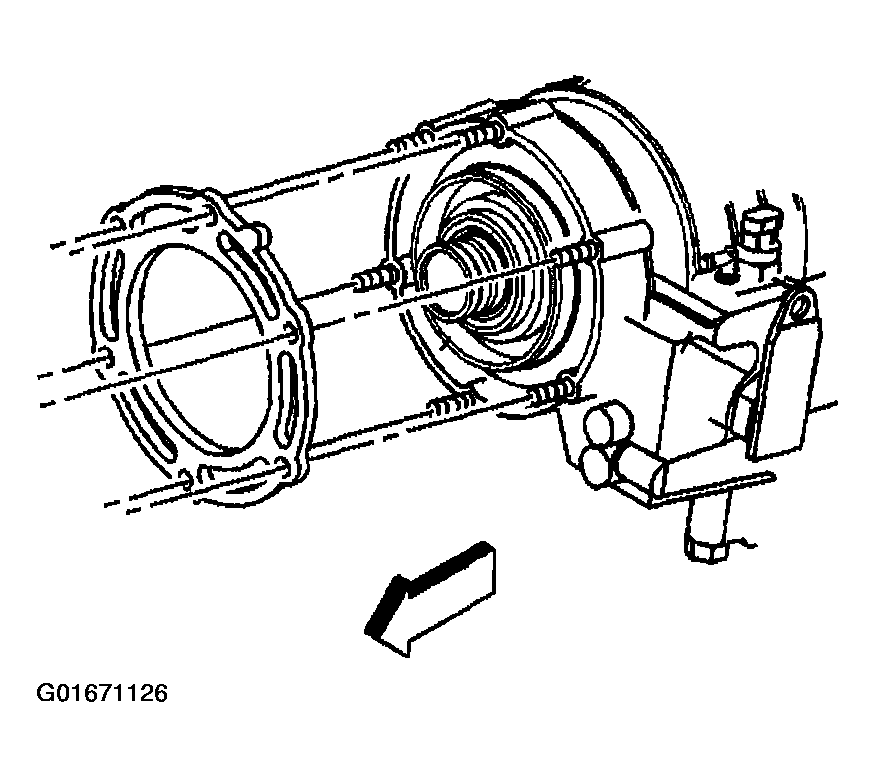

   Fig 2: Installing New Transfer Case Gasket

   Courtesy of GENERAL MOTORS CORP.
5. Install the transfer case assembly. Refer to Transfer Case Assembly Replacement .

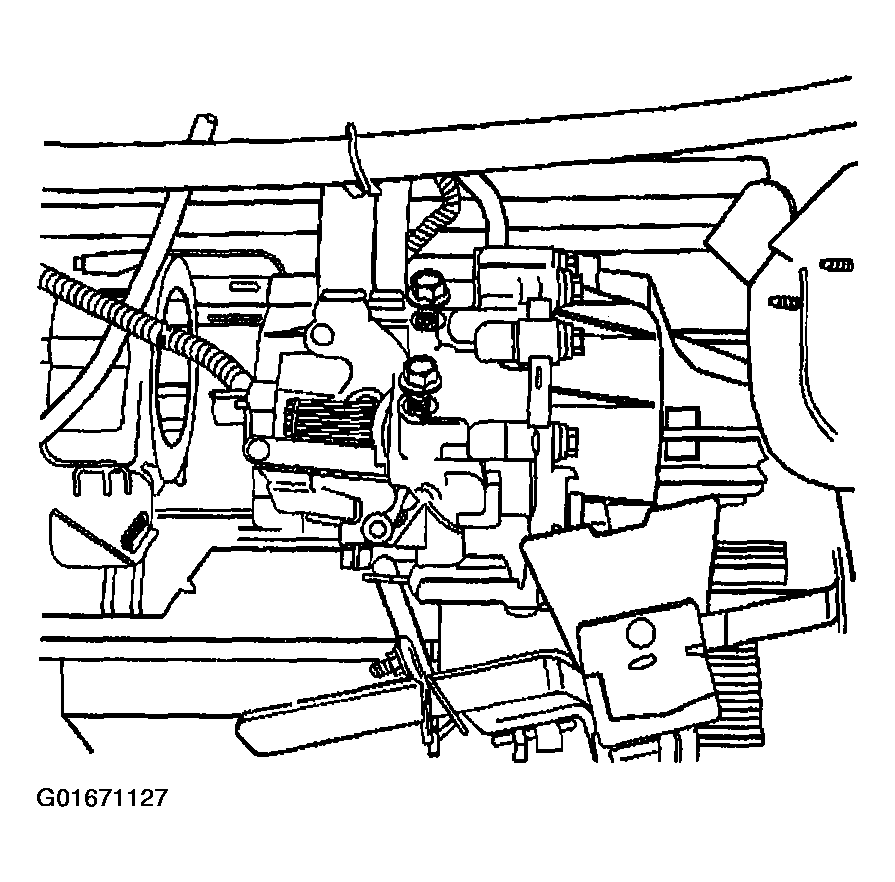

   Fig 3: Installing Transfer Case Adapter Mounting Bolts To Transmission

   Courtesy of GENERAL MOTORS CORP.
