Test Description

The number below refers to the step number on the diagnostic table.

2. This step tests he functionality of the transfer case shift control system.

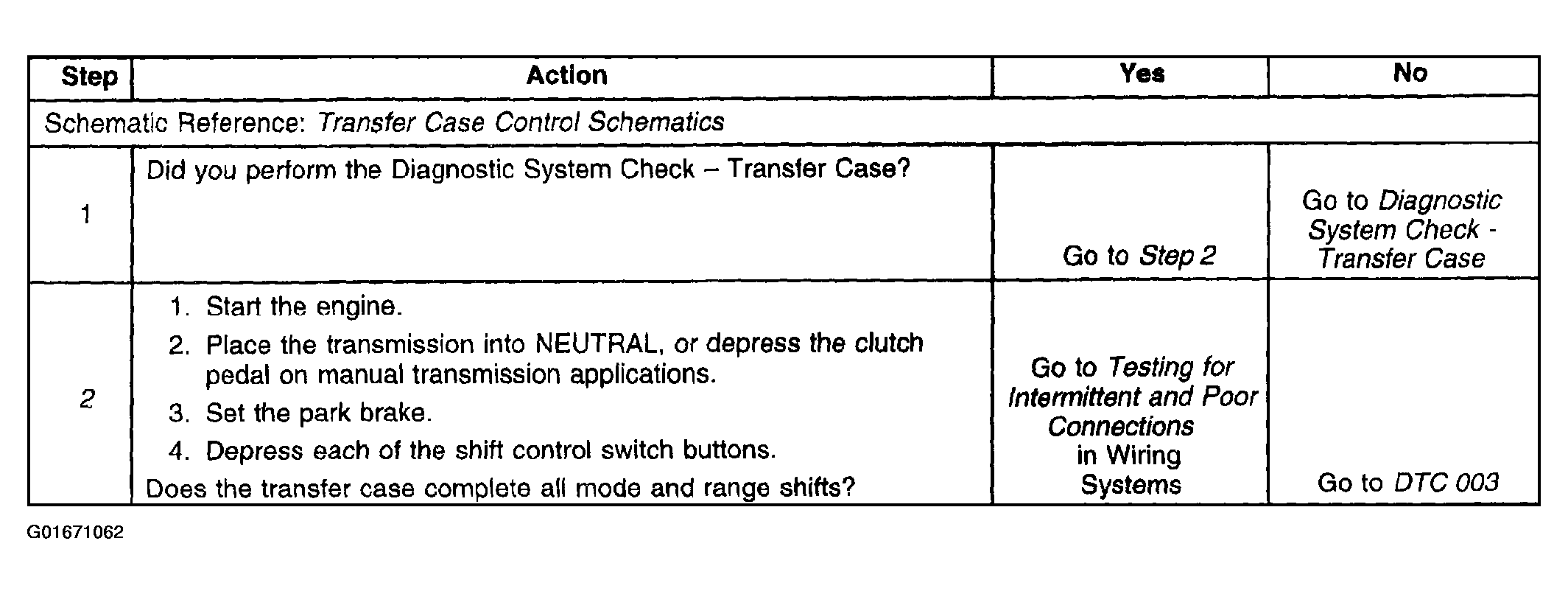

Fig 1: Transfer Case Will Not Complete a Mode or Range Shift
G01671062Courtesy of GENERAL MOTORS CORP.
