Test Description

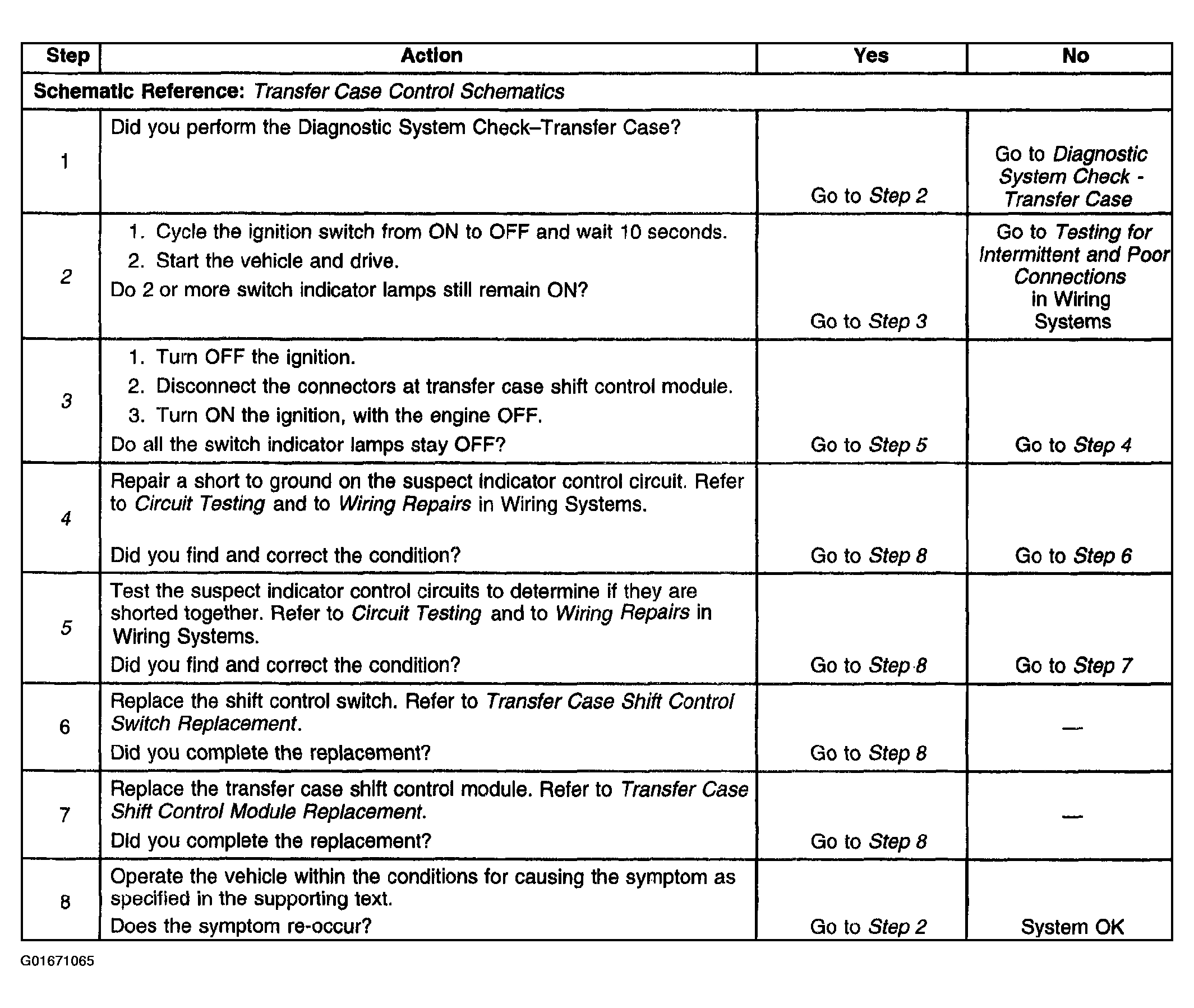

The numbers below refer to the step numbers on the diagnostic table.
2. This step helps to determine intermittent conditions.
3. This step helps to determine if the transfer case shift control module is commanding more than one indicator ON.
4. This step tests and repairs a short to ground in the indicator control circuits.
5. This step tests if more than one indicator control circuits are shorted together.
