Shift Speed Specifications

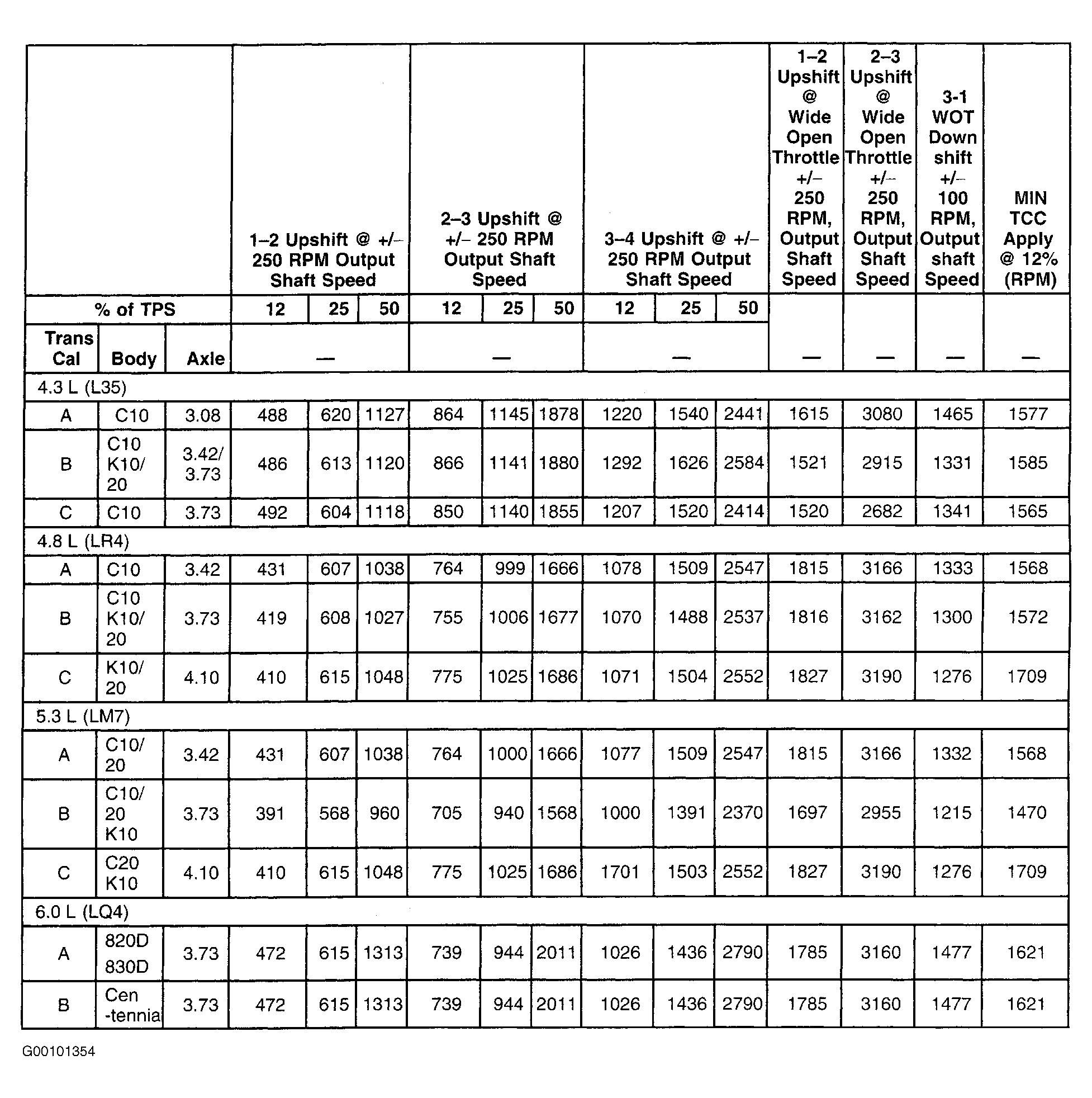

Fig 1: Shift Speed Specifications ("C" & "K" Series)

Courtesy of GENERAL MOTORS CORP.

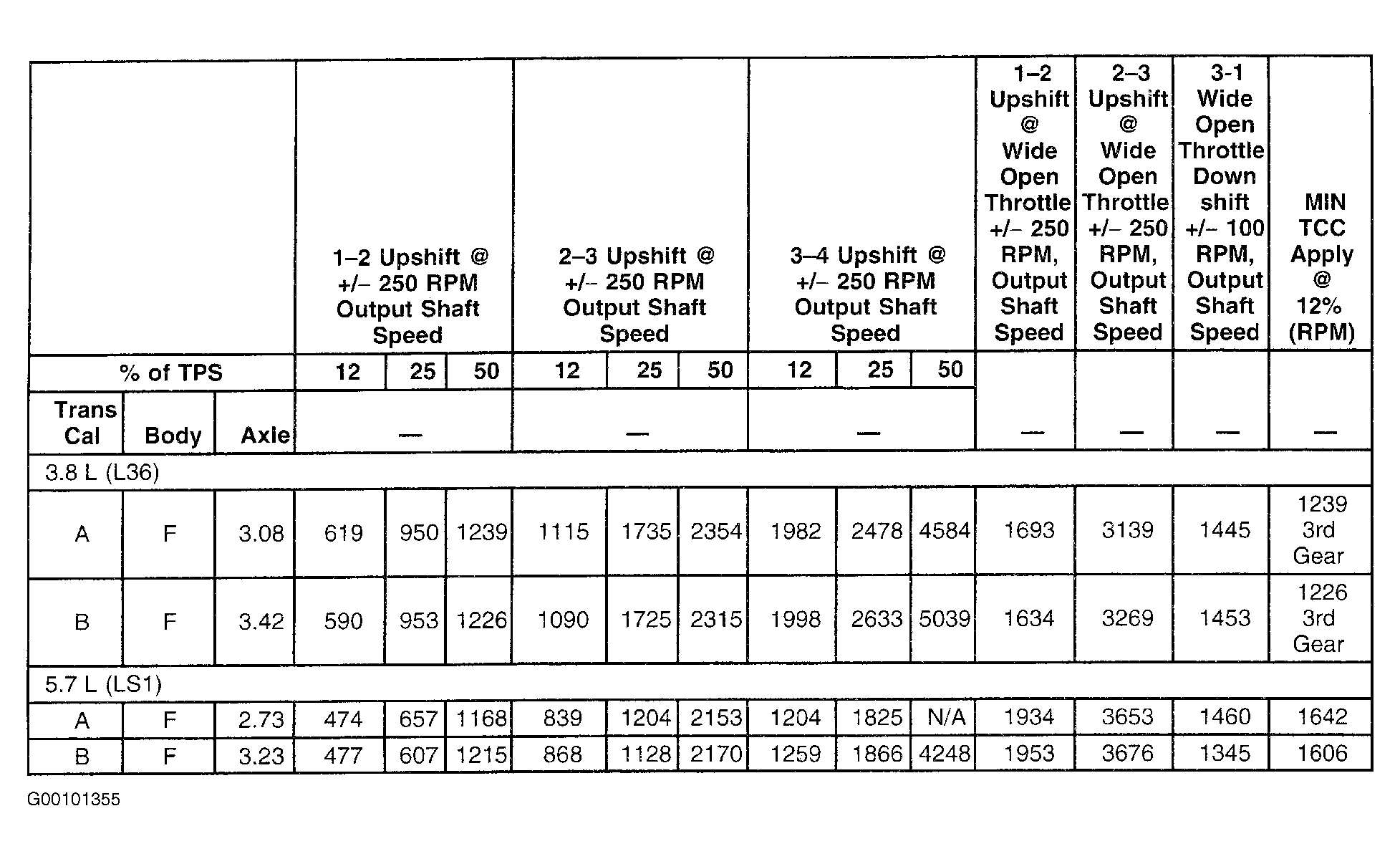

Fig 2: Shift Speed Specifications ("F" Body)

Courtesy of GENERAL MOTORS CORP.

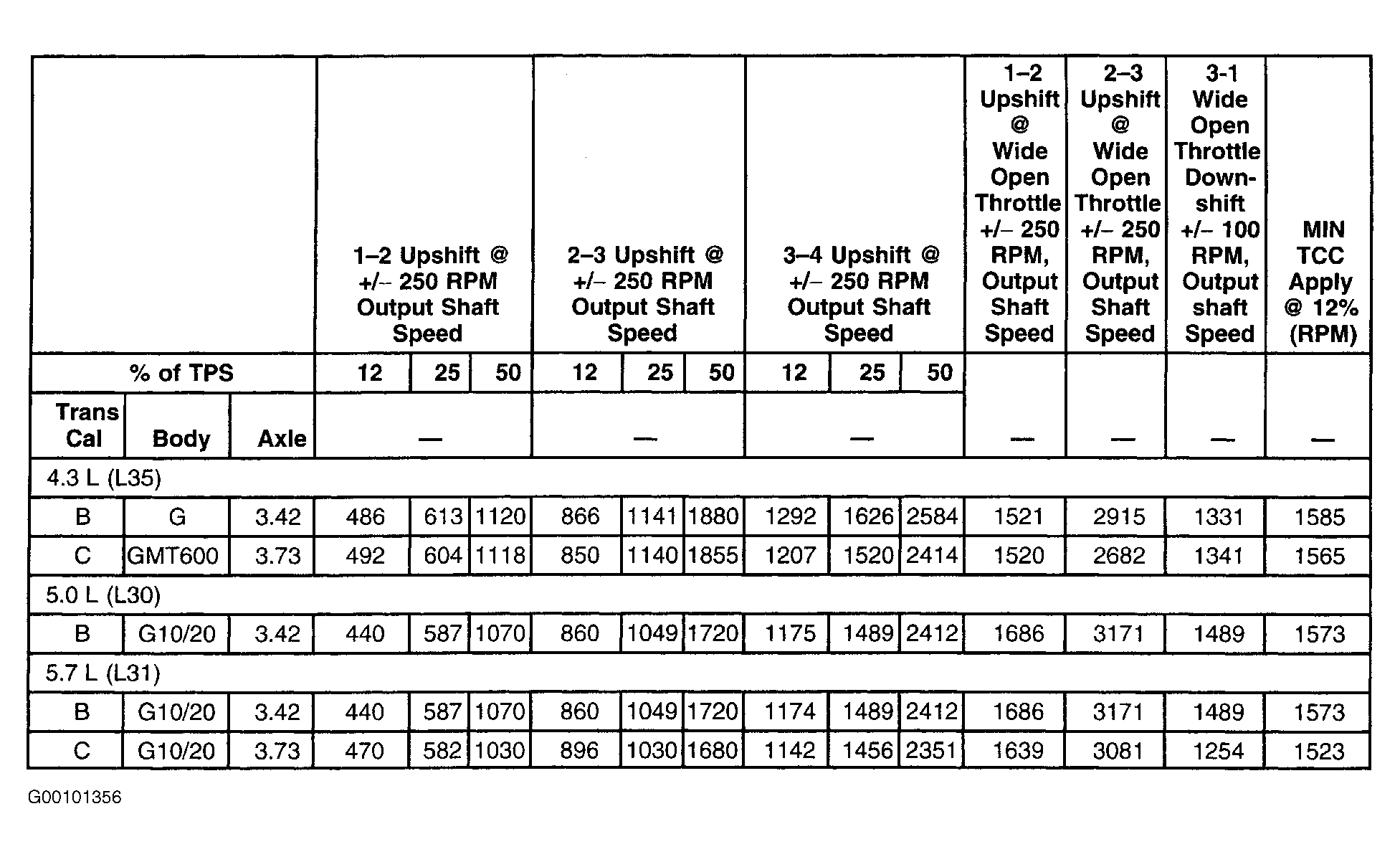

Fig 3: Shift Speed Specifications ("G" Series)

Courtesy of GENERAL MOTORS CORP.

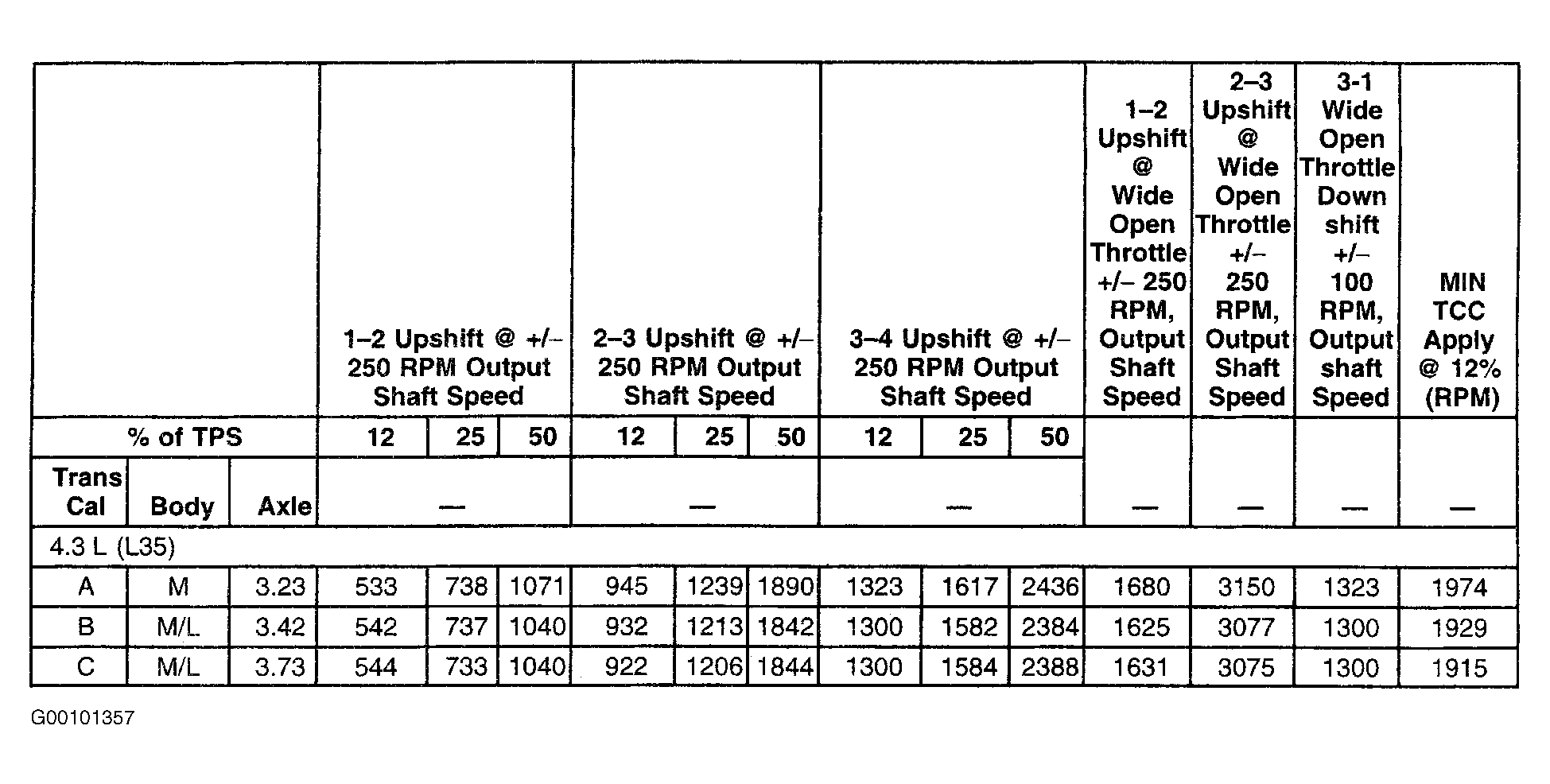

Fig 4: Shift Speed Specifications ("L" & "M" Series)

Courtesy of GENERAL MOTORS CORP.

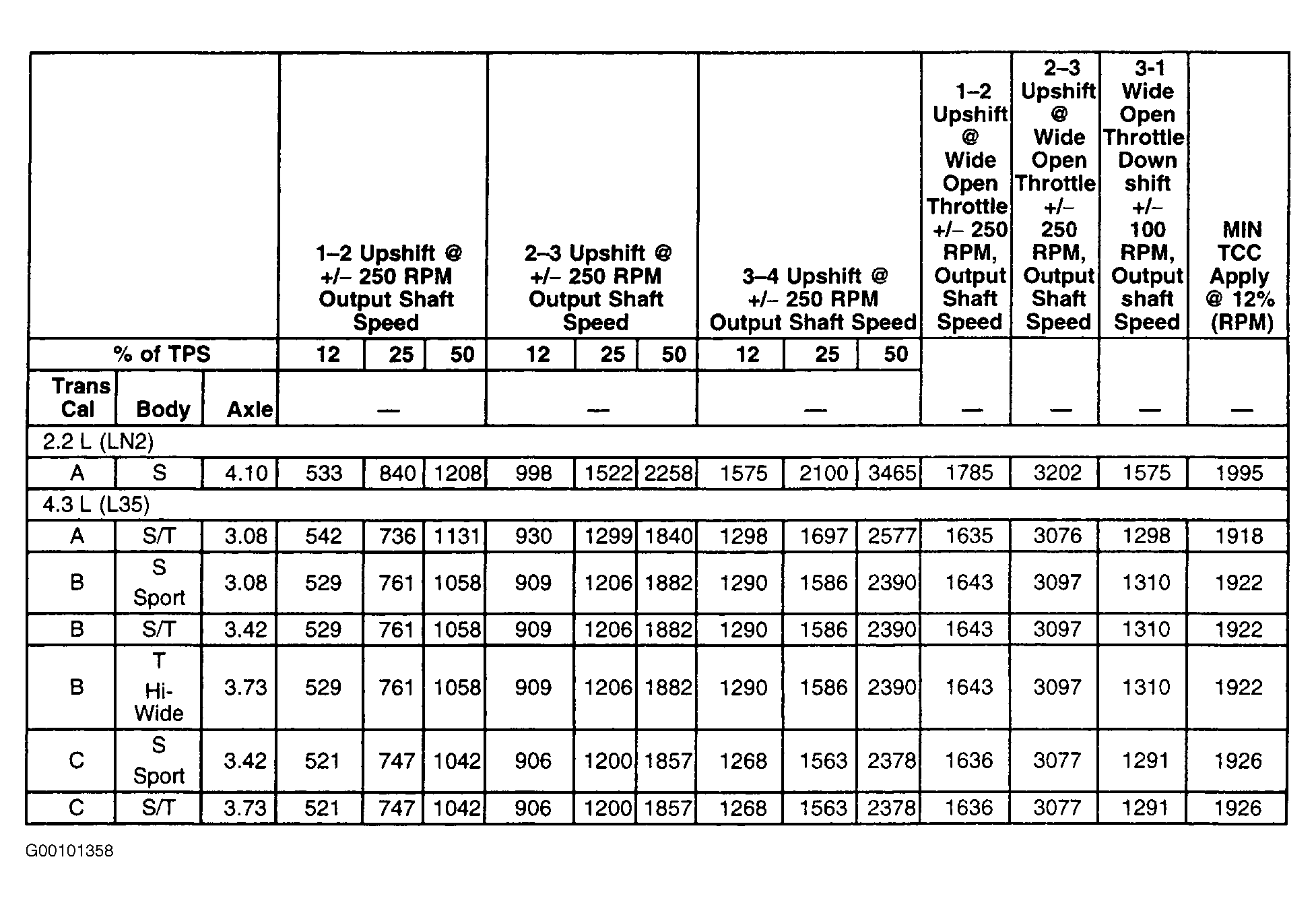

Fig 5: Shift Speed Specifications ("S" & "T" Series)

Courtesy of GENERAL MOTORS CORP.

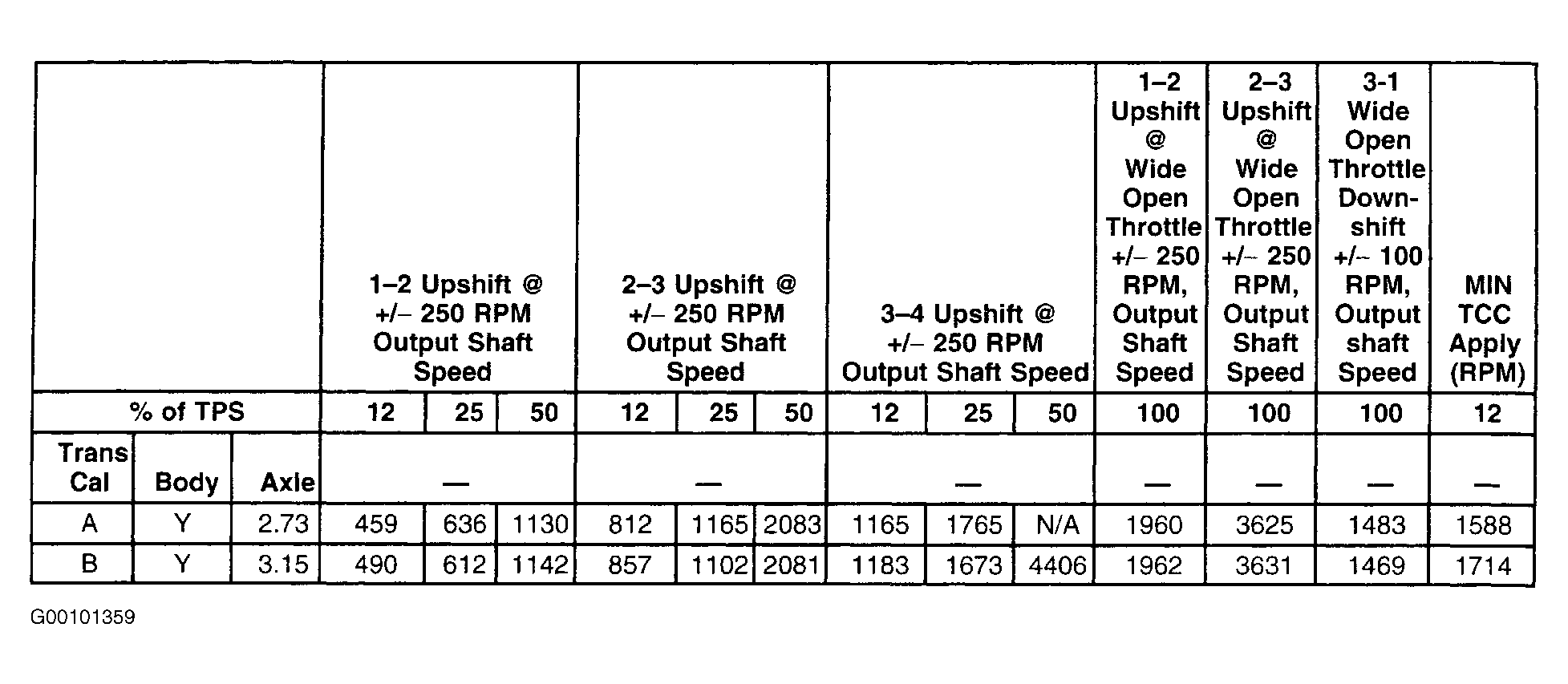

Fig 6: Shift Speed Specifications ("Y" Body)

Courtesy of GENERAL MOTORS CORP.
