Removal Procedure

  1. Remove the spare tire from the spare tire carrier.
  2. Raise and suitably support the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  3. Remove hoist assembly mounting nuts.
  4. Remove hoist assembly mounting bolts from the frame.

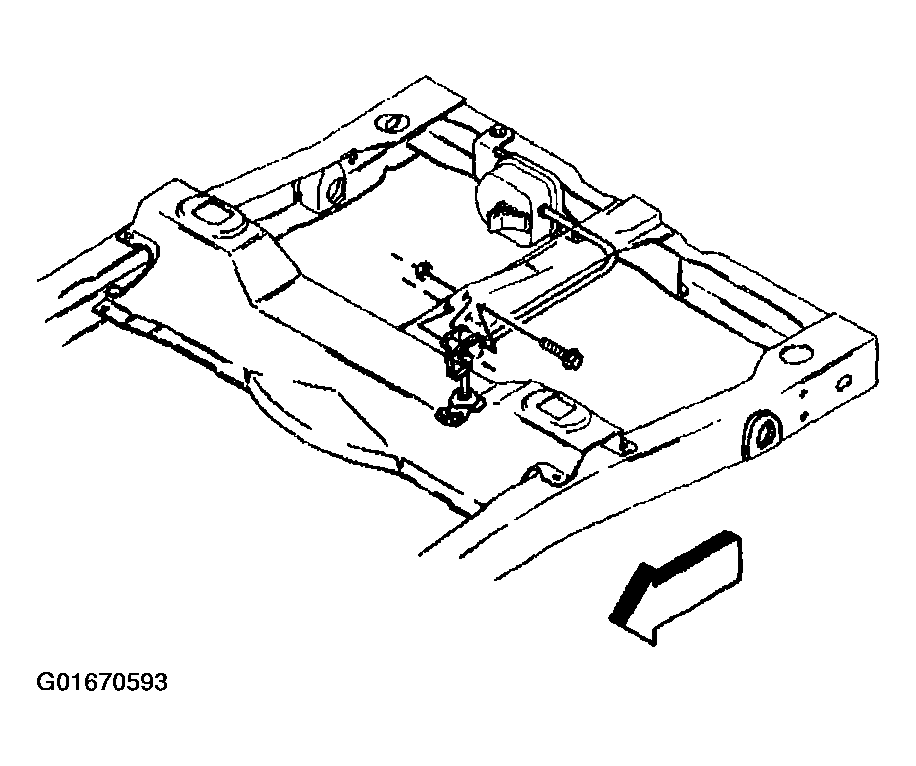

    Fig 1: Removing Hoist Assembly Mounting Nuts And Bolts From Frame (4 Door Utility)
    G01670593Courtesy of GENERAL MOTORS CORP.
  5. Remove hoist assembly mounting bolts from the rear crossmember.
  6. Remove hoist assembly from the vehicle.

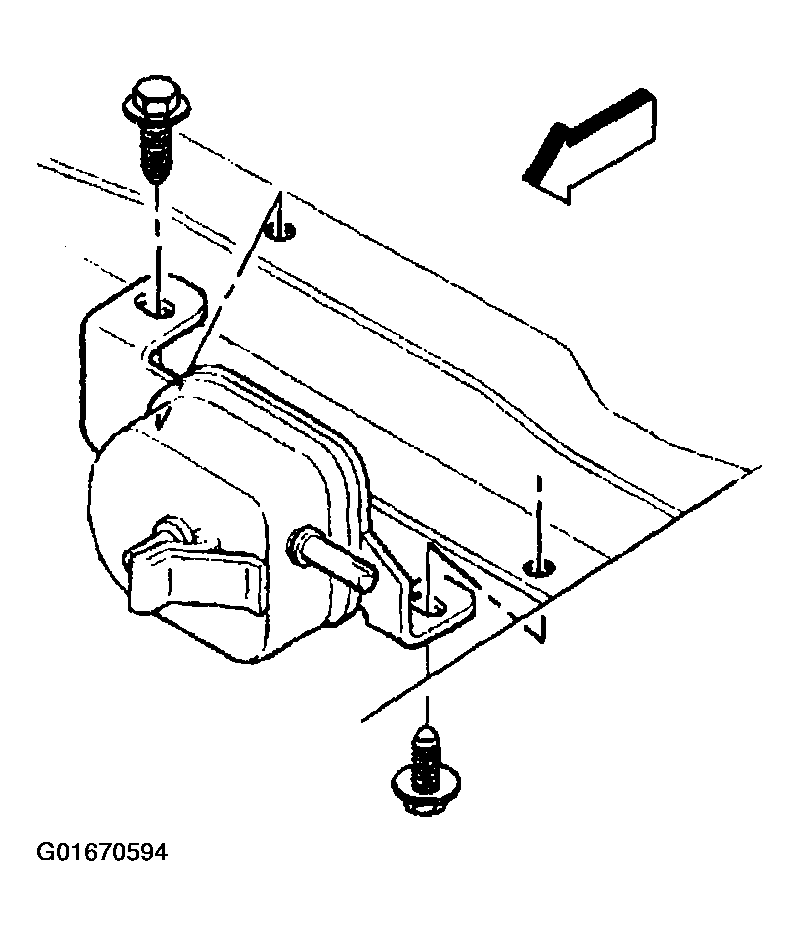

    Fig 2: Removing Hoist Assembly Mounting Bolts From Rear Crossmember (4 Door Utility)
    G01670594Courtesy of GENERAL MOTORS CORP.
