Installation Procedure

  1. Install the hoist assembly to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install hoist assembly mounting bolts to the rear crossmember.

    Tighten

    Tighten the hoist assembly mounting bolts to the rear crossmember to 11 N.m (100 lb in).

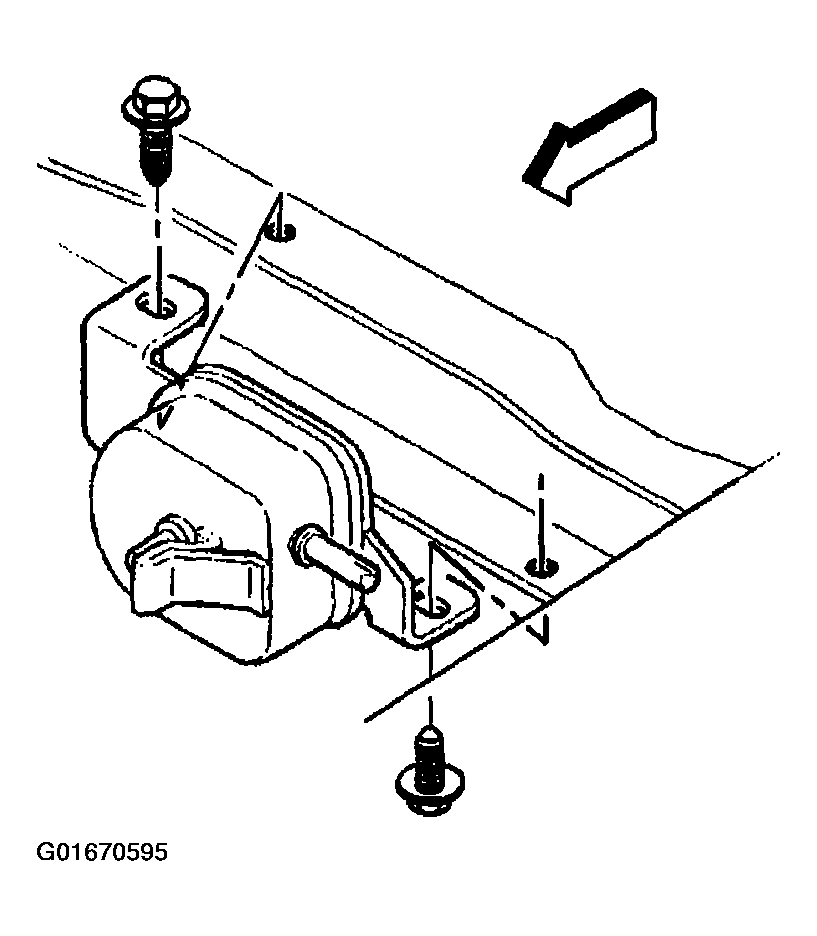

    Fig 1: Installing Hoist Assembly Mounting Bolts To Rear Crossmember (4 Door Utility)
    G01670595Courtesy of GENERAL MOTORS CORP.
  3. Install hoist assembly mounting bolts to the frame.
  4. Install hoist assembly mounting nuts.

    Tighten

    Tighten the hoist assembly mounting nuts to 37 N.m (27 lb ft).

  5. Lower the vehicle.
  6. Install the spare tire to the spare tire carrier.

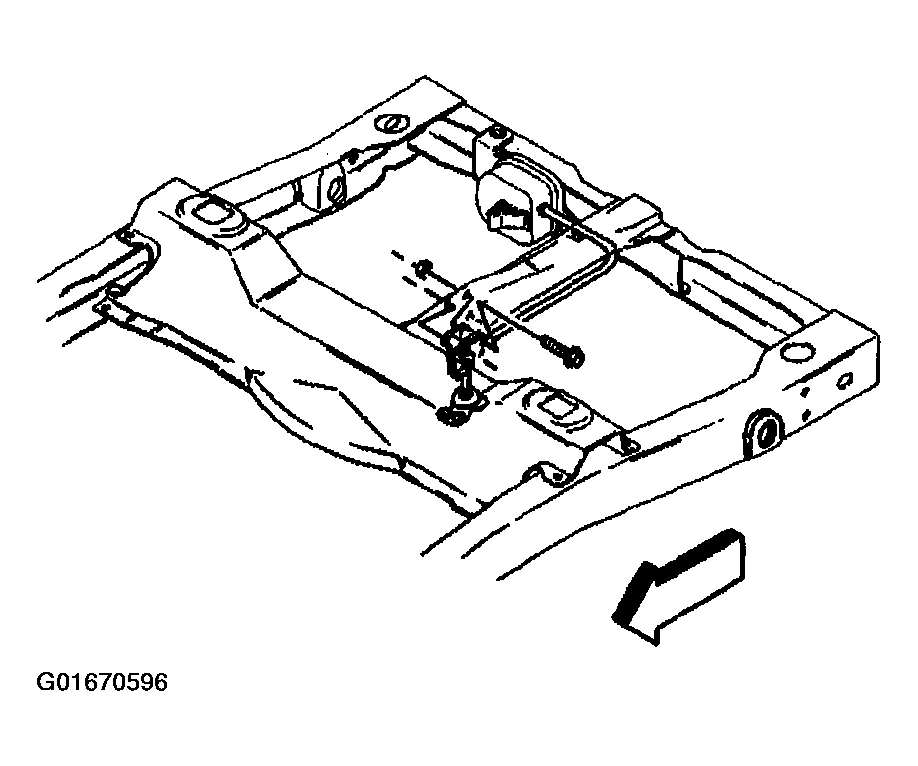

    Fig 2: Installing Hoist Assembly Mounting Nuts And Bolts To Frame
    G01670596Courtesy of GENERAL MOTORS CORP.
