Removal Procedure

  1. Remove the spare tire cover.
  2. Remove the spare tire from the spare tire carrier mounting nut.
  3. Remove the spare tire from the spare tire carrier.

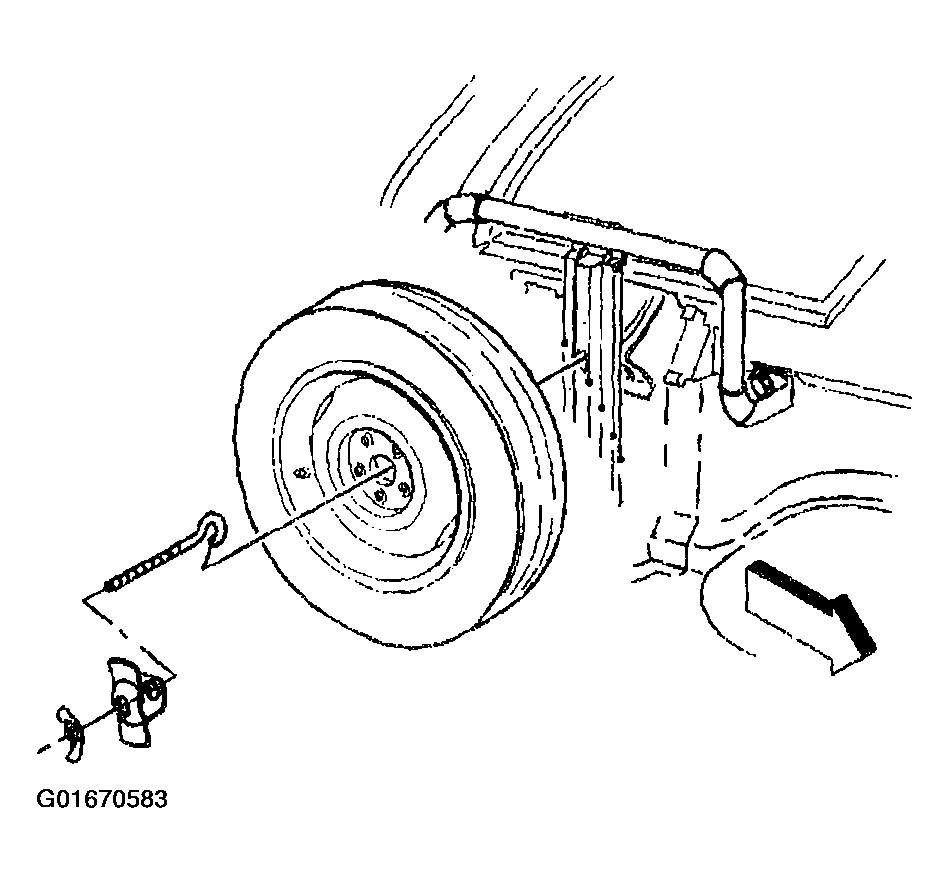

    Fig 1: Removing Spare Tire From Spare Tire Carrier (2 Door RWD Utility)
    G01670583Courtesy of GENERAL MOTORS CORP.
  4. Remove the spare tire carrier to body side inner panel mounting bolts.
  5. Remove the spare tire carrier from the vehicle.

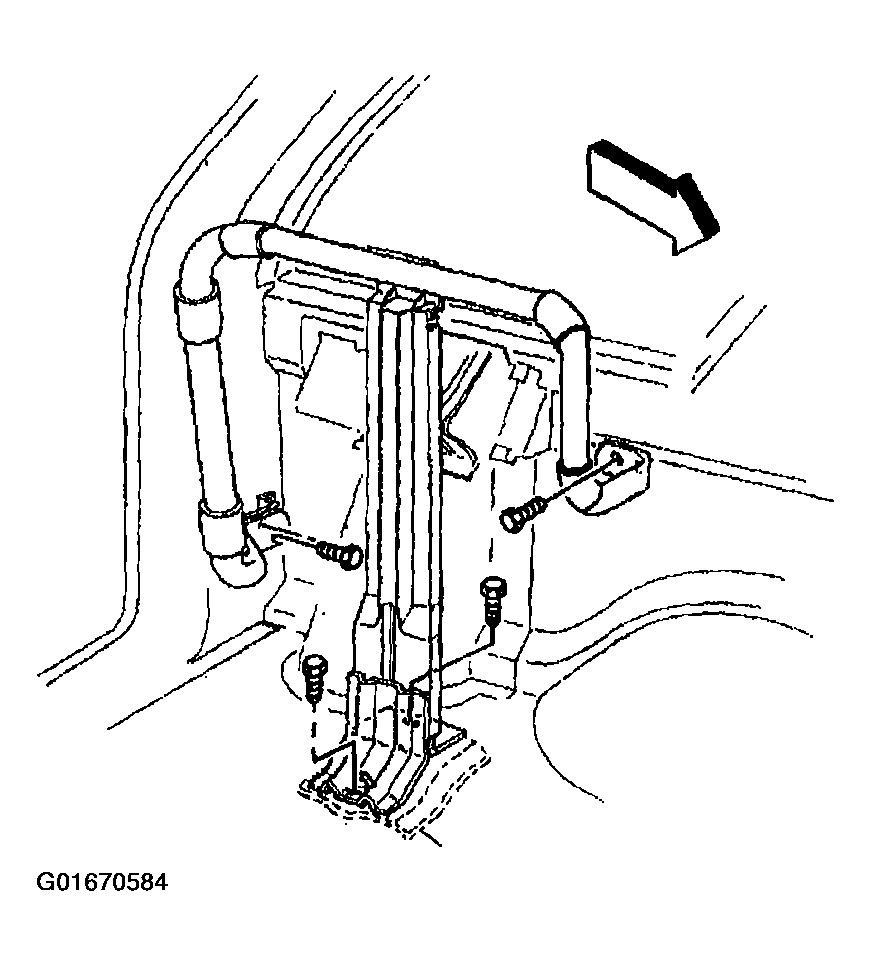

    Fig 2: Removing Spare Tire Carrier To Body Side Inner Panel Mounting Bolts (2 Door RWD Utility)
    G01670584Courtesy of GENERAL MOTORS CORP.
