Installation Procedure

  1. Install the spare tire carrier to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the spare tire carrier to body side inner panel mounting bolts.

    Tighten

    Tighten the spare tire carrier to body side inner panel mounting bolts to 30 N.m (22 lb ft).

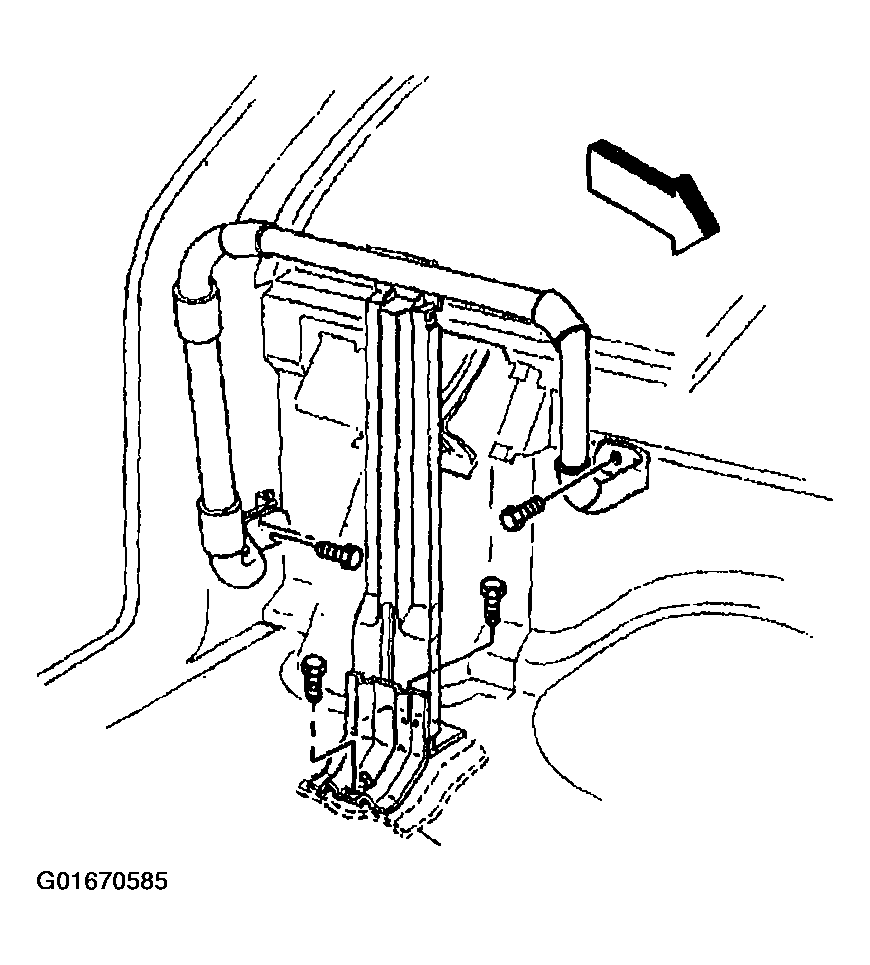

    Fig 1: Installing Spare Tire Carrier To Body Side Inner Panel Mounting Bolts (2 Door RWD Utility)
    G01670585Courtesy of GENERAL MOTORS CORP.
  3. Install the spare tire to the spare tire carrier.
  4. Install the spare tire to the spare tire carrier mounting nut.
  5. Install the spare tire cover.

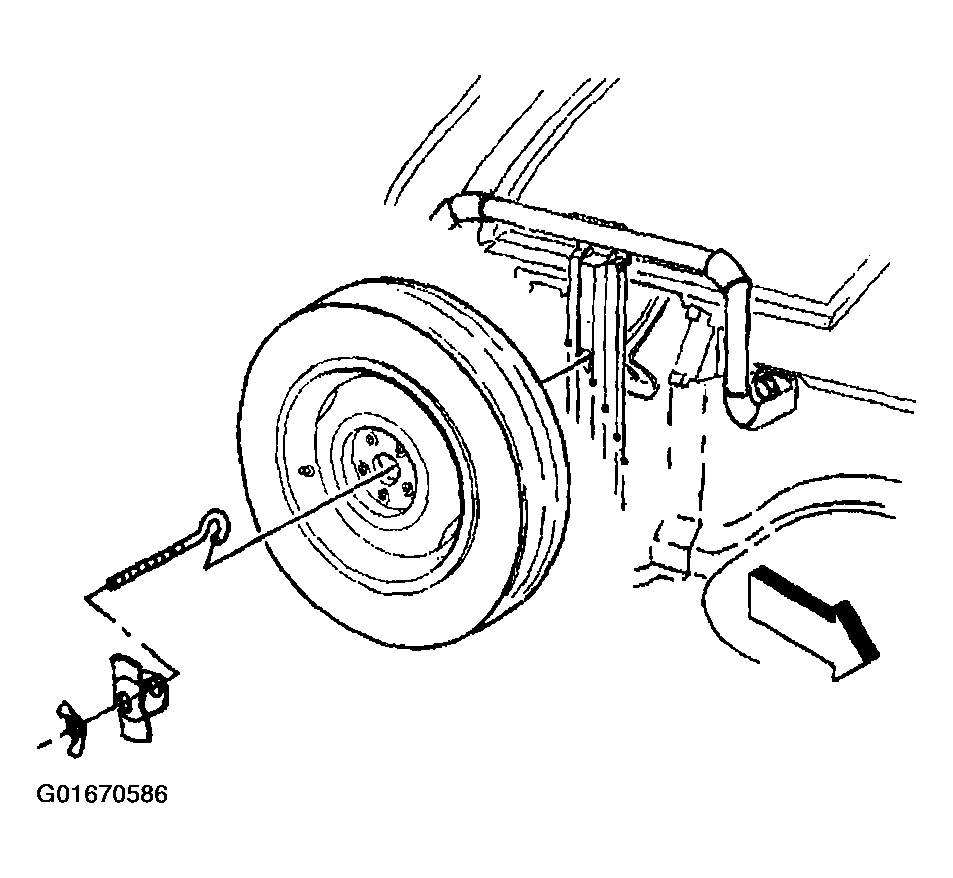

    Fig 2: Installing Spare Tire To Spare Tire Carrier (2 Door RWD Utility)
    G01670586Courtesy of GENERAL MOTORS CORP.
