Removal Procedure

  1. Remove the spare tire from the spare tire carrier mounting nuts.
  2. Remove the spare tire from the spare tire carrier.

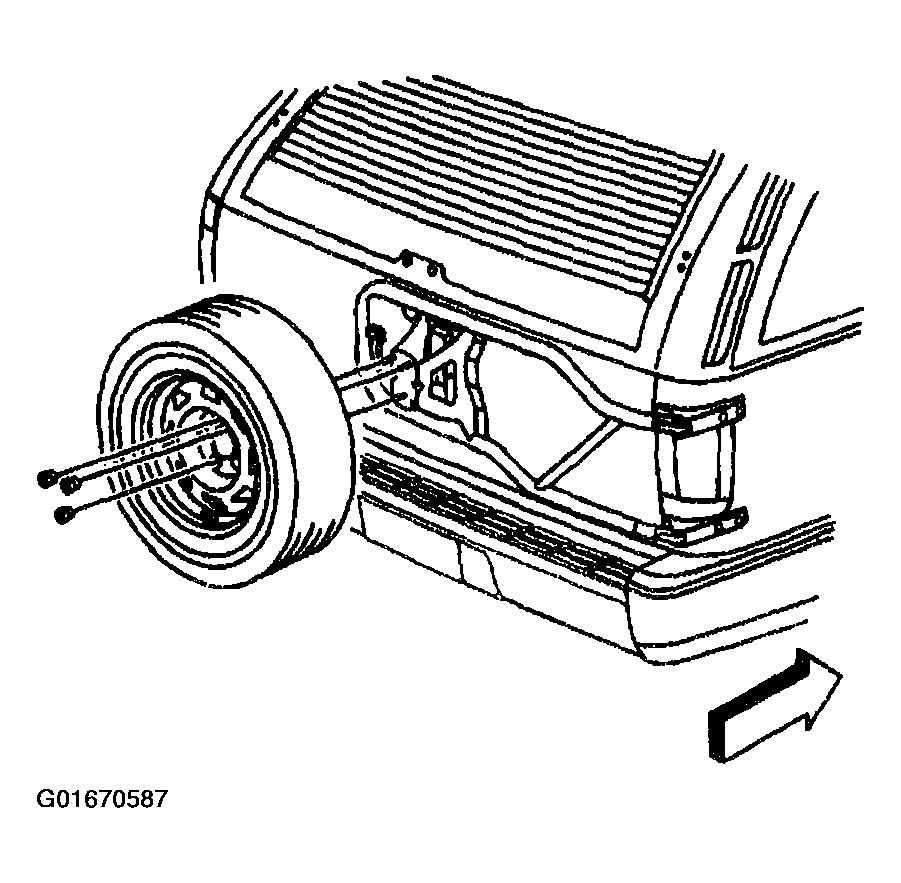

    Fig 1: Removing Spare Tire From Spare Tire Carrier (2 Door 4WD Utility)
    G01670587Courtesy of GENERAL MOTORS CORP.
  3. Open the spare tire carrier.
  4. Remove the spare tire carrier mounting bolts and the washers.
  5. Remove the spare tire carrier from the vehicle.

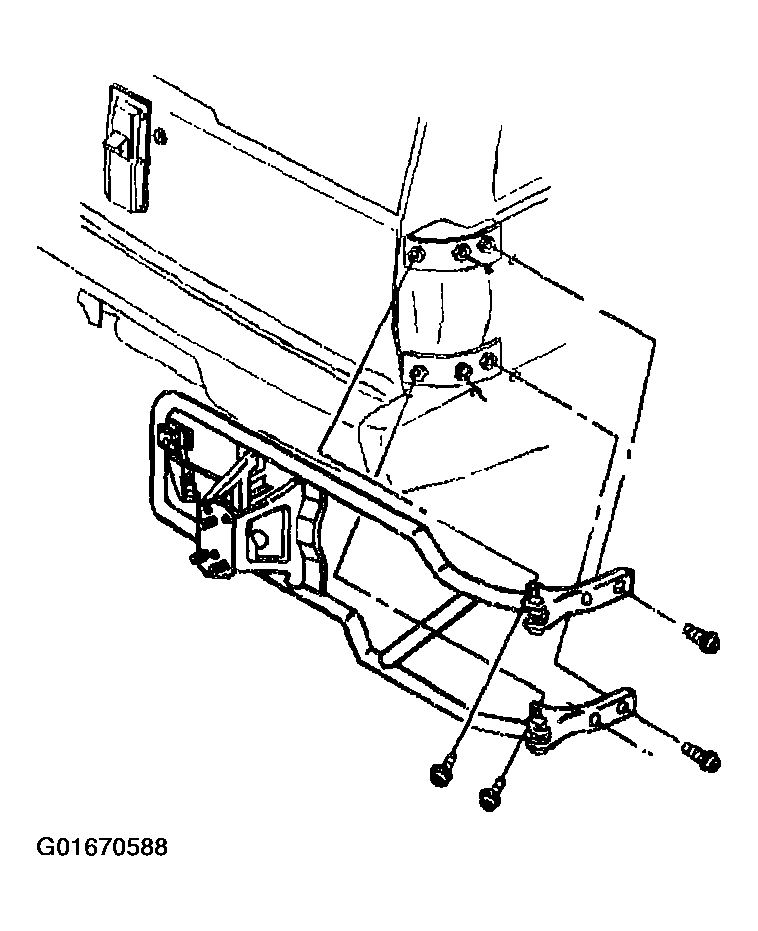

    Fig 2: Removing Spare Tire Carrier From Vehicle (2 Door 4WD Utility)
    G01670588Courtesy of GENERAL MOTORS CORP.
