Tire Diagnosis - Irregular or Premature Wear: Notes

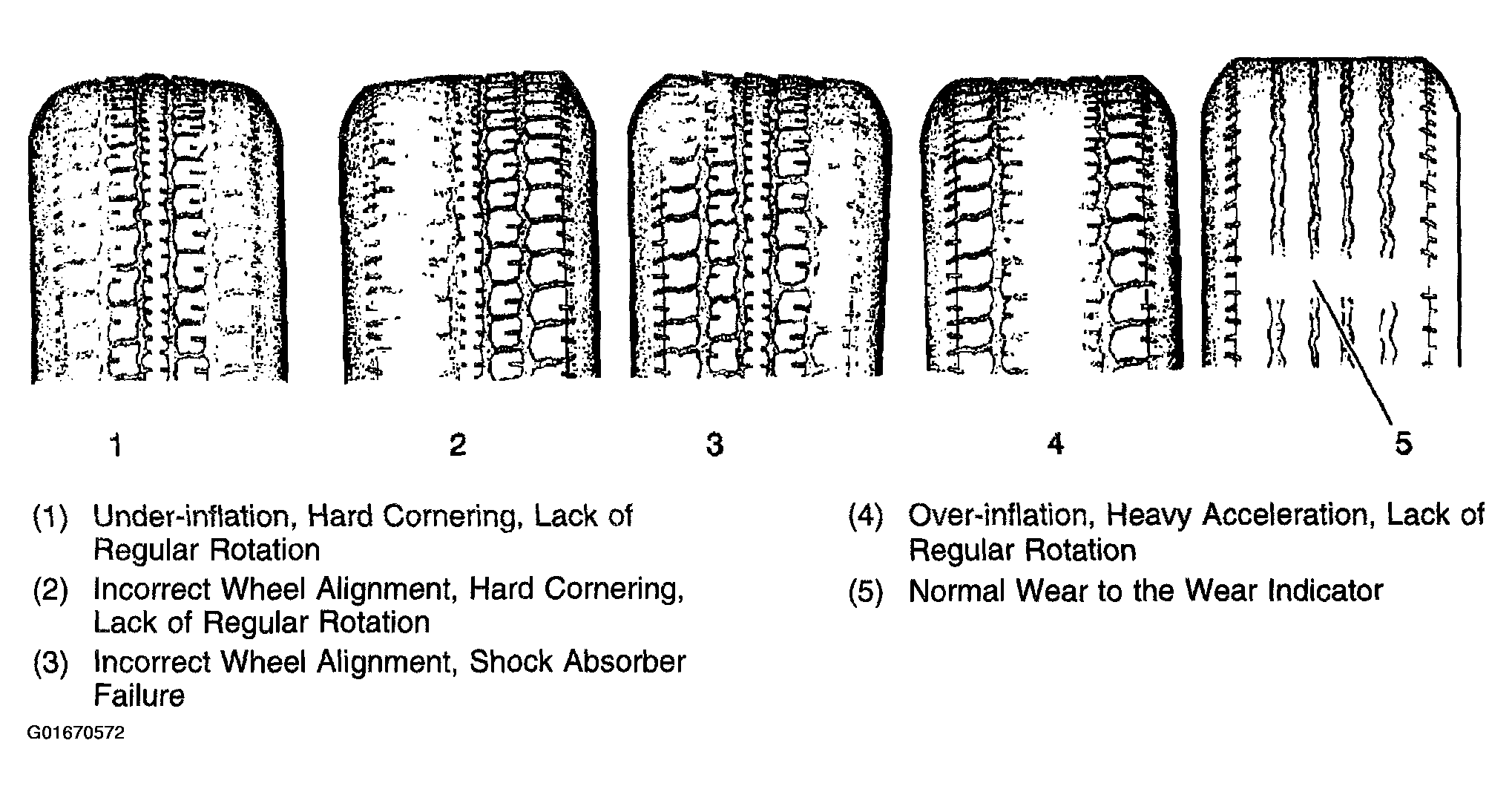

Fig 1: Tire Wear

G01670572

Courtesy of GENERAL MOTORS CORP.
