Front Caster and Camber Adjustment (4WD)
Important: Before adjusting the caster angle and camber angle, raise and release the front bumper. Do this twice in order to allow the vehicle to return to a normal height. Refer to Wheel Alignment Specifications .

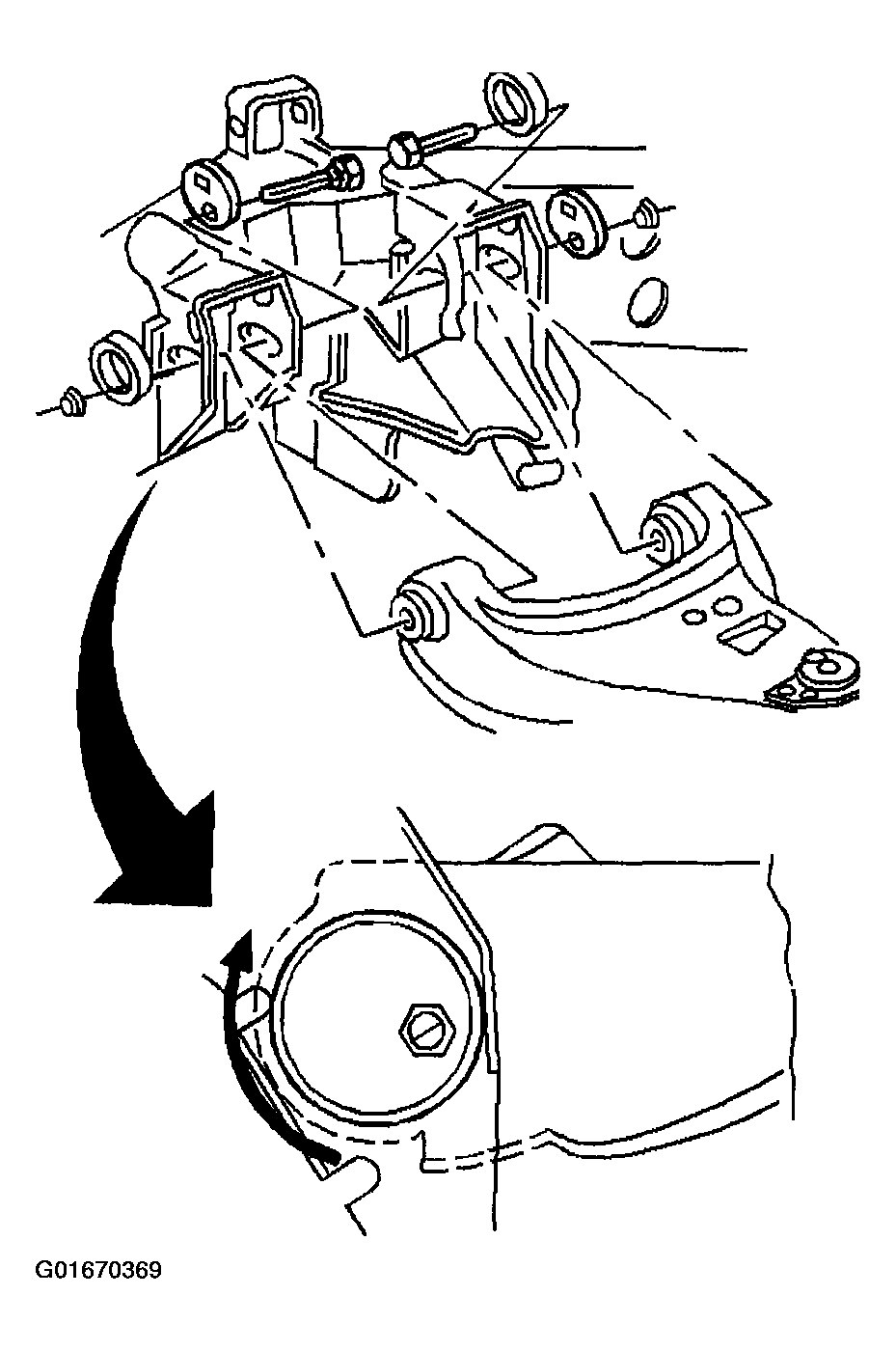

- Use the cams on the upper control arm frame attaching bolts to adjust the caster and the camber.
To adjust the caster and the camber, loosen the upper control arm-to-frame attaching nuts. Rotate the cam by rotating the bolt head.
- Caster-To increase positive caster, move the front cam lobe inboard and move the rear cam lobe outboard.
- Camber-To increase positive camber, move the front and the rear cam lobes inboard.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices. - Tighten the nuts after you select the proper cam position.
Tighten
Tighten the nuts to 115 N.m (85 lb ft).
