Wheel Bearing Diagnosis (Tapered): Smears

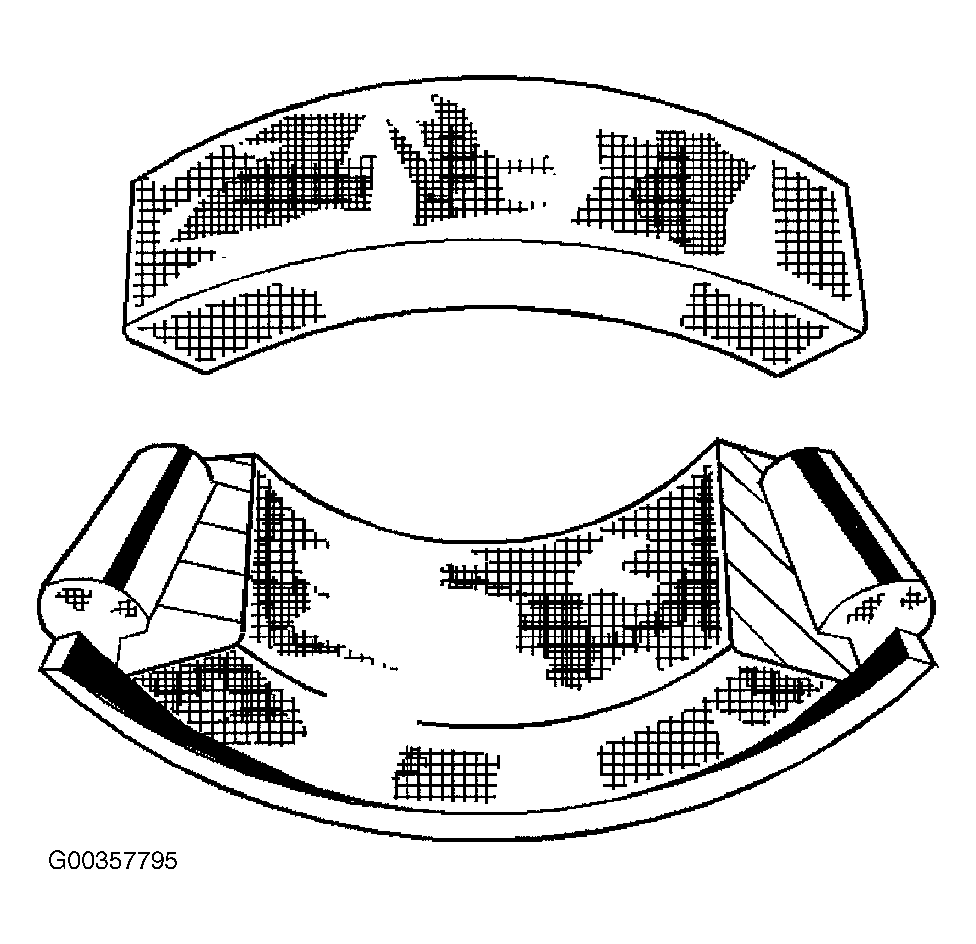

Fig 1: Smears

Courtesy of GENERAL MOTORS CORP.

The smearing of the metal is due to slippage. Slippage can be caused by poor fits, lubrication, overheating, overloads, or handling damage.

If this condition occurs, perform the following:

1. Check the seals.
2. Check for proper fit.
3. Check for proper lubrication.
4. Clean all the parts and the housings.
5. Replace the bearings.
