Wheel Bearing Diagnosis (Tapered): Misalignment

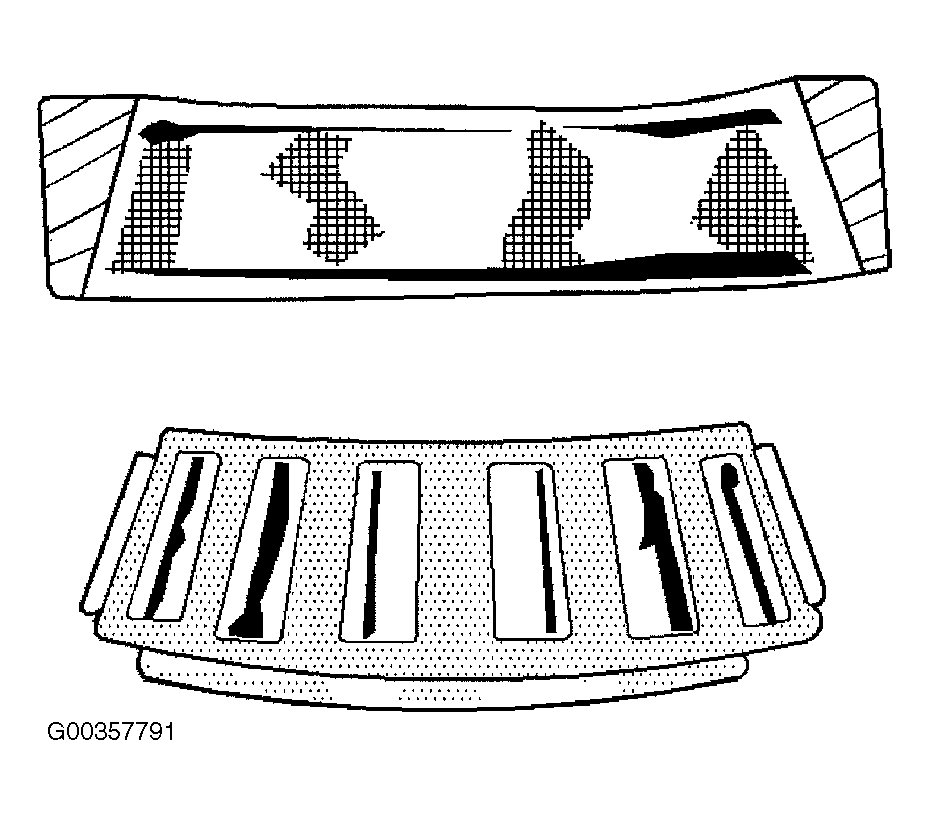

Fig 1: Misalignment

Courtesy of GENERAL MOTORS CORP.

The outer race is misaligned due to a foreign object.

1. Clean all the parts and the housings
2. Ensure the races are properly seated.
3. Replace the bearing.
