Wheel Bearing Diagnosis (Tapered): Galling

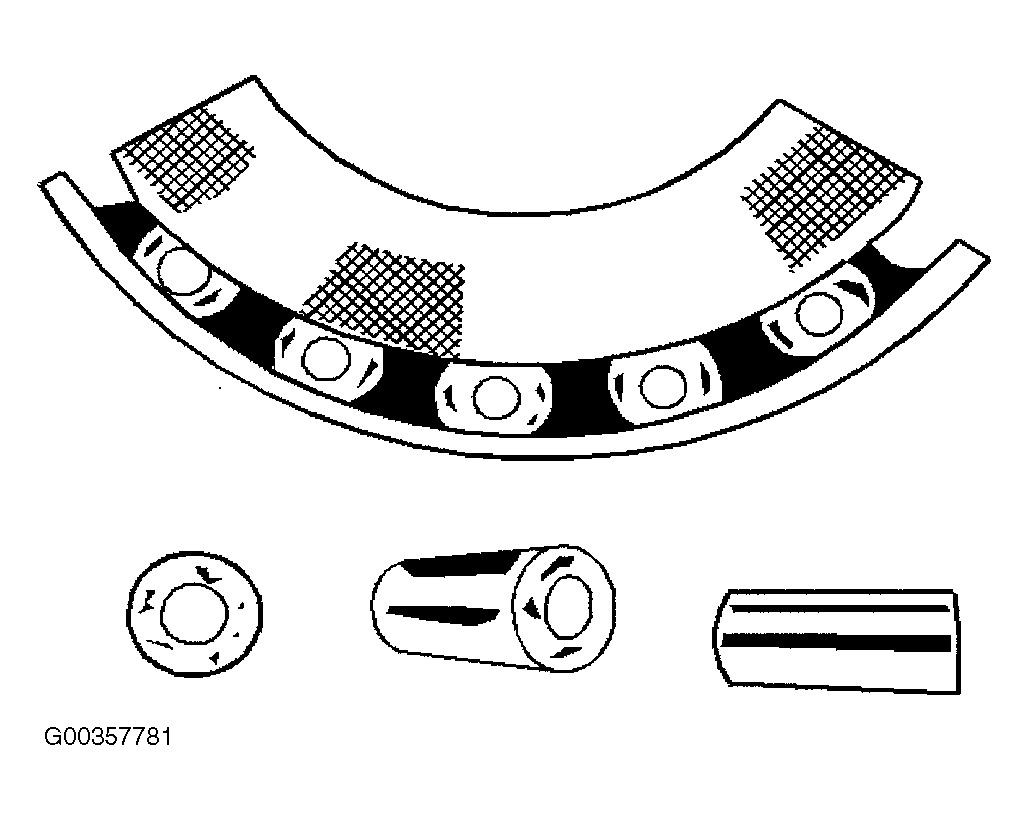

Fig 1: Galling

Courtesy of GENERAL MOTORS CORP.

The pattern on the races and the rollers is caused by fine abrasives.

1. Check the seals.
2. Check for proper lubrication.
3. Replace the bearing.
