Fatigue Spalling

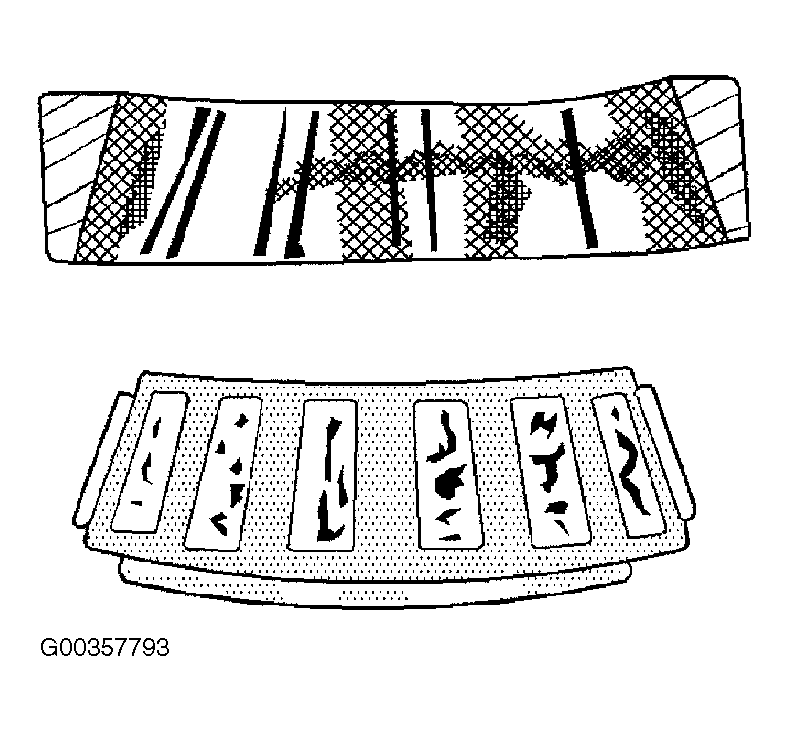

Fig 1: Fatigue Spalling
G00357793Courtesy of GENERAL MOTORS CORP.

The surface is flaked with metal due to bearing fatigue.

  1. Clean all the parts and the housings.
  2. Replace the bearing.
