Wheel Bearing Diagnosis (Tapered): Etching

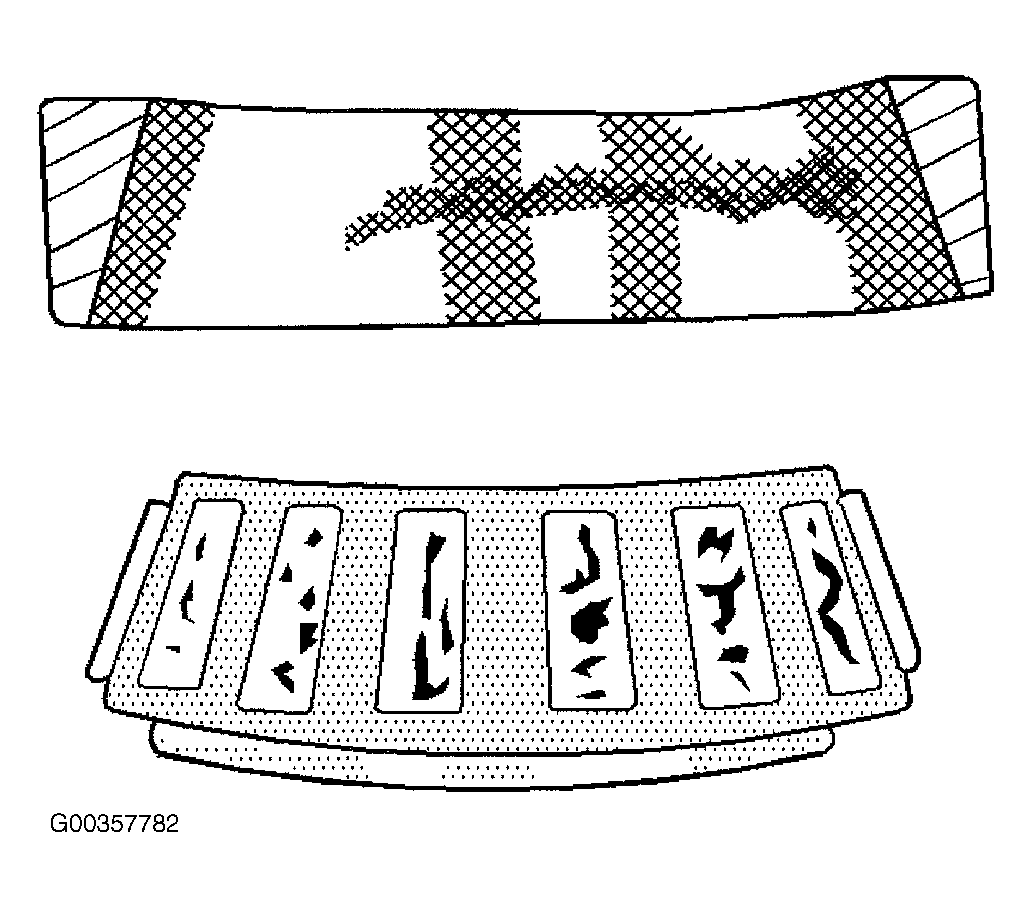

Fig 1: Etching

Courtesy of GENERAL MOTORS CORP.

The bearing surfaces appear gray or grayish black in color, with related etching away of material usually at roller spacing.

1. Check the seals.
2. Check for proper lubrication.
3. Clean all of the parts and the housings.
4. Replace the bearings.
