Wheel Stud (Rear Drum Brakes): Installation

Start the new stud into the axle flange hole by pressing firmly with your hand.
Install a washer and thread the lug nut on the wheel stud with the flat side of the lug nut to the vehicle.
Tighten the lug nut in order to draw the wheel stud into the rear of the flange.
Remove the lug nut and washers from the wheel stud. See Fig 1.

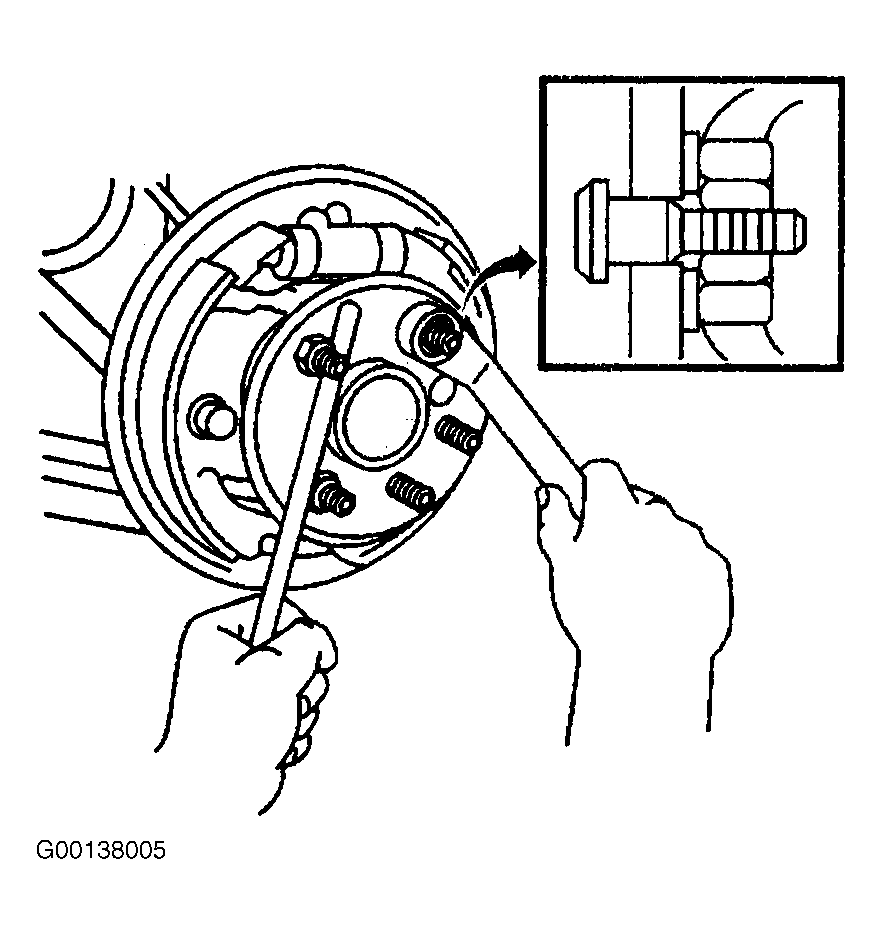

Fig 1: Installing Wheel Stud Into Rear Axle (Drum Brakes)
Courtesy of GENERAL MOTORS CORP.
Install the brake drum. See Figure.
Install the tire and wheel.
Lower the vehicle.
