Wheel Stud (Rear Disc Brakes): Removal

  1. Raise and support the vehicle.
  2. Remove the tire and wheel assembly.
  3. Remove the rotor.
  4. Remove the wheel stud from the axle flange using the Ball Joint Removal (J 43631). See Fig 1. See SPECIAL TOOLS .

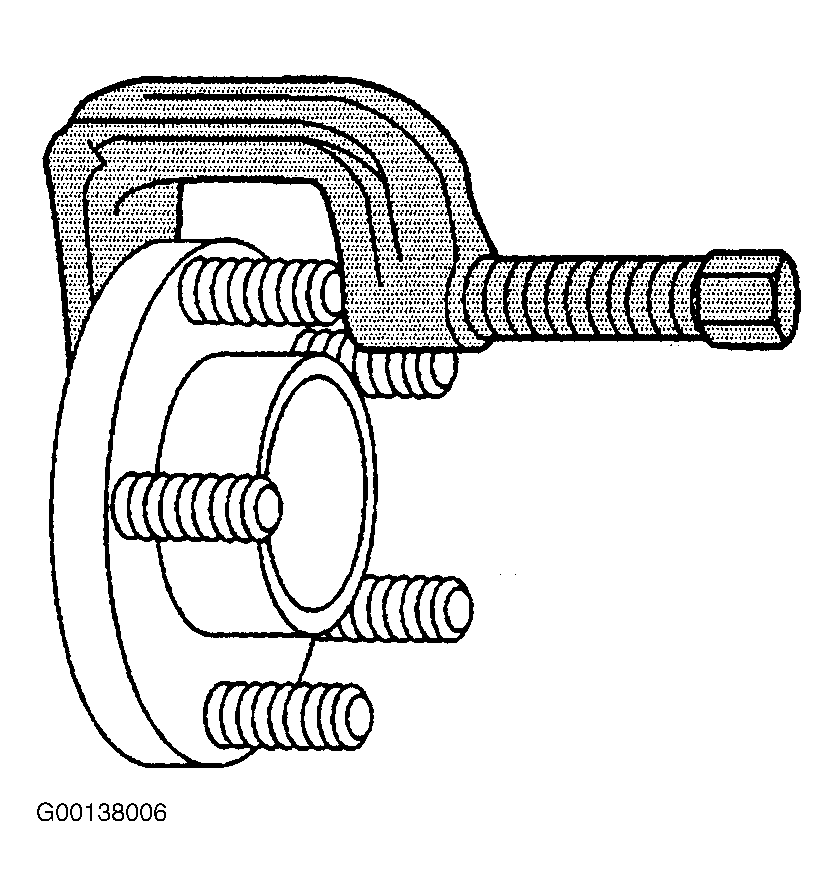

Fig 1: Removing Rear Wheel Stud With Ball Joint Remover (Disc Brakes)
G00138006Courtesy of GENERAL MOTORS CORP.
