Wheel Stud (Rear Disc Brakes): Installation

1. Install the stud into the axle flange.
2. Install the 4 washers and the lug nut to the stud. See Fig 1.
3. Tighten the lug nut in order to draw the stud into the flange until the stud fully seats.
4. Remove the lug nut and the washers.
5. Install the rotor.
6. Install the tire and wheel assembly.
7. Lower the vehicle.

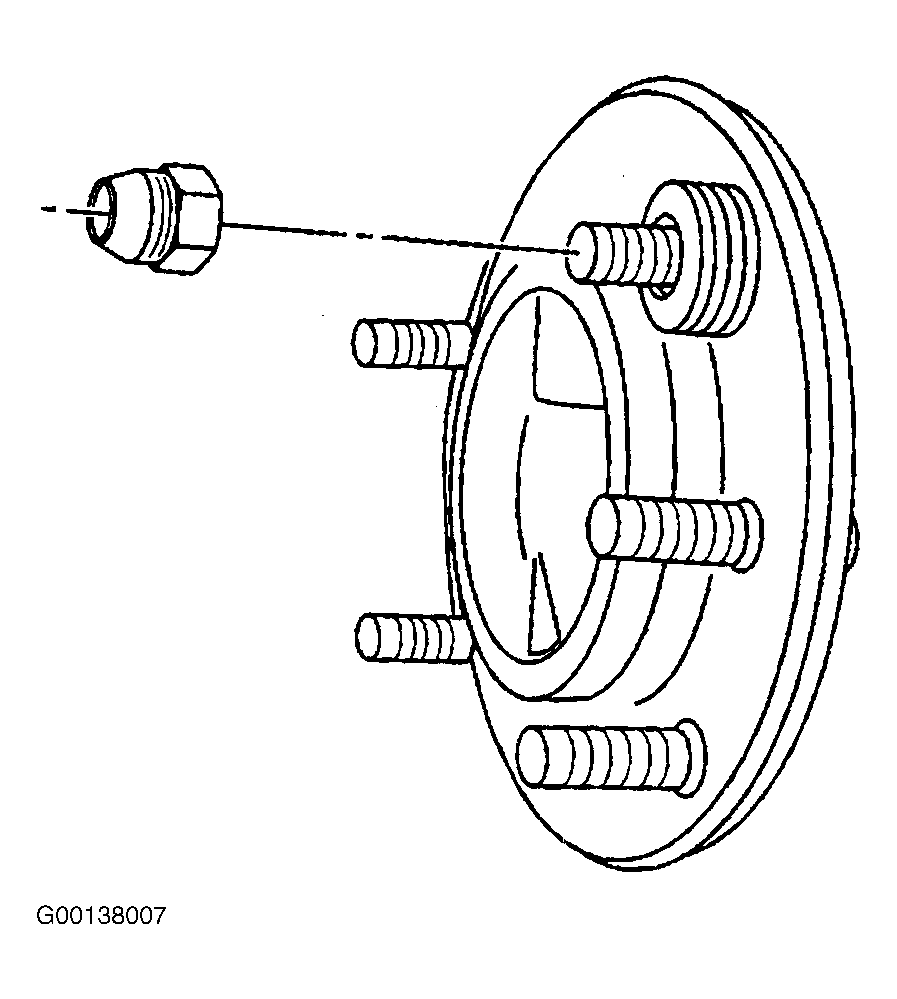

Fig 1: Installing Rear Lug Nut Stud

Courtesy of GENERAL MOTORS CORP.
