Stabilizer Bar (AWD): Installation

  1. Install the stabilizer bar to the rear axle.

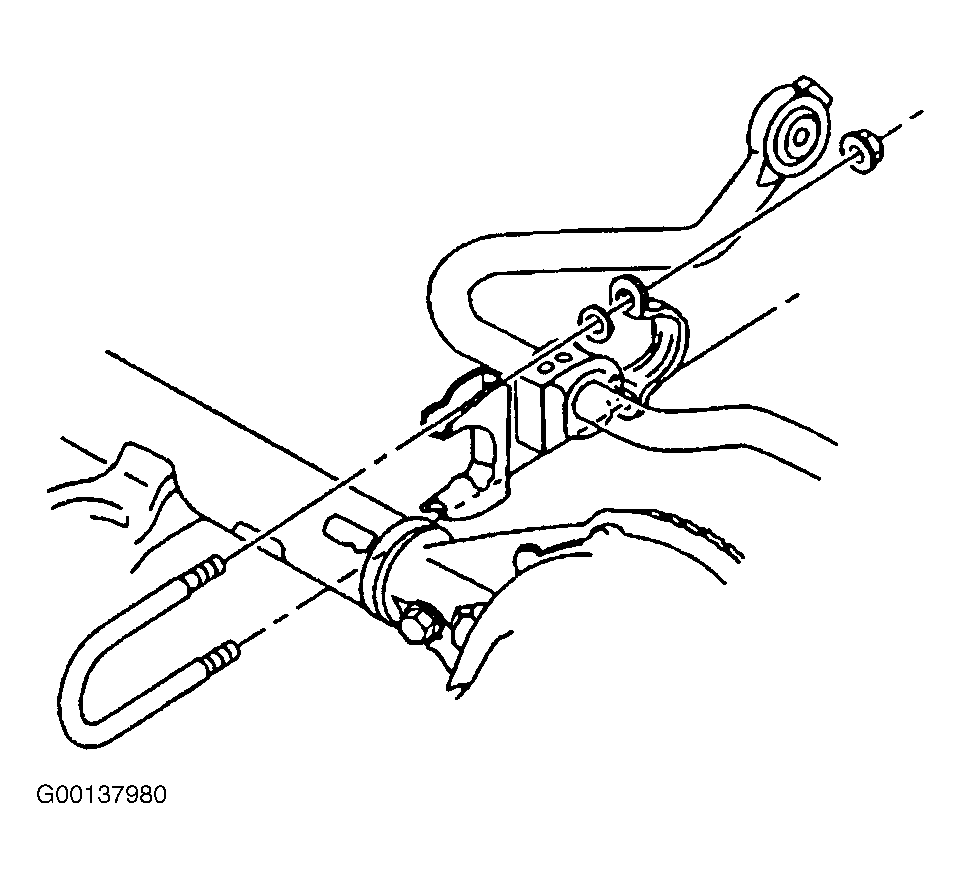

  2. Install the insulators, the clamps, and the U-bolts. See Figure.
  3. Install the nuts to the U-bolts; Then tighten the stabilizer clamp U-bolts. TORQUE SPECIFICATIONS
  4. Install the stabilizer bar to the link mounting bolt. See Figure.
  5. Install the stabilizer bar to the link nut; Then tighten the upper link.
  6. Lower the vehicle.
