Removal Procedure

  1. Remove the rotor. Refer to Wheel Hub, Bearing, and Seal Replacement (RWD Pickup)  or Wheel Hub, Bearing, and Seal Replacement (4WD Pickup and Utilities) .
  2. Remove the wheel stud.
    • Press the stud out using an arbor press.
    • Do not damage the wheel mounting surface on the wheel hub flange.

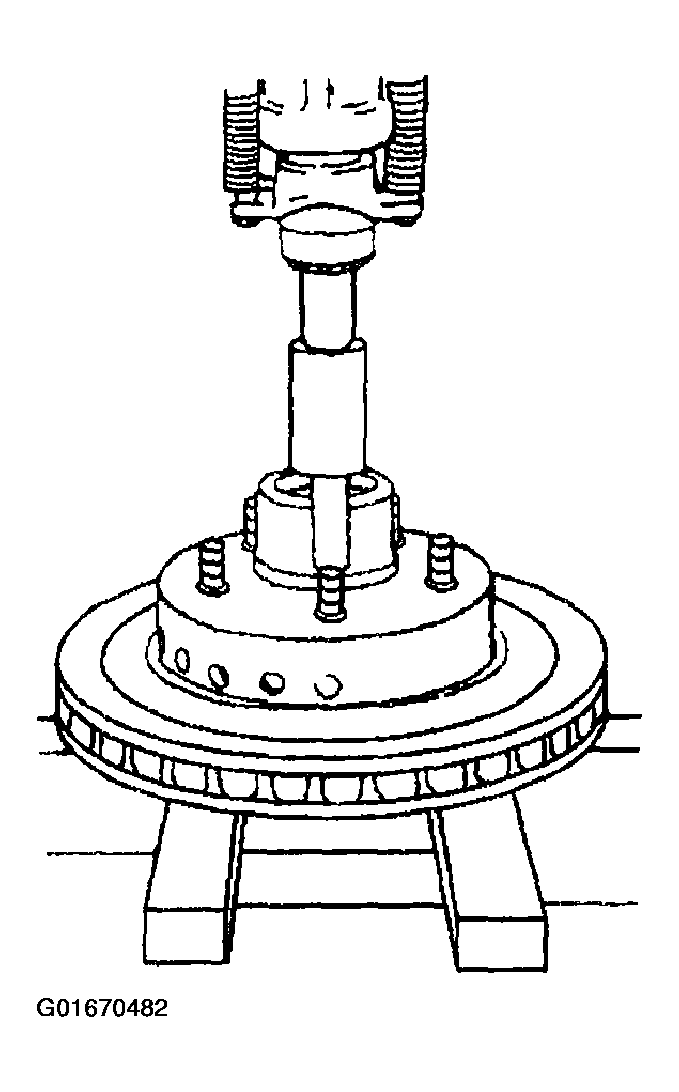

      Fig 1: Removing Wheel Stud (RWD)
      G01670482Courtesy of GENERAL MOTORS CORP.
