Installation Procedure

  1. Install the wheel stud to the wheel hub and bearing.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install 4 washers and the nut to the wheel stud.

    Tighten

    Tighten the wheel stud nut to 130 N.m (95 lb ft), drawing in the wheel stud.

  3. Remove the nut and the washers.
  4. Install the rotor. Refer to BRAKE ROTOR -- FRONT in Disc Brakes.
  5. Install the tire and the wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  6. Lower the vehicle.

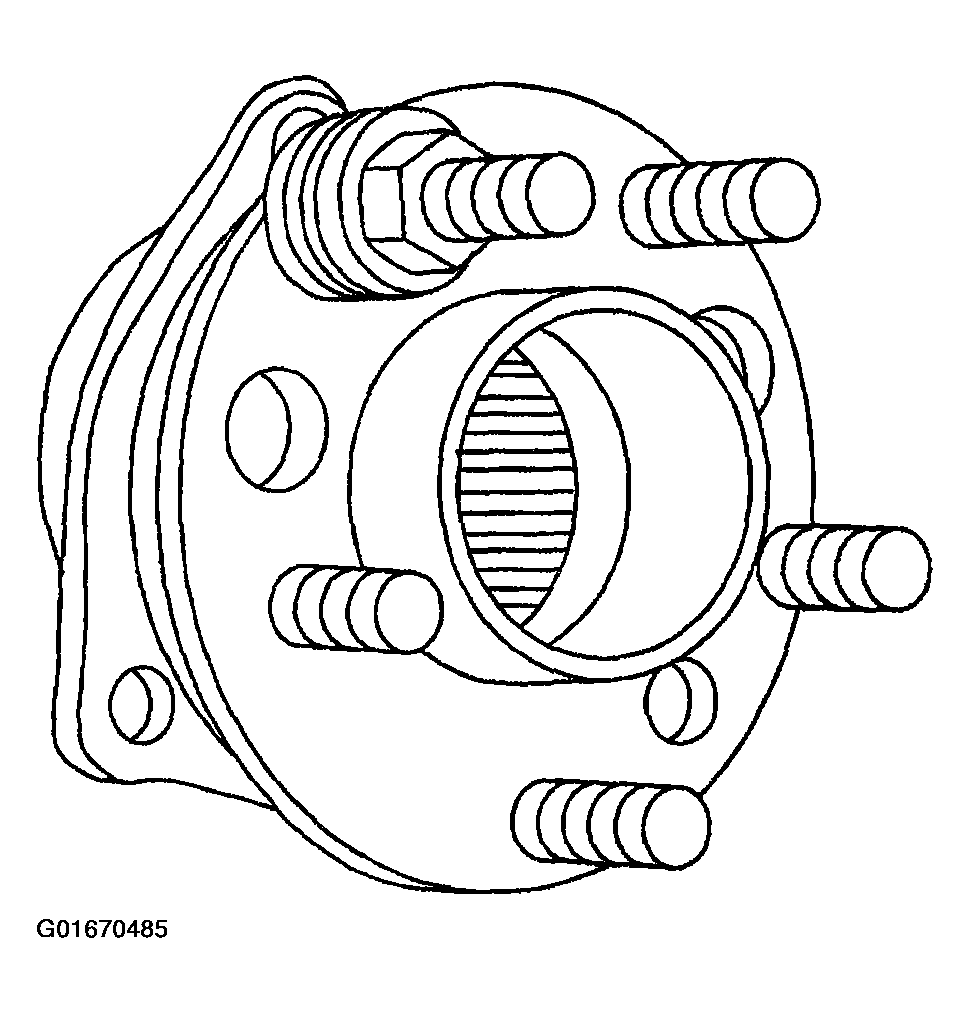

    Fig 1: Installing Wheel Stud To Wheel Hub And Bearing (RWD)
    G01670485Courtesy of GENERAL MOTORS CORP.
