Installation Procedure

  1. Install the upper control arm to the frame.

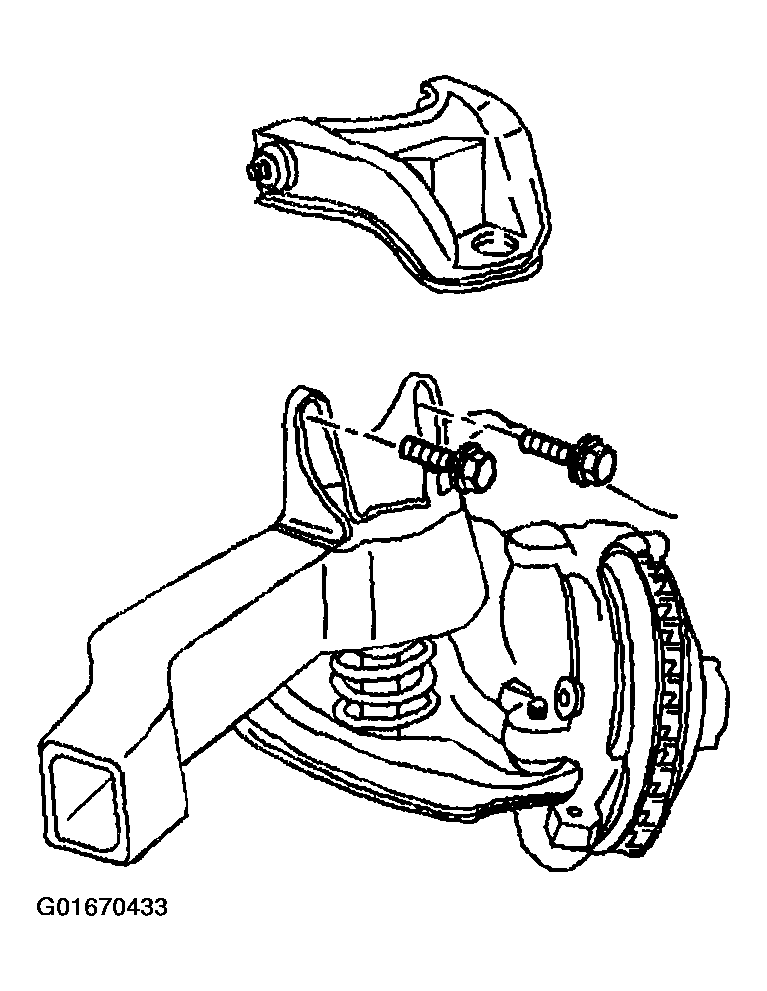

    Fig 1: Installing Upper Control Arm To Frame (RWD)
    G01670433Courtesy of GENERAL MOTORS CORP.
  2. Install the upper control arm retaining bolts.
  3. Install the shims to the original position.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the upper control arm retaining nuts.

    Tighten

    • Tighten the upper control arm retaining nuts with the front suspension loaded.
    • Tighten the upper control arm retaining nuts to 115 N.m (85 lb ft).
  5. Install the upper ball joint stud to the steering knuckle. Refer to Upper Ball Joint Replacement (RWD)  or Upper Ball Joint Replacement (4WD) .
  6. Tighten the upper control arm shaft nuts.

    Tighten

    Tighten the upper control arm shaft nuts to 115 N.m (85 lb ft).

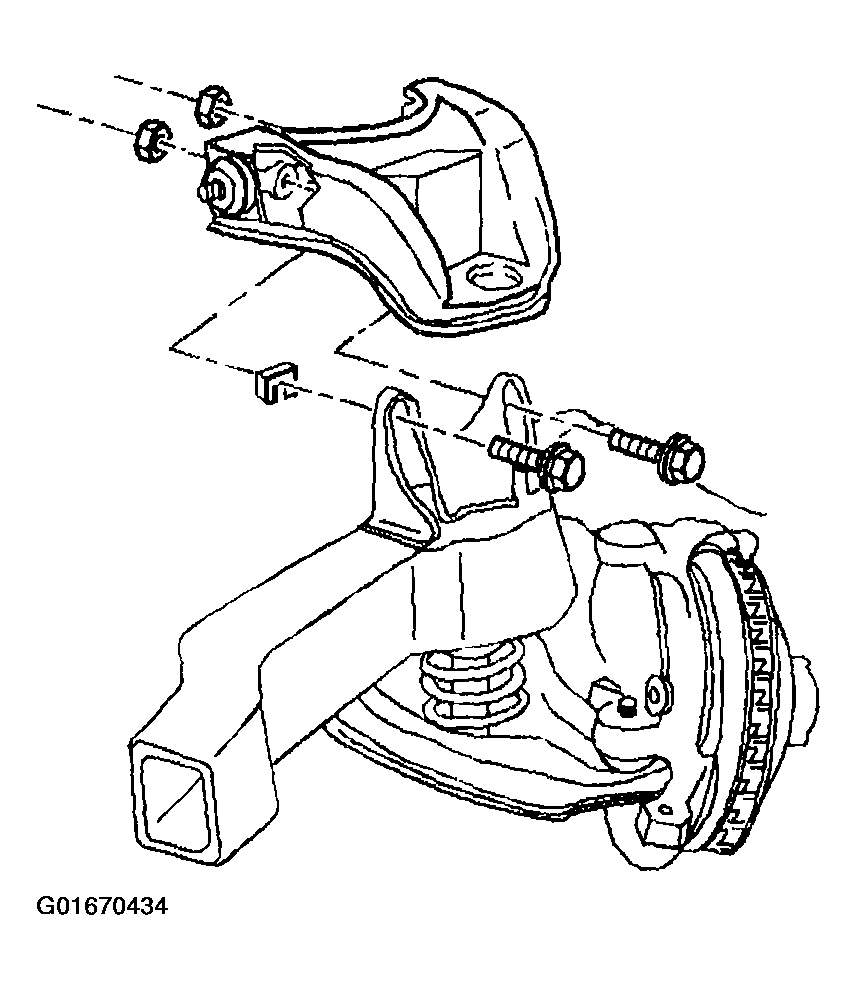

    Fig 2: Install Upper Control Arm Retaining Bolts And Nuts (RWD)
    G01670434Courtesy of GENERAL MOTORS CORP.
  7. Install the ABS wire and the brake hose bracket to the upper control arm.
  8. Install the ABS wire and the brake hose bracket to the upper control arm mounting bolts and nuts.

    Tighten

    Tighten the ABS wire and the brake hose bracket to the upper control arm nuts to 24 N.m (18 lb ft).

  9. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  10. Lower the vehicle.
  11. Check the front wheel alignment. Refer to MEASURING WHEEL ALIGNMENT in Wheel Alignment.

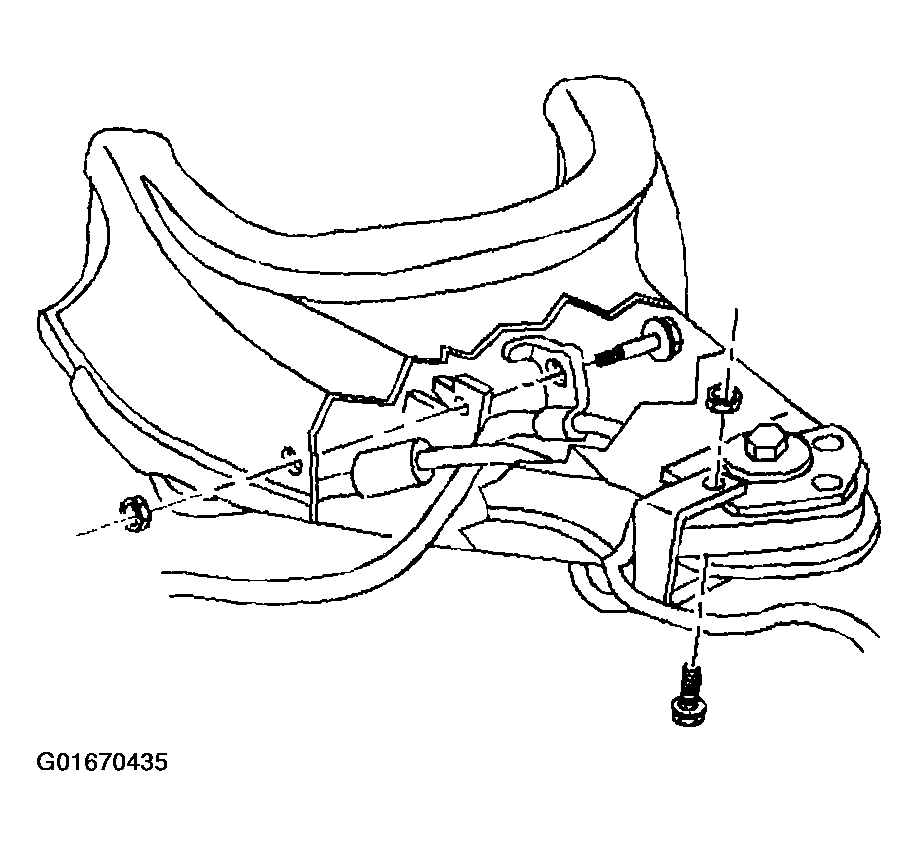

    Fig 3: Installing ABS Wire And Brake Hose Bracket To Upper Control Arm Mounting Bolts And Nuts (RWD)
    G01670435Courtesy of GENERAL MOTORS CORP.
