Removal Procedure

  1. Remove the upper control arm from the vehicle. Refer to Upper Control Arm Replacement (RWD)  or Upper Control Arm Replacement (4WD) .
  2. Install the upper control arm in a vise.
  3. Remove the washers and the nuts from upper control arm shaft.
    Fig 1: Removing Washers And Nuts From Upper Control Arm Shaft (RWD)
    G01670443Courtesy of GENERAL MOTORS CORP.
  4. Remove the upper control arm bushings. Use the J 22269-01  and J 21474-5  .

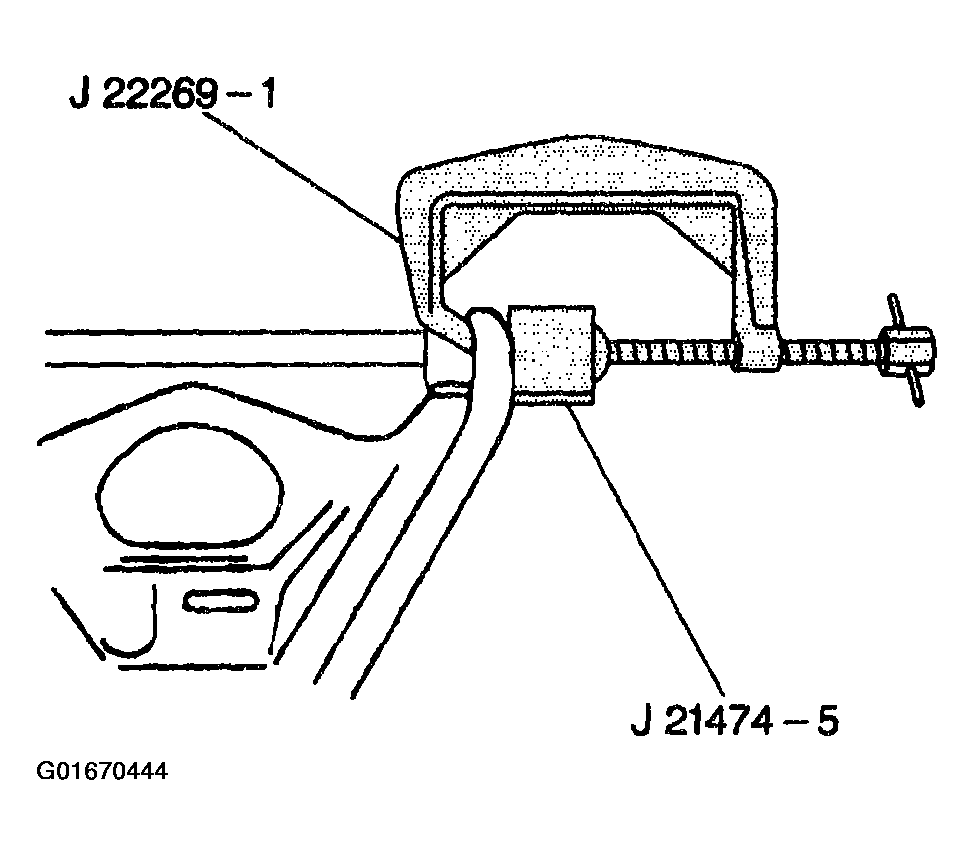

    Fig 2: Removing Upper Control Arm Bushings Using J 22269-01 And J 21474-5 (RWD)
    G01670444Courtesy of GENERAL MOTORS CORP.
  5. Remove the upper control arm shaft from the upper control arm.
    Fig 3: Removing Upper Control Arm Shaft From Upper Control Arm (RWD)
    G01670445Courtesy of GENERAL MOTORS CORP.
