Removal Procedure

  1. Raise and suitably support the vehicle with safety stands. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
    IMPORTANT: When you remove parts from the right side and the left side of the vehicle, keep the parts separated.
  3. Remove the stabilizer shaft links. Refer to Stabilizer Shaft Link Replacement (RWD)  or Stabilizer Shaft Link Replacement (4WD) .
  4. Remove the stabilizer shaft bracket mounting bolts.

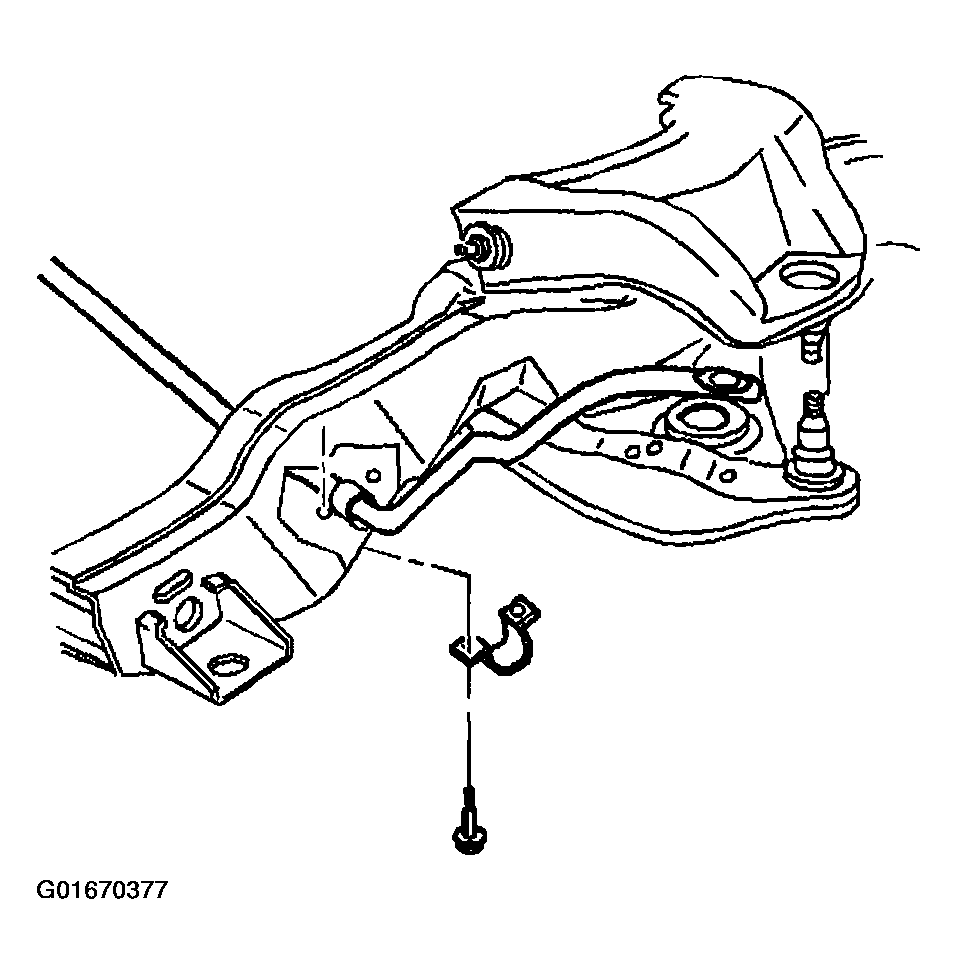

    Fig 1: Removing Stabilizer Shaft Bracket Mounting Bolts (RWD)
    G01670377Courtesy of GENERAL MOTORS CORP.
  5. Remove the stabilizer shaft brackets.
  6. Remove the stabilizer shaft.
  7. Remove stabilizer shaft insulators from stabilizer shaft.
  8. Inspect all of the parts for wear and damage.
