Installation Procedure

  1. Install the stabilizer shaft insulators to the stabilizer shaft with the slits facing the front of the vehicle.
  2. Install the stabilizer shaft.
  3. Install the stabilizer shaft brackets over the stabilizer shaft insulators.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the stabilizer shaft bracket mounting bolts.

    Tighten

    Tighten the stabilizer shaft bracket mounting bolts 36 N.m (26 lb ft).

  5. Install the stabilizer shaft links. Refer to Stabilizer Shaft Link Replacement (RWD)  or Stabilizer Shaft Link Replacement (4WD) .
  6. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.

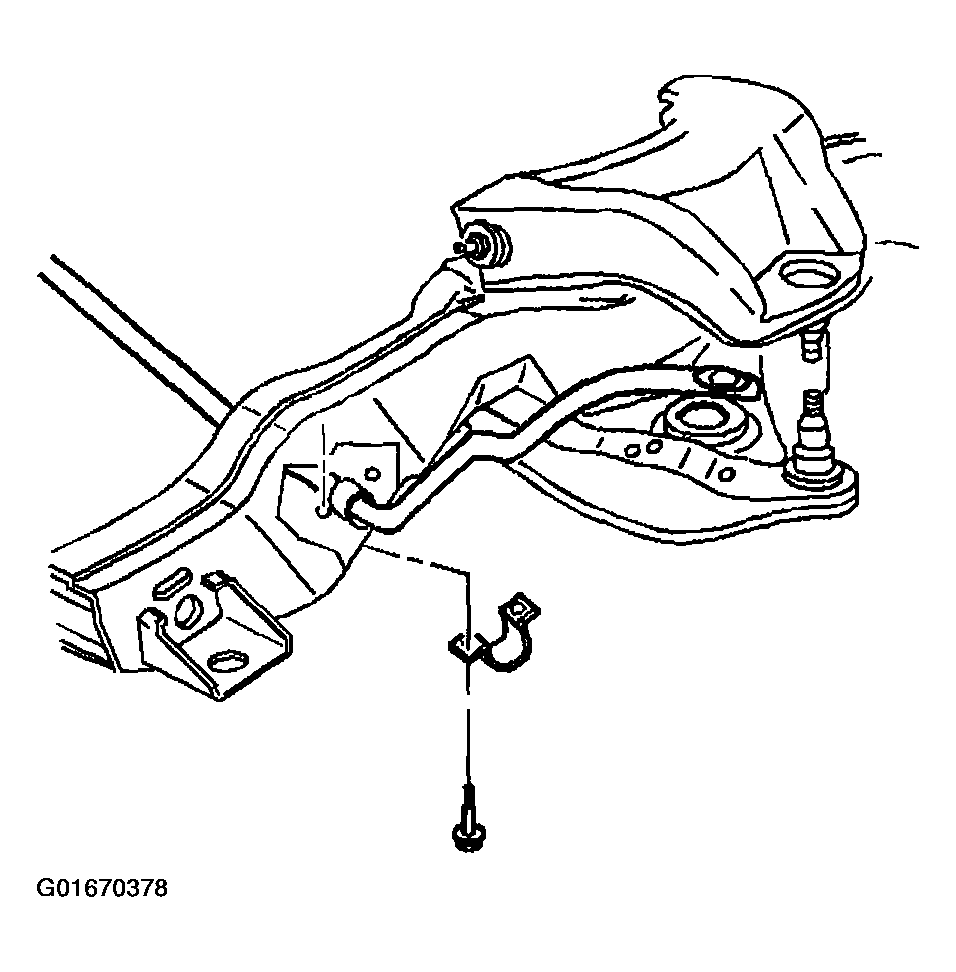

    Fig 1: Installing Stabilizer Shaft Bracket Mounting Bolts (RWD)
    G01670378Courtesy of GENERAL MOTORS CORP.
  7. Lower the vehicle.
