Removal Procedure

  1. Raise and suitably support the vehicle with safety stands. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Remove the steering linkage shield. Refer to STEERING LINKAGE SHIELD REPLACEMENT in Steering Linkage.
    IMPORTANT: Remove the parts from the right front and the left front of the vehicle. Keep the parts separated.
  3. Remove the stabilizer shaft links. Refer to Stabilizer Shaft Link Replacement (RWD)  or Stabilizer Shaft Link Replacement (4WD) .
  4. Remove the stabilizer shaft bracket mounting bolts.
  5. Remove the stabilizer shaft brackets.

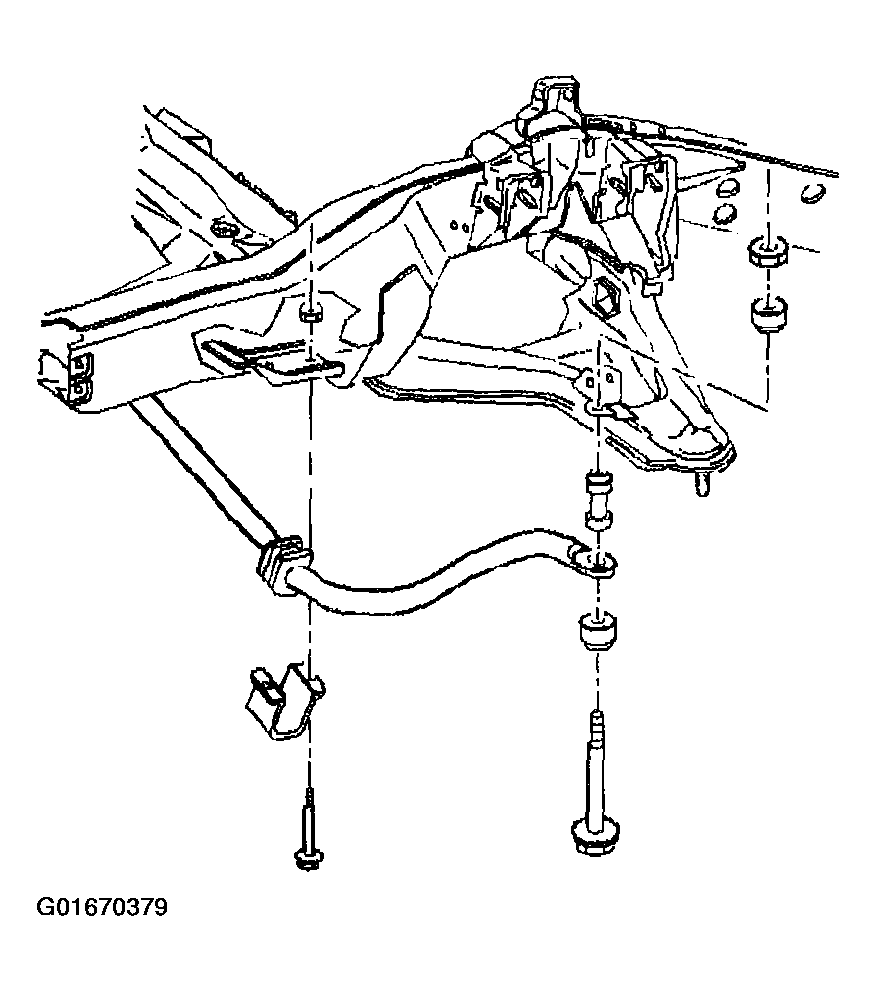

    Fig 1: Removing Stabilizer Shaft Bracket And Mounting Bolts (4WD)
    G01670379Courtesy of GENERAL MOTORS CORP.
  6. Remove the stabilizer shaft.
  7. Remove the stabilizer shaft insulators.
  8. Inspect all of the parts for wear or damage.
