Installation Procedure

  1. Install the stabilizer shaft insulators to the stabilizer shaft. Face the slit in the stabilizer shaft insulator forward.
  2. Install the stabilizer shaft to the frame and to the lower control arm.
  3. Install the stabilizer shaft brackets over the stabilizer shaft insulators.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the stabilizer shaft bracket mounting bolts.

    Tighten

    Tighten the stabilizer shaft bracket mounting bolts to 65 N.m (48 lb ft).

  5. Install the stabilizer shaft links. Refer to Stabilizer Shaft Link Replacement (RWD)  or Stabilizer Shaft Link Replacement (4WD) .

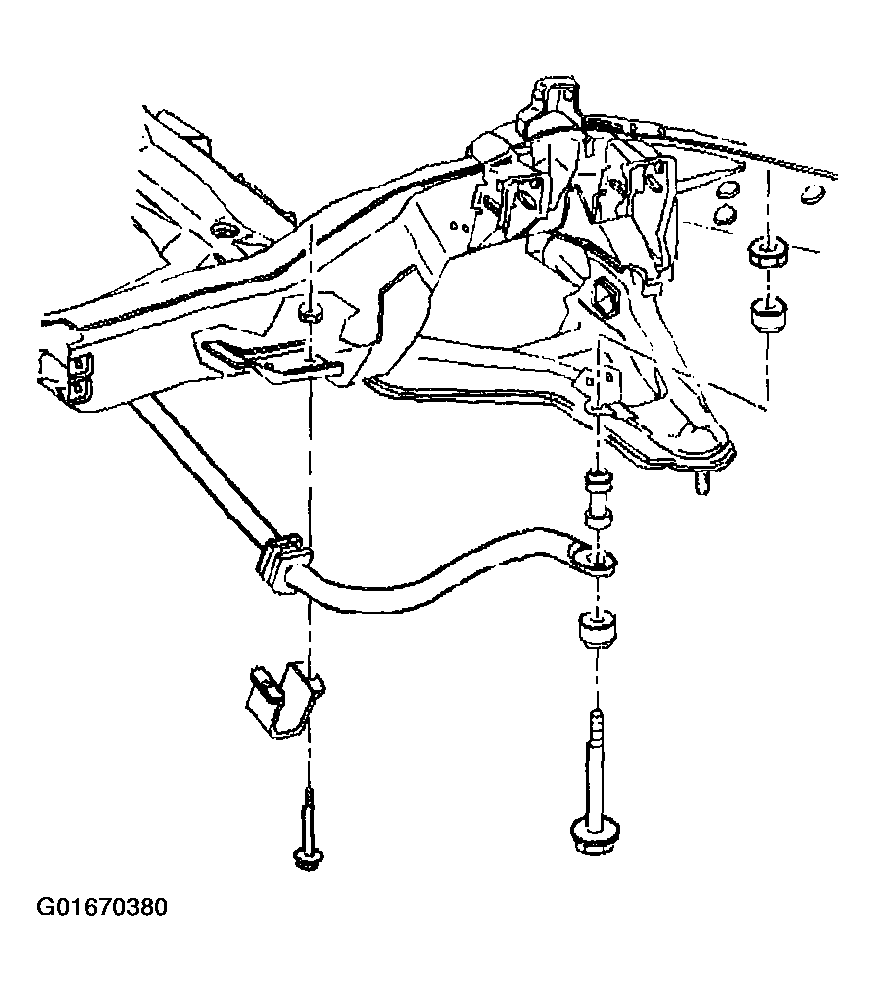

    Fig 1: Installing Stabilizer Shaft Bracket And Mounting Bolts (4WD)
    G01670380Courtesy of GENERAL MOTORS CORP.
  6. Install the steering linkage shield. Refer to STEERING LINKAGE SHIELD REPLACEMENT in Steering Linkage.
  7. Lower the vehicle.
