Removal Procedure

  1. Raise and suitably support the vehicle with safety stands. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Remove the stabilizer shaft link bolt.
  3. Remove the stabilizer shaft link insulator, spacer, and upper retainer.

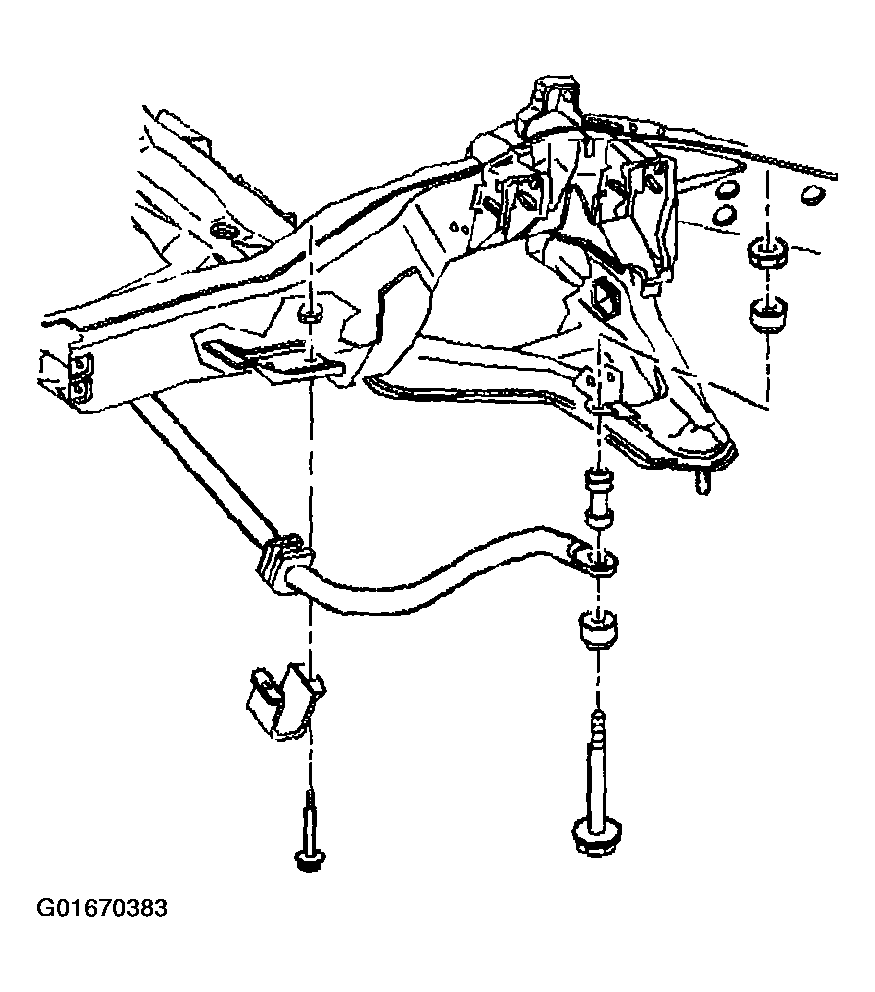

    Fig 1: Removing Stabilizer Shaft Link Insulator, Spacer, And Upper Retainer (4WD)
    G01670383Courtesy of GENERAL MOTORS CORP.
  4. Inspect all of the parts for wear or damage.
