Installation Procedure

  1. Install the stabilizer shaft link insulators to the stabilizer shaft link bolt.
  2. Install the stabilizer shaft link bolt through the stabilizer shaft.
  3. Install the stabilizer shaft link spacer.
  4. Install the stabilizer shaft link bolt through the lower control arm with the parts stacked properly.
  5. Install the stabilizer shaft link upper retainer.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Tighten the stabilizer shaft link bolt.

    Tighten

    Tighten the stabilizer shaft link bolt to 15 N.m (11 lb ft).

  7. Lower the vehicle.

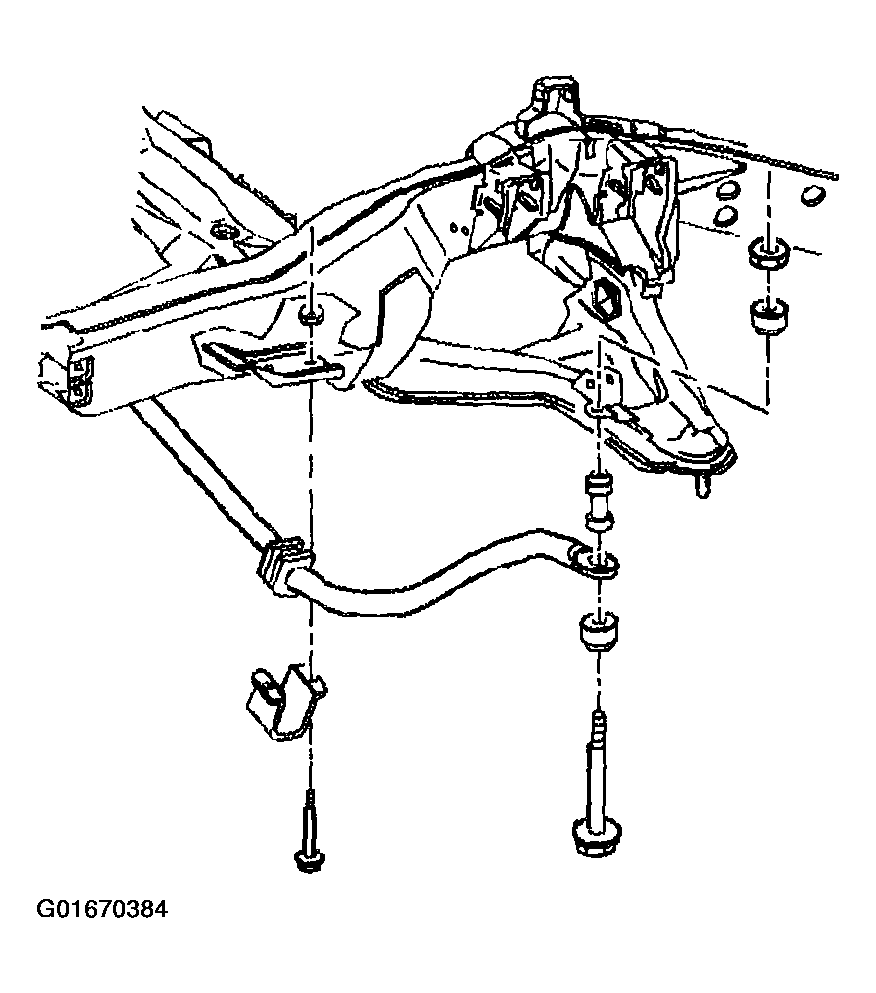

    Fig 1: Installing Stabilizer Shaft Link Insulator, Spacer, And Upper Retainer (4WD)
    G01670384Courtesy of GENERAL MOTORS CORP.
