Removal Procedure

  1. Raise and suitably support the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Remove the stabilizer shaft bracket mounting bolts.
  3. Remove the stabilizer shaft bracket.
  4. Lower the stabilizer shaft and remove the stabilizer shaft insulator.

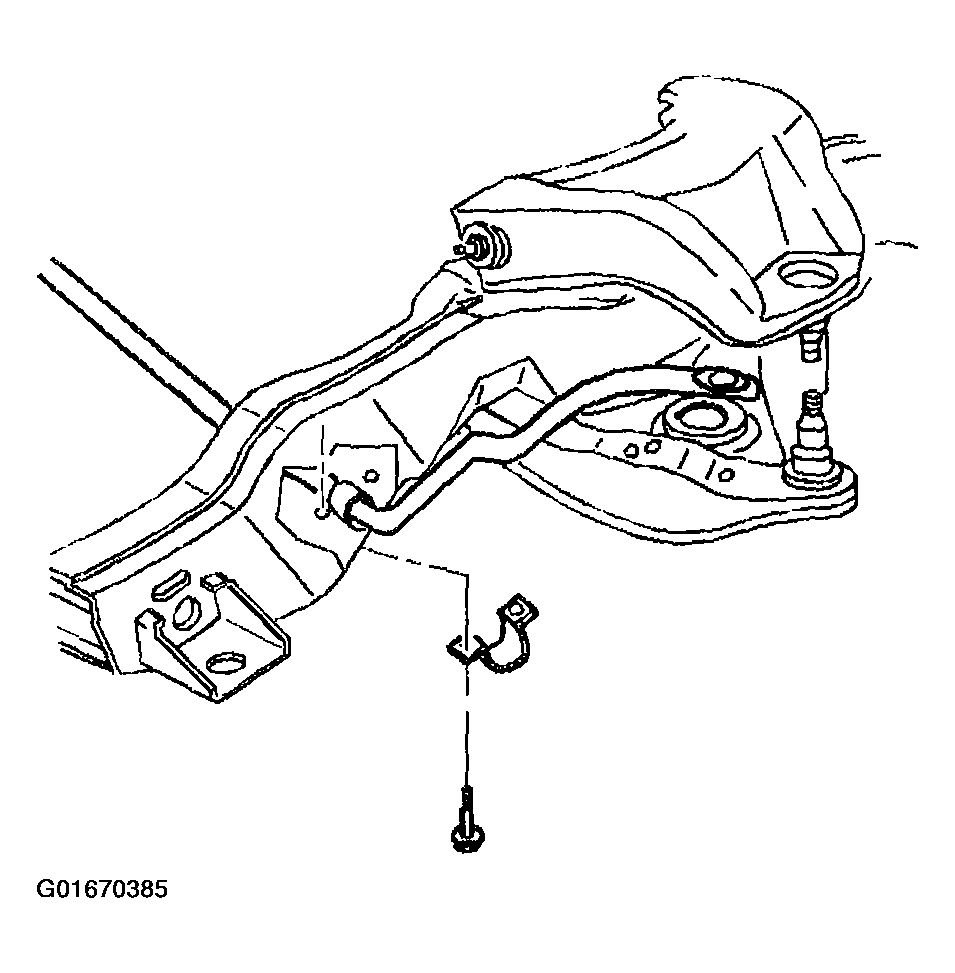

    Fig 1: Removing Stabilizer Shaft Bracket Mounting Bolts (4WD)
    G01670385Courtesy of GENERAL MOTORS CORP.
